4.5 Actuator Selection Screen
This is accessed through the MODE button.
To adjust the seat position the actuator screen must be
visible.
Depress the Mode Button to scroll through the Mode screens

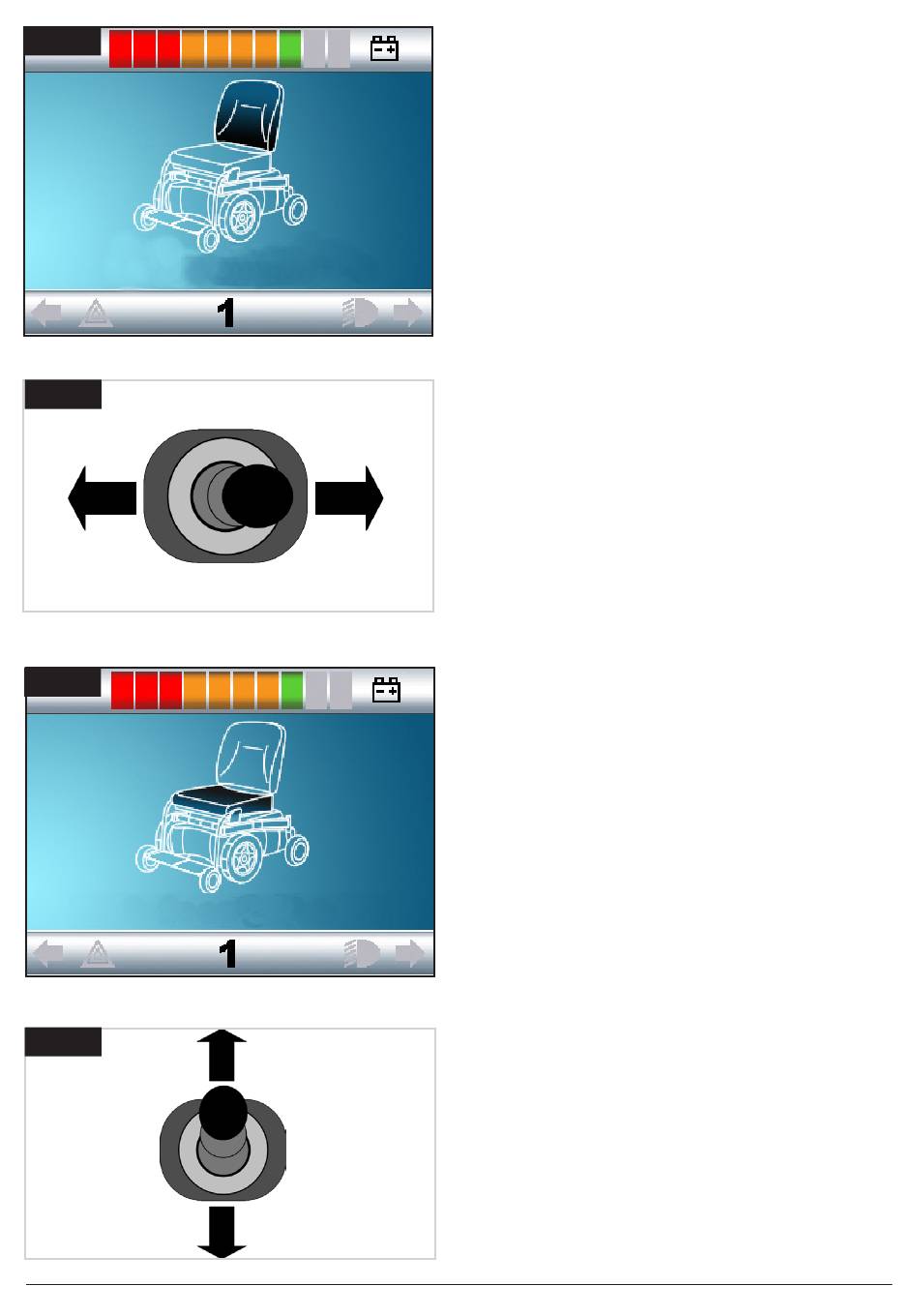

until you reach the actuator screen, (Fig 4.30).
Actuator adjustment is achieved as follows.
• Move the Joystick sideways to the left or right to select
the desired axis, (Fig 4.31 ). The axis is indicated by the
section of the wheelchair that is highlighted, (Fig 4.32).
• Move the joystick forwards or backwards to move the
selected actuator correspondingly, (Fig 4.33).
• Repeat these steps for each actuator that requires
adjustment.
• To drive again, depress the Mode button until the Drive
screen is reached or, in the case of the LED joystick
module, until the Speed Indicator returns to its normal state.
