Fig.4.24
PM
B
Low Battery
C
Fig.4.25
PM
Low Battery
16
A
2C00
2C00

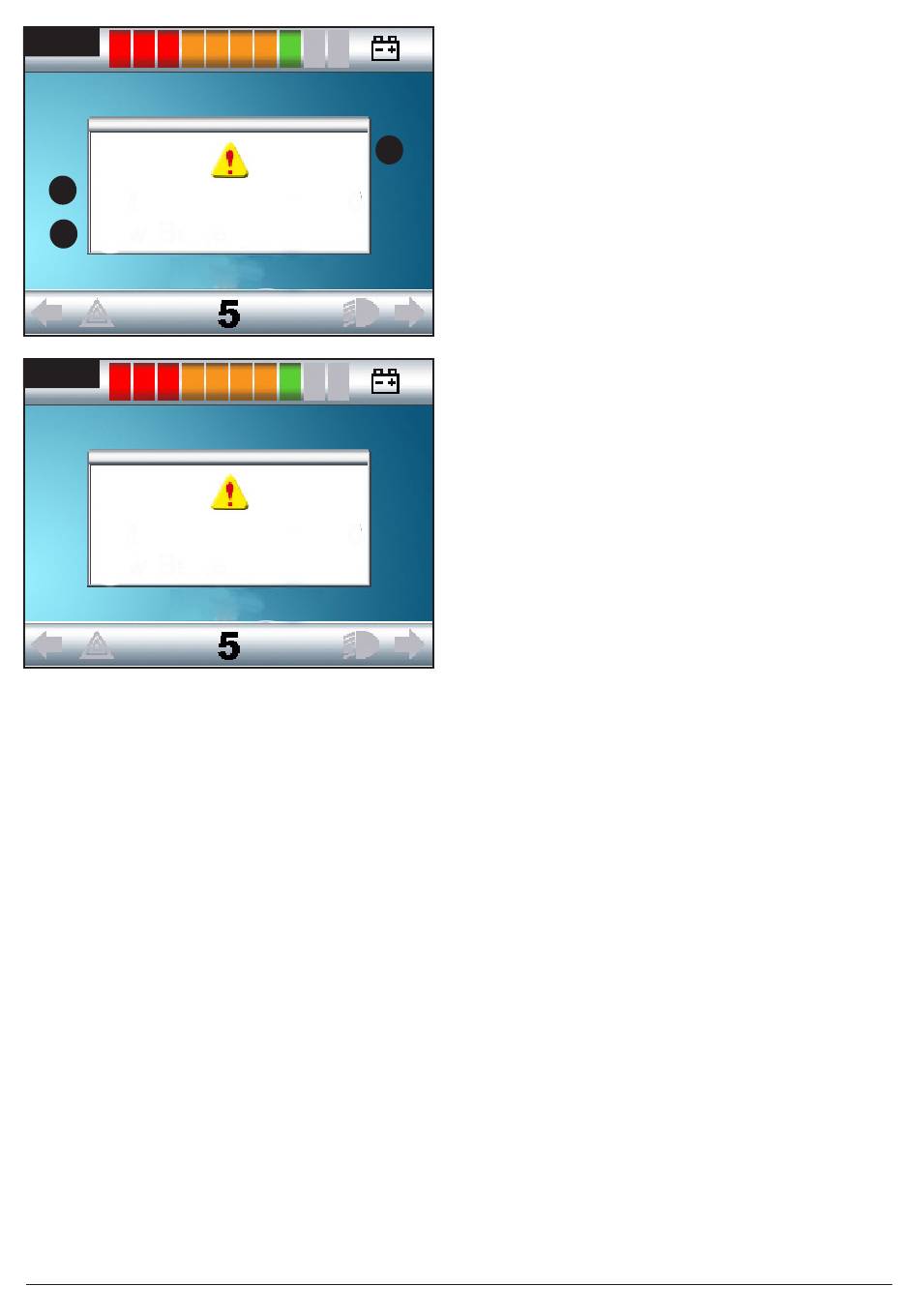

4.3 Main Screen Area: Diagnostics (Fig 4.24)
When the control system safety circuits have operated and
the control system has been prevented from moving the
wheelchair, a diagnostics screen will be displayed.
This indicates a system trip, i.e. the R-net has detected a
problem somewhere in the wheelchair's electrical system.
If the error is in a non-active module, for example in the
Intelligent Seating Module but with a drive Profile selected,
then drive will still be possible However, the diagnostic screen
will appear intermittently.
Screen Area Fig.4.24
A. Trip Code
The 4 digit code displayed gives the exact trip that has been
recorded.
B. Identified Module
This identifies which module of the control system has
registered the problem, such as:
• PM
= Power Module
• JSM = Joystick Module
• ISM
= Intelligent Seating/Lighting Module
C. Trip Text
The Trip Text gives a brief description of the trip type.
Diagnostic Procedure Fig 4.25 (example)
Identified Module, (PM):
Trip Text:
Trip Code:
This means the battery needs charging or there is a bad
connection to the battery.
Check the connections to the battery. If the connections are
good, try charging the battery.
Please follow this procedure:
• Read and note the Trip Text displayed, the identified module
and the Trip Code.
• Switch off the control system.
• Make sure that all connectors on the listed Module
and the wheelchair are mated securely.
• Check the condition of the battery.
• Note the Trip Text description.
• Switch on the control system again and try to drive
the wheelchair. If the safety circuits operate again, switch off
and do not try to use the wheelchair.
• Contact your service agent.
R-Net Control System | Rev. H | English
= The Power Module
= Low Battery
= 2C00
