R-Net Control System | Rev. H | English

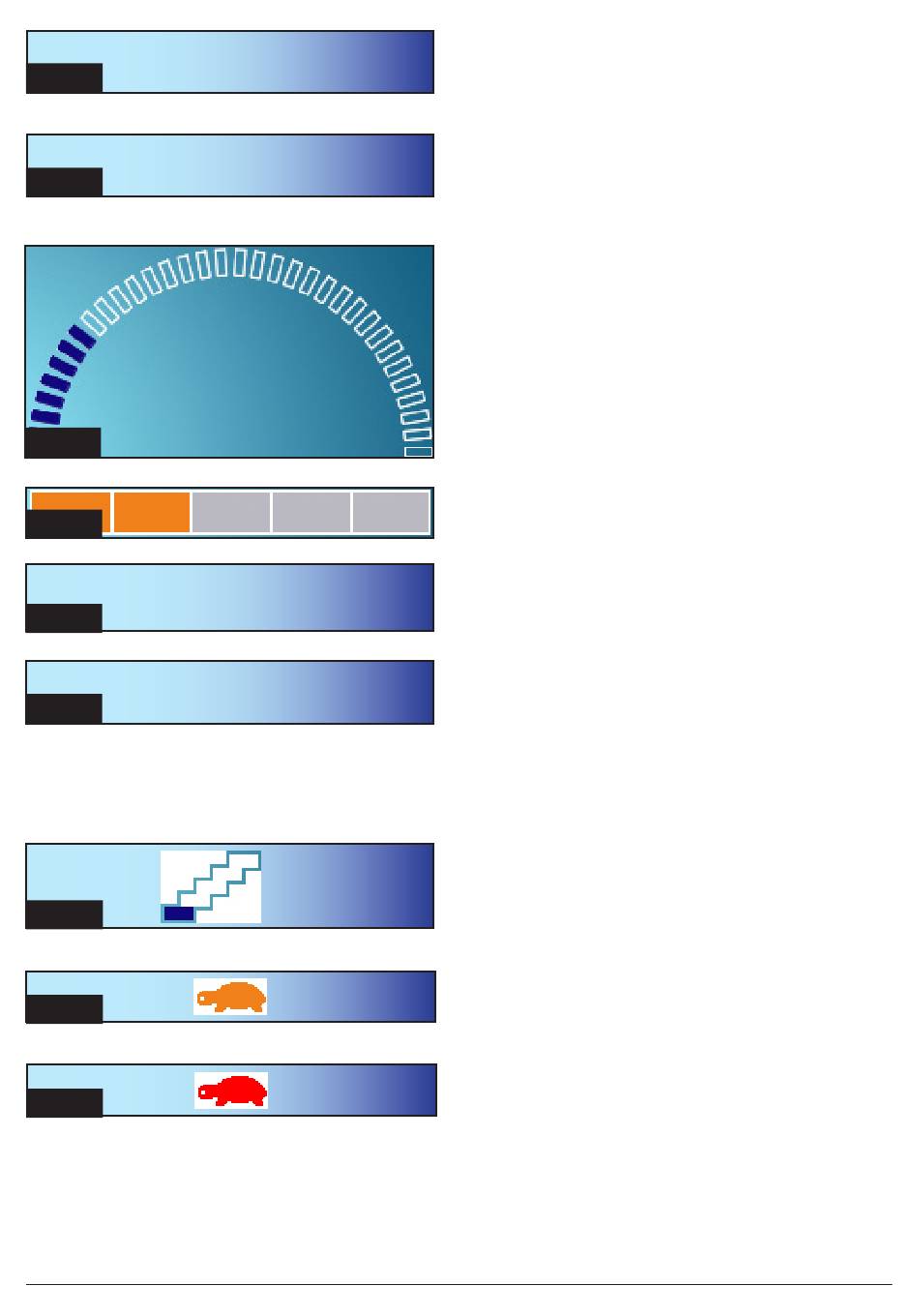

4.1 Main Screen Area: The Drive Screen
Profile Name (Fig 4.6)
This is text string that displays the name of the currently
selected Profile.
Clock (Fig 4.7)
This displays the current time in a numeric format.
The clock is user adjustable. Adjustable options are:
• Visibility, whether the clock is displayed on screen.
• The display format, 12 or 24 hour.
• The time, the user can adjust the time.
These adjustments are made within the Settings Menu. Refer
to Chapter 7.0 for details.
Speed Display (Fig 4.8)
This gives a proportional display of the wheelchair's speed.
The Arc begins at 0% and has a maximum 100%.
Maximum Speed Indicator (Fig 4.9)
This displays the current maximum speed setting.
Digital Speed Display (Fig 4.10)
This displays the actual speed of the wheelchair derived from
the motors. The display can be set to mph or km/h.
Odometer (Fig 4.11)
This displays the distance driven by the wheelchair. The
display can show either the total distance or the trip distance,
in miles or kilometre. The Settings Menu contains an option
that sets whether the trip or total distance is displayed, as well
as a facility to reset the trip distance.
If latched operation is active, then that symbol will take priority
over the odometer.
Latched (Fig 4.12)
When the control system is operating in a latched condition this
symbol will be displayed.
Inhibit (Fig 4.13 & 4.14)
If the speed of the wheelchair is being limited, for example, by
a raised seat, then this orange symbol will be displayed.
If the wheelchair is being inhibited from driving, then this red
symbol will be flashing.
13
