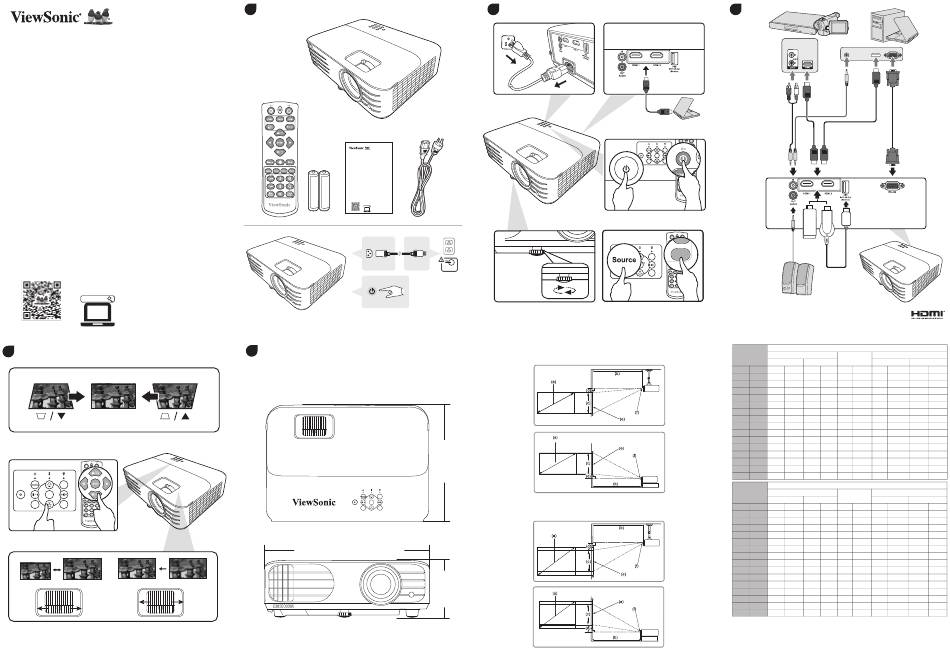

ViewSonic PX701HD Guide De Démarrage Rapide

PX701HD
PX701HDH
DLP Projector
Quick Start Guide Przewodnik Szybki start
快速安装说明 Guia de Início Rápido
快速入門指南 Ghid de pornire rapidă
빠른 시작 가이드 краткое руководство по
クイックスタートガイド
началу работы
Ръководство за бърз старт Vodič za brzi početak
Vodič za brzo pokretanje Príručka so stručným návodom
Úvodní příručka Vodnik za hitri začetek
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide Hızlı Başlangıç Kılavuzu
Schnellstarthandbuch короткий посібник користувача
Οδηγός γρήγορης εκκίνησης Panduan Mulai Cepat
Első lépések ‫دﻟﯾل اﻟﺑدء اﻟﺳرﯾﻊ‬
Guida introduttiva
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
ViewSonic Projector
4
On Off
COMP HDMI 1 HDMI 2
Auto
Source
Sync
MENU
BLANK
EXIT
ENTER
COLOR
SOURCE
MODE
Aspect Freeze Pattern Blank
PgUp
PgDn
Color
Network
Mode
1
DLP Projector
Quick Start Guide Przewodnik Szybki start
快速安装说明 Guia de Início Rápido
快速入門指南 Ghid de pornire rapidă
빠른 시작 가이드 краткое руководство по
クイックスタートガイド началу работы
Ръководство за бърз старт Vodič za brzi početak
Vodič za brzo pokretanje Príručka so stručným návodom
Úvodní příručka Vodnik za hitri začetek
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide Hızlı Başlangıç Kılavuzu
Schnellstarthandbuch короткий посібник користувача
Οδηγός γρήγορης εκκίνησης Panduan Mulai Cepat
Első lépések ‫دﻟﯾل اﻟﺑدء اﻟﺳرﯾﻊ‬
Guida introduttiva
http://vsweb.us
Download Link
ViewSonic Projector http://vsweb.us/q/dn.php
5 Screws: M4 x 8 (Max. L = 8 mm)
Unit: mm
MENU BLANK
EXIT
ENTER
COLOR
SOURCE
MODE
312 mm
2
1 2
3
5
4
100-240 Vac
50/60 Hz
• 16:9 image on a 16:9 screen
222 mm
• 16:9 image on a 4:3 screen
108 mm
3
MENU
BLANK
EXIT
ENTER
SOURCE COLOR
MODE
On Off
COMP HDMI 1 HDMI 2
Auto
Source
Sync
MENU
BLANK
EXIT
ENTER
COLOR
SOURCE MODE
Aspect Freeze Pattern Blank
(a) Screen Size (b) Projection distance
m i . n
PgUp
inch mm inch mm
60 1524 79 1996
PgDn 70 1778 92 2328
80 2032 105 2661
90 2286 118 2994
100 2540 131 3326
110 2794 144 3659
Color
Network
Mode
120 3048 157 3992
130 3302 170 4324
140 3556 183 4657
150 3810 196 4989
160 4064 210 5322
170 4318 223 5655
180 4572 236 5987
190 4826 249 6320
200 5080 262 6653
(a) Screen Size (b) Projection distance
m i . n
inch mm inch mm
60
1524 72 1832
70 1778 84 2137
80 2032
96 2443
90
2286 108 2748
100
2540 120 3053
110
2794 132 3358
120
3048 144 3664
130
3302 156 3969
140
3556 168 4274
150
3810 180 4580
160
4064 192 4885
170
4318 204 5190
180
4572 216 5496
190
4826 228 5801
200
5080 240 6106
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before
you permanently install it, so as to make allowance for this projector's optical
characteristics. This will help you determine the exact mounting position so that it best
suits your installation location.
16:9 image on a 16:9 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
inch mm inch mm inch mm inch mm
86 2195 29 747 1.5 37.4 1.5
37
101 2561
34 872 1.7 43.6 1.7 44
115 2927 39 996 2.0 49.8 2.0 50
130 3293 44 1121 2.2 56.0 2.2 56
144 3659 49 1245 2.5 62.3 2.5 62
158 4025 54 1370 2.7 68.5 2.7 68
173 4391 59 1494 2.9 74.7 2.9 75
187 4757 64 1619 3.2 80.9 3.2 81
202 5123 69 1743 3.4 87.2 3.4 87
216 5488 74 1868 3.7 93.4 3.7 93
230 5854 78 1992 3.9 99.6 3.9 100
245 6220 83 2117 4.2 105.8 4.2 106
259 6586 88 2241 4.4
112.1 4.4 112
274 6952 93 2366 4.7 118.3 4.7 118
288 7318 98 2491 4.9 124.5 4.9 125
16:9 image on a 4:3 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
inch mm inch mm inch mm inch mm
79 2015 27 686 1.4 34 1.4
34
93 2351 32
800 1.6 40 1.6 40
106 2687 36 914 1.8 46 1.8 46
119 3023 41 1029 2.0 51 2.0 51
132 3358 45 1143 2.3 57 2.3 57
145 3694 50 1257 2.5 63 2.5 63
159 4030 54 1372 2.7 69 2.7 69
172 4366 59 1486 2.9 74 2.9 74
185 4702 63 1600 3.2 80 3.2 80
198 5038 68 1715 3.4 86 3.4 86
212 5374 72 1829 3.6 91 3.6 91
225 5709 77 1943 3.8 97 3.8 97
238 6045 81 2057 4.1 103
4.1 103
251
6381 86 2172 4.3 109 4.3 109
264 6717 90 2286 4.5 114 4.5 114
