ViewSonic PX703HD Guide De Démarrage Rapide

PX703HD
PX703HDH
DLP Projector
Quick Start Guide Przewodnik Szybki start
快速安装说明 Guia de Início Rápido
快速入門指南 Ghid de pornire rapidă
빠른 시작 가이드 краткое руководство по
クイックスタートガイド
началу работы
Ръководство за бърз старт Vodič za brzi početak
Vodič za brzo pokretanje Príručka so stručným návodom
Úvodní příručka Vodnik za hitri začetek
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide Hızlı Başlangıç Kılavuzu
Schnellstarthandbuch короткий посібник користувача
Οδηγός γρήγορης εκκίνησης Panduan Mulai Cepat
Első lépések ‫دﻟﯾل اﻟﺑدء اﻟﺳرﯾﻊ‬
Guida introduttiva
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php

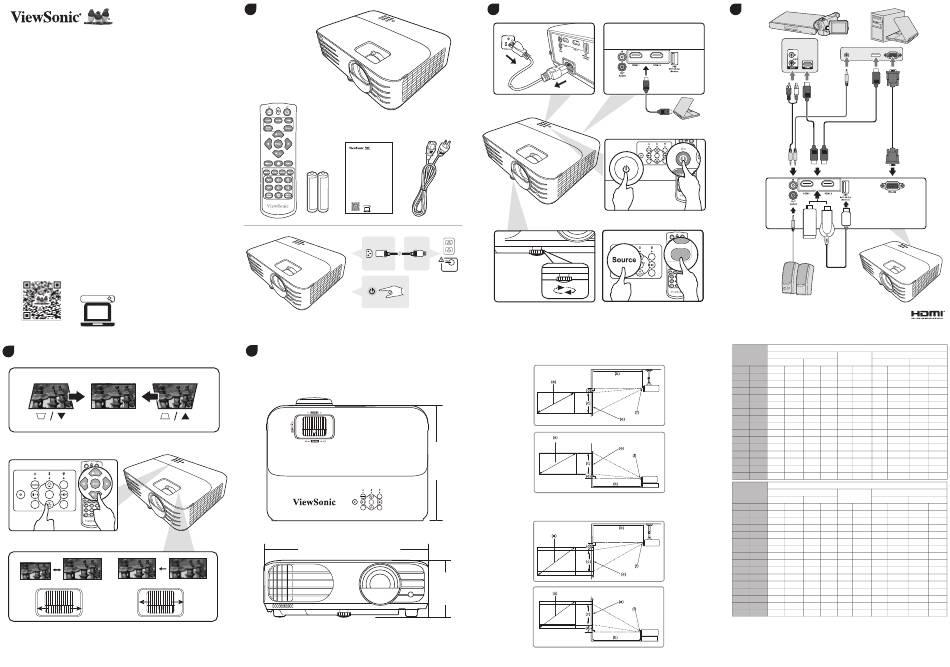

ViewSonic Projector
4
On Off
COMP HDMI 1 HDMI 2
Auto
Source
Sync
MENU
BLANK
EXIT
ENTER
COLOR
SOURCE
MODE
Aspect Freeze Pattern Blank
PgUp
PgDn
Color
Network
Mode
1
DLP Projector
Quick Start Guide Przewodnik Szybki start
快速安装说明 Guia de Início Rápido
快速入門指南 Ghid de pornire rapidă
빠른 시작 가이드 краткое руководство по
クイックスタートガイド началу работы
Ръководство за бърз старт Vodič za brzi početak
Vodič za brzo pokretanje Príručka so stručným návodom
Úvodní příručka Vodnik za hitri začetek
Aan de slag Guía de inicio rápido
Pika-aloitusopas Snabbstartsguide
Guide de démarrage rapide Hızlı Başlangıç Kılavuzu
Schnellstarthandbuch короткий посібник користувача
Οδηγός γρήγορης εκκίνησης Panduan Mulai Cepat
Első lépések ‫دﻟﯾل اﻟﺑدء اﻟﺳرﯾﻊ‬
Guida introduttiva
http://vsweb.us
Download Link
ViewSonic Projector http://vsweb.us/q/dn.php
5 Screws: M4 x 8 (Max. L = 8 mm)
Unit: mm
MENU BLANK
EXIT
ENTER
COLOR
SOURCE MODE
312 mm
2
1 2
3
5
4
100-240 Vac
50/60 Hz
• 16:9 image on a 16:9 screen
222 mm
• 16:9 image on a 4:3 screen
108 mm
3
MENU
BLANK
EXIT
ENTER
SOURCE COLOR
MODE
On Off
COMP HDMI 1 HDMI 2
Auto
Source
Sync
MENU
BLANK
EXIT
ENTER
COLOR
SOURCE MODE
Aspect Freeze Pattern Blank
(a) Screen Size (b) Projection distance
m i . n
PgUp
inch mm inch mm
60 1524 59 1491
PgDn 70 1778 68 1739
80 2032 78 1987
90 2286 88 2236
100 2540 98 2484
110 2794 108 2733
Color
Network
Mode
120 3048 117 2981
130 3302 127 3229
140 3556 137 3478
150 3810 147 3726
160 4064 156 3975
170 4318 166 4223
180 4572 176 4472
190 4826
186 4720
200 5080 196 4968
(a) Screen Size (b) Projection distance
m i . n
inch mm inch mm
60 1524 54 1368
70 1778 63 1596
80 2032
72 1824
90 2286
81 2052
100
2540 90 2280
110 2794 99 2508
120 3048 108 2736
130 3302 117 2964
140 3556 126 3192
150 3810 135 3420
160 4064 144 3648
170 4318 153 3876
180 4572 162 4104
190 4826 171 4332
200 5080
180 4560
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before
you permanently install it, so as to make allowance for this projector's optical
characteristics. This will help you determine the exact mounting position so that it best
suits your installation location.
16:9 image on a 16:9 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
inch mm inch mm inch mm inch mm
76 1938 29 747 1.5
37.4 1.5 37
89 2261 34 872 1.7 43.6 1.7 44
102 2584 39 996 2.0 49.8 2.0 50
114 2907 44 1121 2.2 56.0 2.2 56
127 3229 49 1245 2.5 62.3 2.5 62
140 3552 54 1370 2.7 68.5 2.7 68
153 3875 59 1494 2.9 74.7 2.9 75
165 4198 64 1619 3.2 80.9 3.2 81
178 4521 69 1743 3.4 87.2 3.4 87
191 4844 74 1868 3.7 93.4 3.7 93
203 5167 78 1992 3.9 99.6 3.9 100
216 5490 83 2117 4.2 105.8 4.2 106
229 5813 88
2241 4.4 112.1 4.4 112
242 6136 93 2366 4.7 118.3 4.7 118
254 6459 98 2491 4.9 124.5 4.9 125
16:9 image on a 4:3 Screen
(d) Vertical offset
(c) Image
height
m a . x m i . n m a . x
inch mm inch mm inch mm inch mm
70 1779 27 686 1.4 34
1.4 34
82 2075
32 800 1.6 40 1.6 40
93 2371 36 914 1.8 46 1.8 46
105 2668 41 1029 2.0 51 2.0 51
117 2964 45 1143 2.3 57 2.3 57
128 3261 50 1257 2.5 63 2.5 63
140 3557 54 1372 2.7 69 2.7 69
152 3854 59 1486 2.9 74 2.9 74
163 4150 63 1600 3.2 80 3.2 80
175 4446 68 1715 3.4 86 3.4 86
187 4743 72 1829 3.6 91 3.6 91
198 5039 77 1943 3.8 97 3.8 97
210 5336 81 2057 4.1
103 4.1 103
222 5632 86 2172 4.3 109 4.3 109
233 5929 90 2286 4.5 114 4.5 114
