Installation instructions, for professionals only

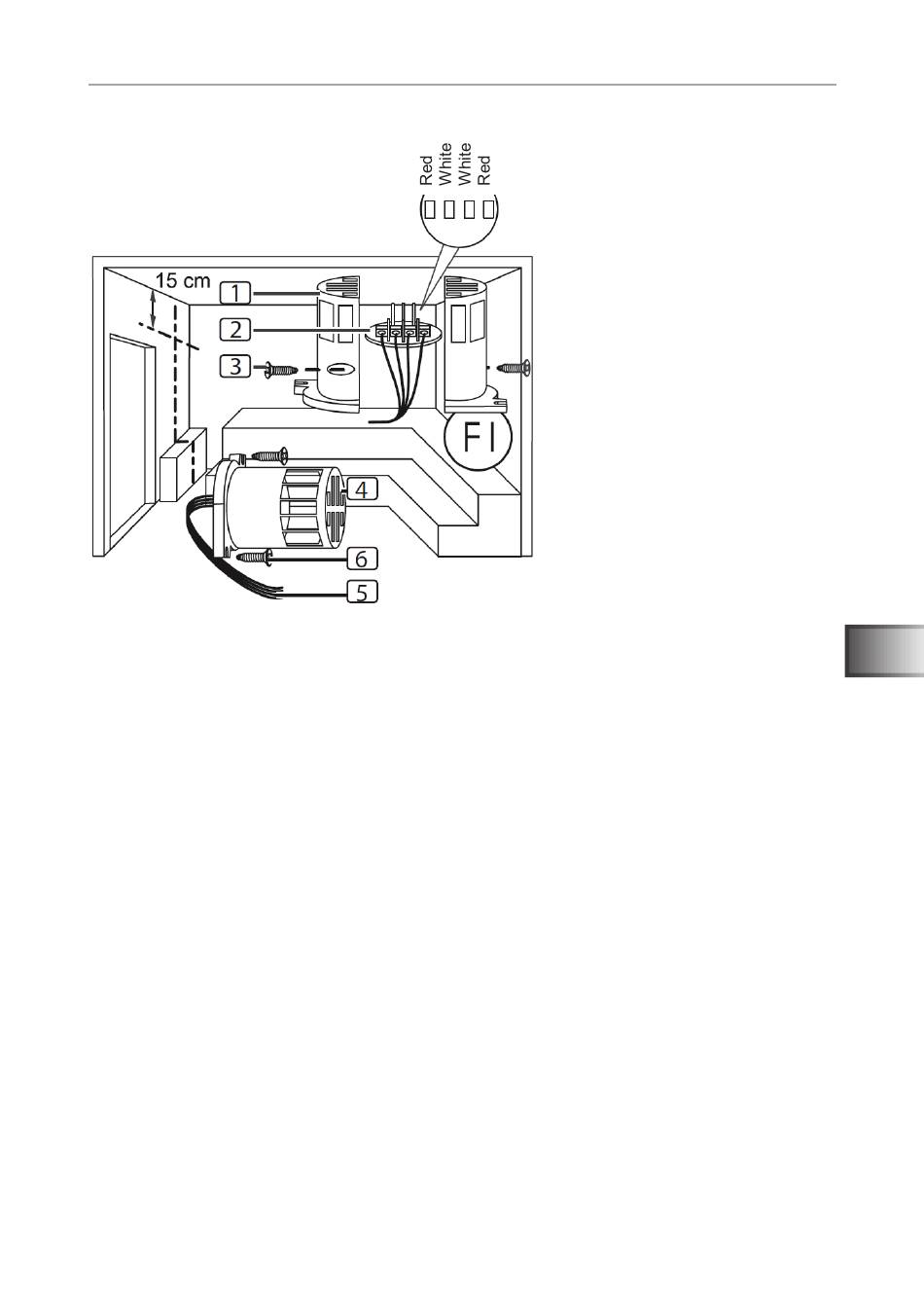

Fig. 2
4.4. Installing bench sensor F2
The bench sensor must be installed on the wall of the sauna room, above the
rear bench seat. An clearance of approx. 15 cm to the roof of the sauna room
must be maintained.
To install the bench sensor, perform the following steps:
1. Lay the two 2-pin bench sensor wires in the wall of the sauna room,
leading them to the bench sensor installation location and affix the
bench sensor wires using wire clips.
2. Pull the two half-shells of the bench sensor apart.
3. Connect the two connectors for the bench sensor wire to the two middle
terminals on the connection panel.
4. Place the connection panel crossways in the bench sensor half-shells.
5. Place the two half-shells together and screw them together using the
two Phillips-head screws (9 mm).
6. Check whether the bench sensor has been securely closed.
7. Install the bench sensor on the wall of the sauna room using the two
wood screws enclosed (16 mm). Maintain an clearance of 15 cm to
the roof of the sauna room.
Heater sensor half-shells
1
Connection panel
2
Phillips-head screws (9 mm)
3
Heater sensor
4
Heater sensor wires
5
Wood screws (16 mm)
6
