DC Wiring (cont'd)
For Skid Mounted Tanks
1.
Pass the electrical wires to the power source, supporting the wires as necessary and
protecting them from sharp edges, heat and anything that could damage the wires.
2.
Attach one end of the fuse holder to the red pump wire, as close to the battery /
power source as possible. Make a solid electrical connection to the positive
terminal of the power source with the other end of the fuse holder. Make a solid
connection with the black pump wire to the negative terminal of the power source.
3.
Check all connections to make sure they are connected per instructions and all
electrical codes. Install the 30 amp fuse (20 amp fuse in 24 VDC installations) in the
fuse holder. The installation is now complete.
Junction Box
8

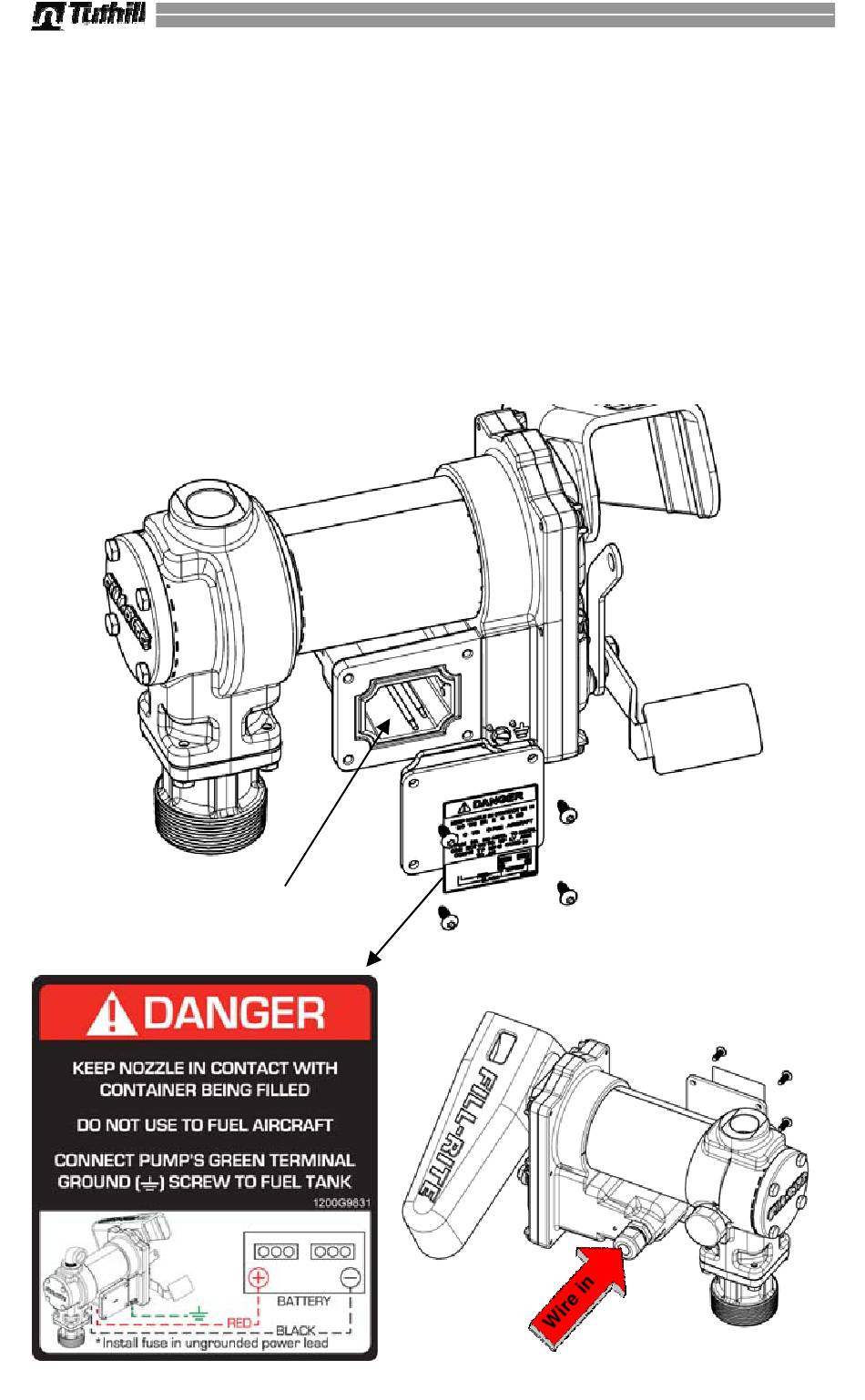

Figure 4
