User's Manual

4.2.3 Alternative through desk mounting

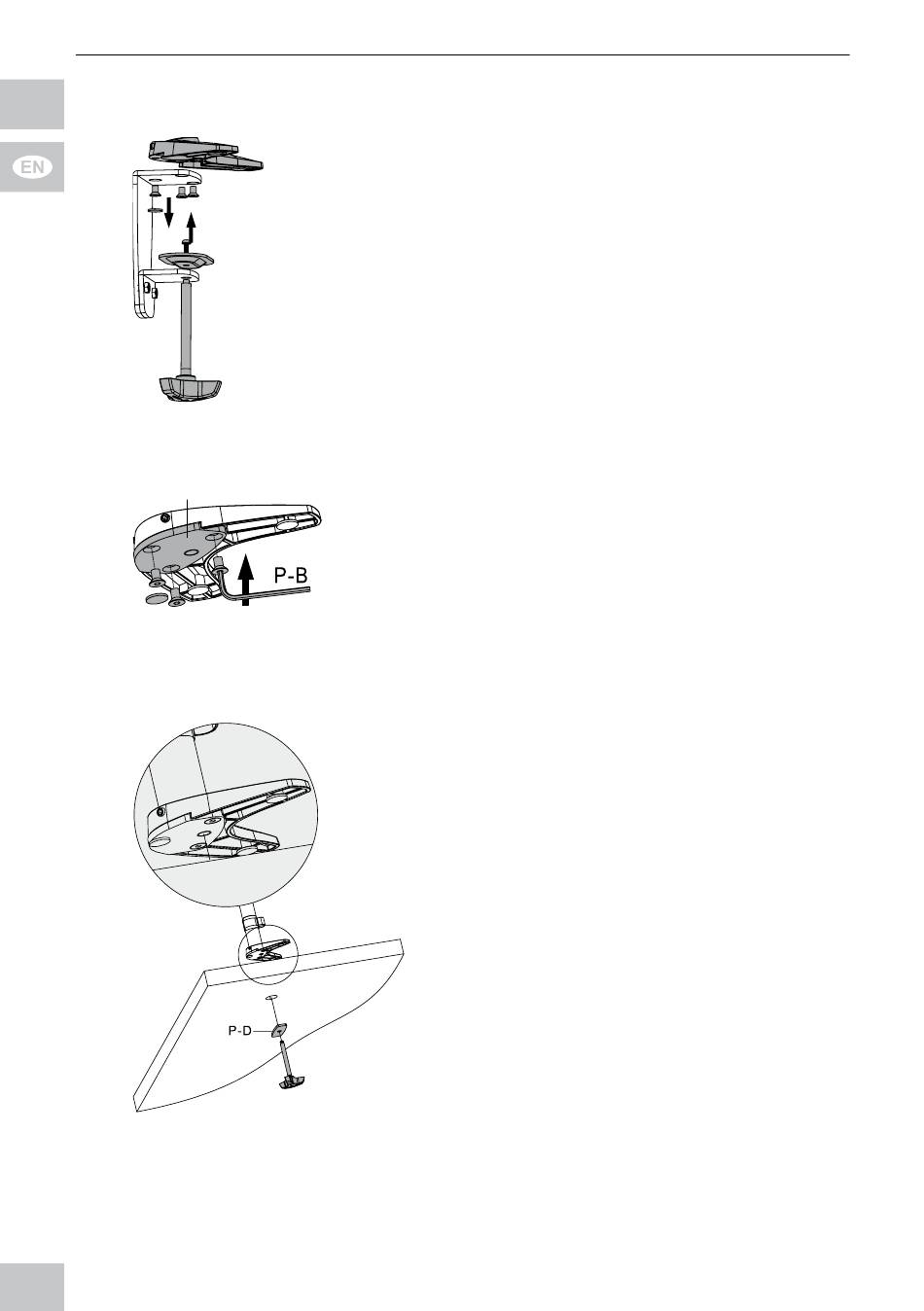

Fig. 17: Desk mounting - Alternative through desk mounting 1
P-D
Fig. 18: Desk mounting - Alternative through desk mounting 2
Fig. 19: Desk mounting - Alternative through desk mounting 3
22
1.
R emove the rubber protectors at the
desk clamps (C) inside.
2.
R emove the 3 Allen screws by Allen
key (P-B) anti-clockwise out of the
desk clamp (C).
3.
Turn the screw of the counter plate
off the desk clamp (C) by Phillips
screwdriver.
4.
Install the pressure plate (P-D)
instead the desk clamp (C) to the
bottom side of the stand.
5.
Glue the rubber protectors back on.
6.
Place the stand above the installation
hole and slide the thread rod through
the pressure plate (P-D).
7.
Tighten the thread rod clockwise by
hand.
