Assembly instructions

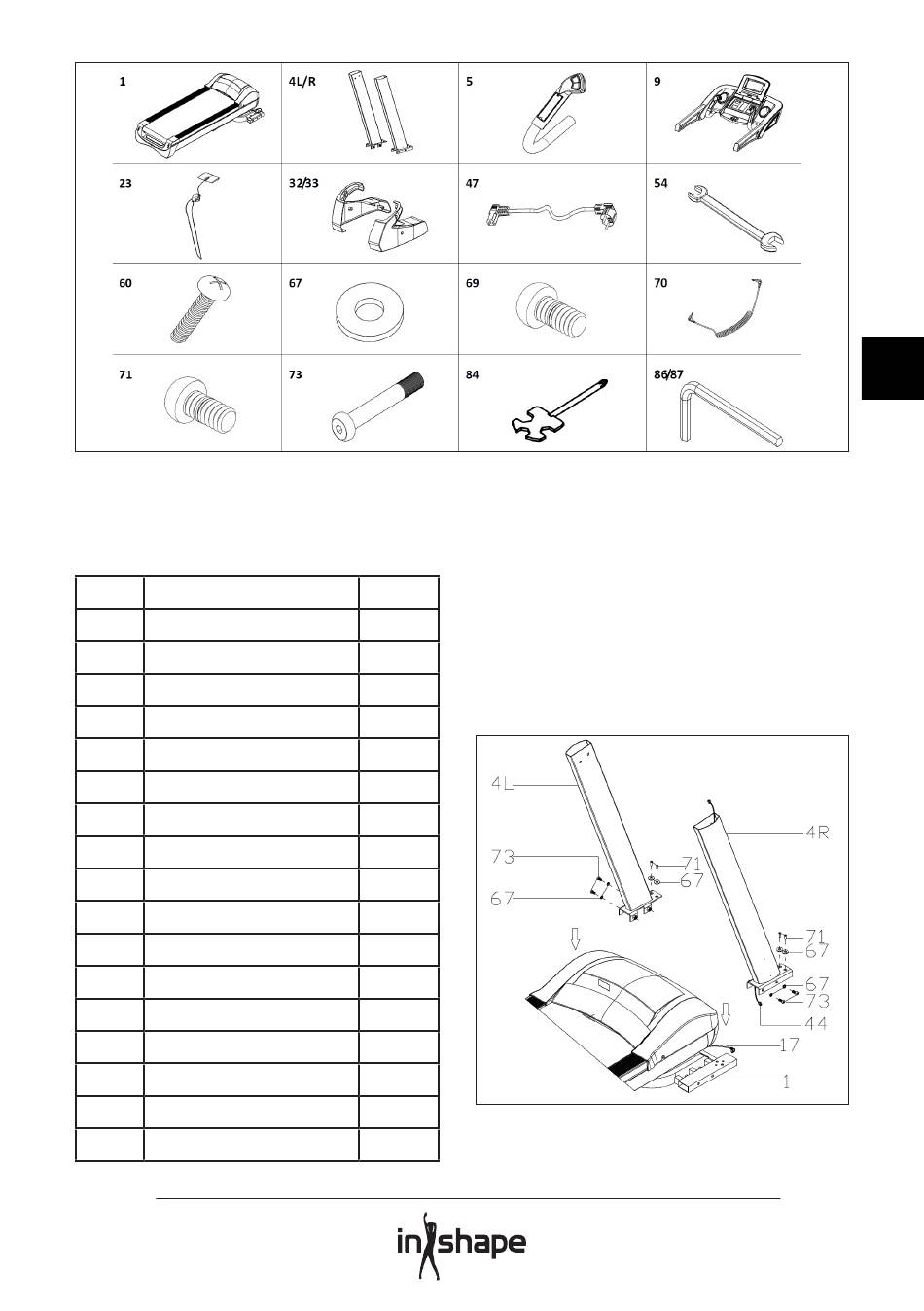

When you open the packaging, you will find
the following parts:
No. Part
1 Frame
4 L/R Column L/R
5 Handles L/R
9 Computer
23 Dead man's switch
32/33 Cover plate L/R
47 Power cable
54 Spanner 14x17
60 Screw M4x15
67 Washer Ø11xØ20
69 Screw M8x15
70 MP3 cord
71 Screw M10x20
73 Screw M10x80
84 Screwdriver
86 Allen key S6
87 Allen key S5
Step 1
Open the packaging and place the frame (1)
on the floor. Connect the bottom computer
cord (17) and the middle computer cord
Qty
(44), and then attach the columns (4L/R) to
1
the frame (1) as indicated by the arrows. Use
2
M10x20 screws (71)/M10x80 screws (73) and
Ø11xØ20 washers (67) to secure the columns
2
(4L/R). (Do not tighten the screws too much).
1
1
2
1
1
4
12
4
1
8
4
1
1
1
