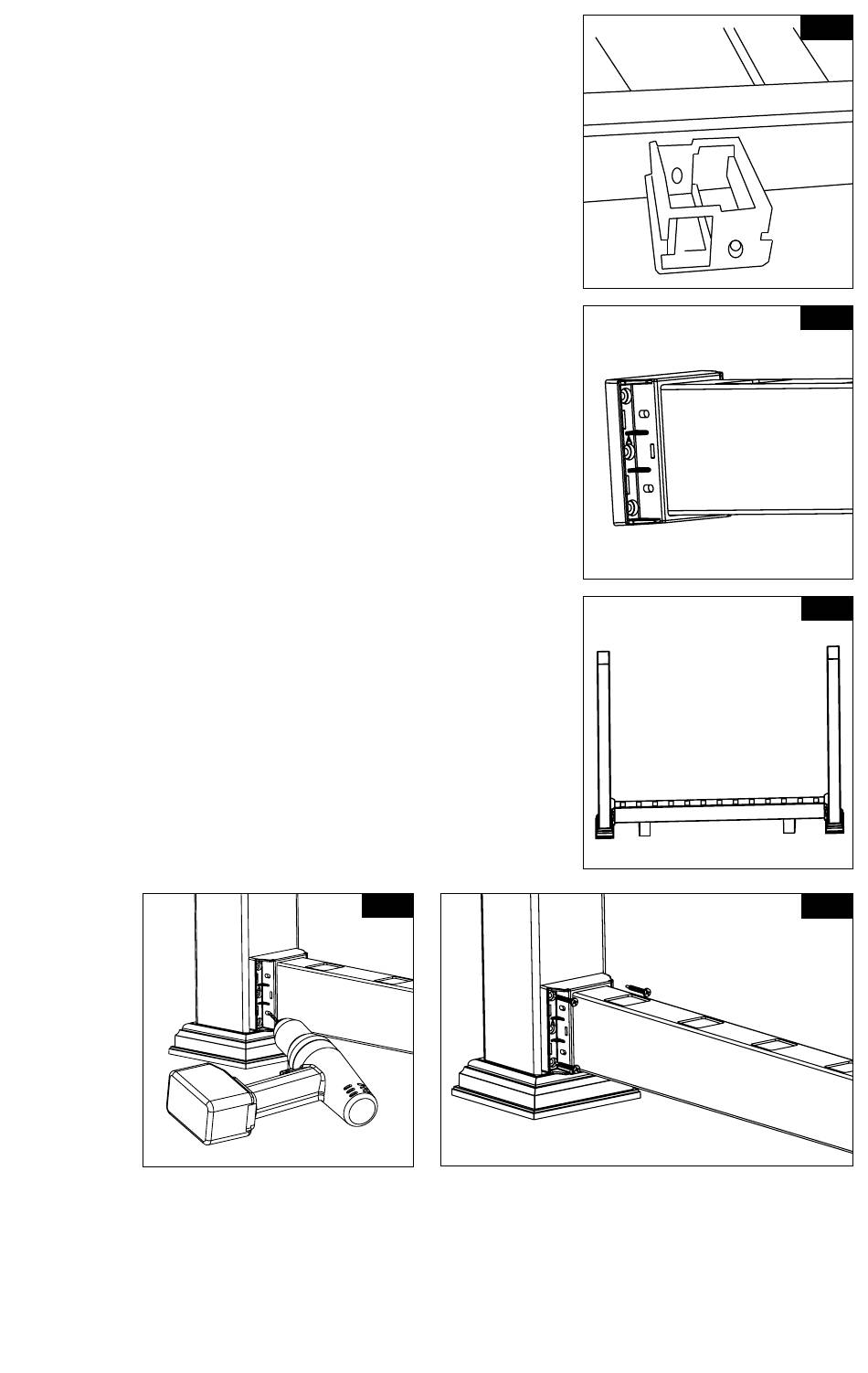

INSTALLING BOTTOM RAIL
NOTE: Finyl Line 10' rail kits include a support foot
which should be installed to bottom rail (step a
below) prior to attaching rail to brackets.
a. If installing a 10' kit, locate and mark the
center point on the underside (unrouted side)
of the bottom rail. Attach the support foot to
the bottom rail as shown below (Fig. 5) using
supplied set screw.
b. Place brackets onto both ends of bottom rail
(Fig. 6).
c. Slide bottom rail in between posts and rest on
top of wood spacer blocks (Fig. 7).
d. Ensure bracket is centered to post. Then, using
1⁄8" drill bit, pre-drill first bottom bracket screw
hole through bracket hole and post (use the four
outside corner holes) (Fig. 8).
e. Drive the first #10 x 1
bracket into post (Fig. 9).
f. Repeat steps c and d for the remaining three
screws for the first bottom bracket.
g. Repeat steps c, d and e for the second bottom
bracket.
