Access To Pump Control; Adjusting Pump Pressure; Adjusting - Conti XEOS EVOLUTION 2 Notice Technique

24.

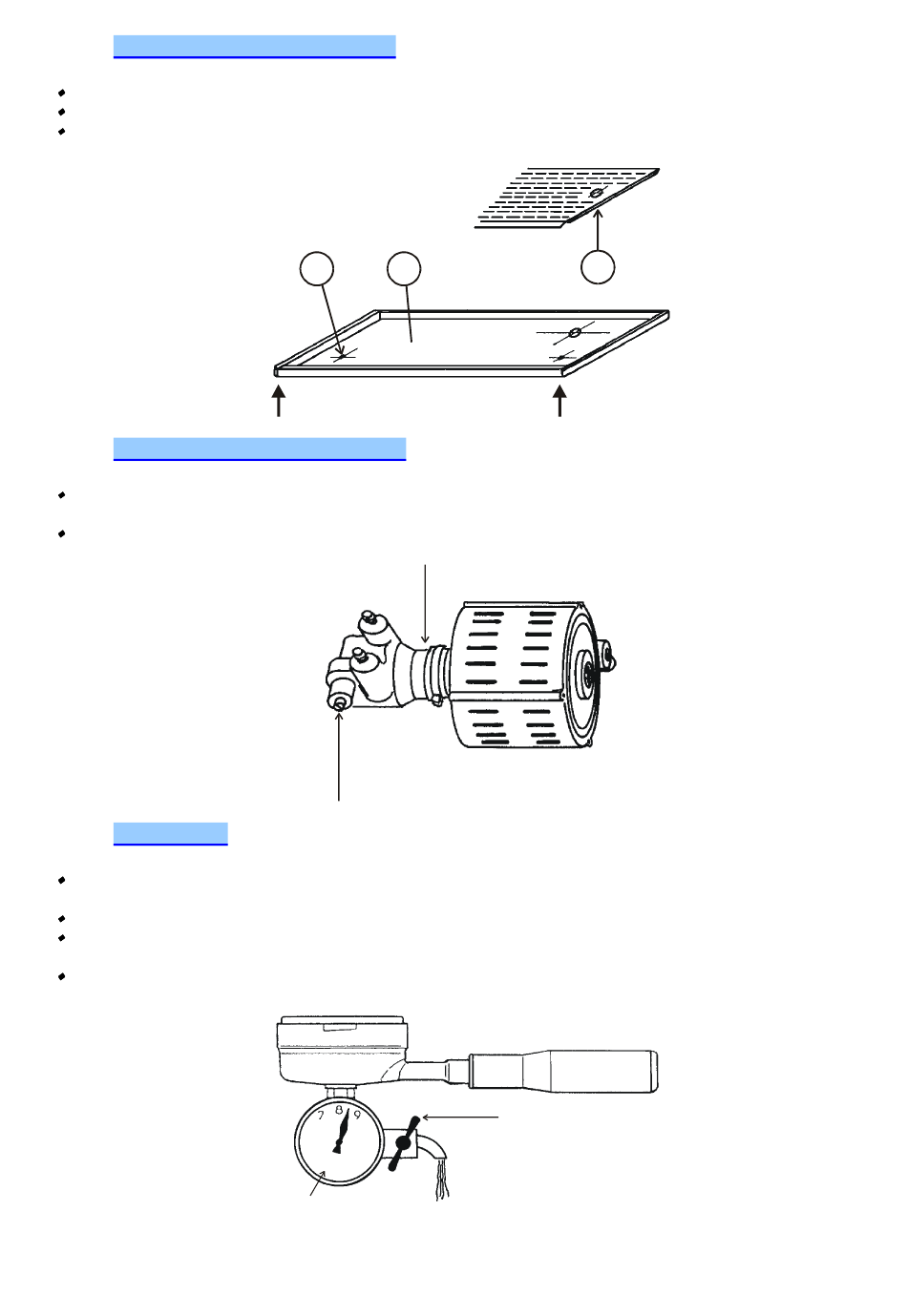

ACCESS TO PUMP CONTROL

Remove the drain (1).
To remove the basin, lift the front end (AA') and pull it towards yourself.
Attention: Do not remove the screws (2) found at each end of the basin (3).
25.

ADJUSTING PUMP PRESSURE

The pump has been pre-regulated to normal working pressure; however, if necessary it can be
readjusted.
The adjusting screw "R" on pump "P" is found on the under side of the mounting plate.
26.

ADJUSTING

Place a filter holder (ref.327500) with manometer "M" onto a group - ensure the manometer is calibrated
up to at least 175 PSI (12 bars) and is equipped with a tap.
Activate the machine, allowing a little water to escape from the tap - read the pressure.
Tighten or loosen the adjustment screw "R" in order to increase or decrease the pressure to between
120 (8 bars) and 135 PSI (9 bars) (maximum of 135 PSI - 9 bars).
Remove the filter holder once the dispensing cycle has stopped.
SACOME, Document CONFIDENTIEL,
SACOME, CONFIDENTIAL Document,
2
3
A
R
M
Edition 07/2008 - XEOS EVOLUTION 2 - XEOS TALL CUP
NOTES TECHNIQUES - TECHNICAL DOCUMENTS - page 35
it is forbidden to duplicate or communicate this document without previous authorization.
1
A'
P
ROBINET
(TAP)
