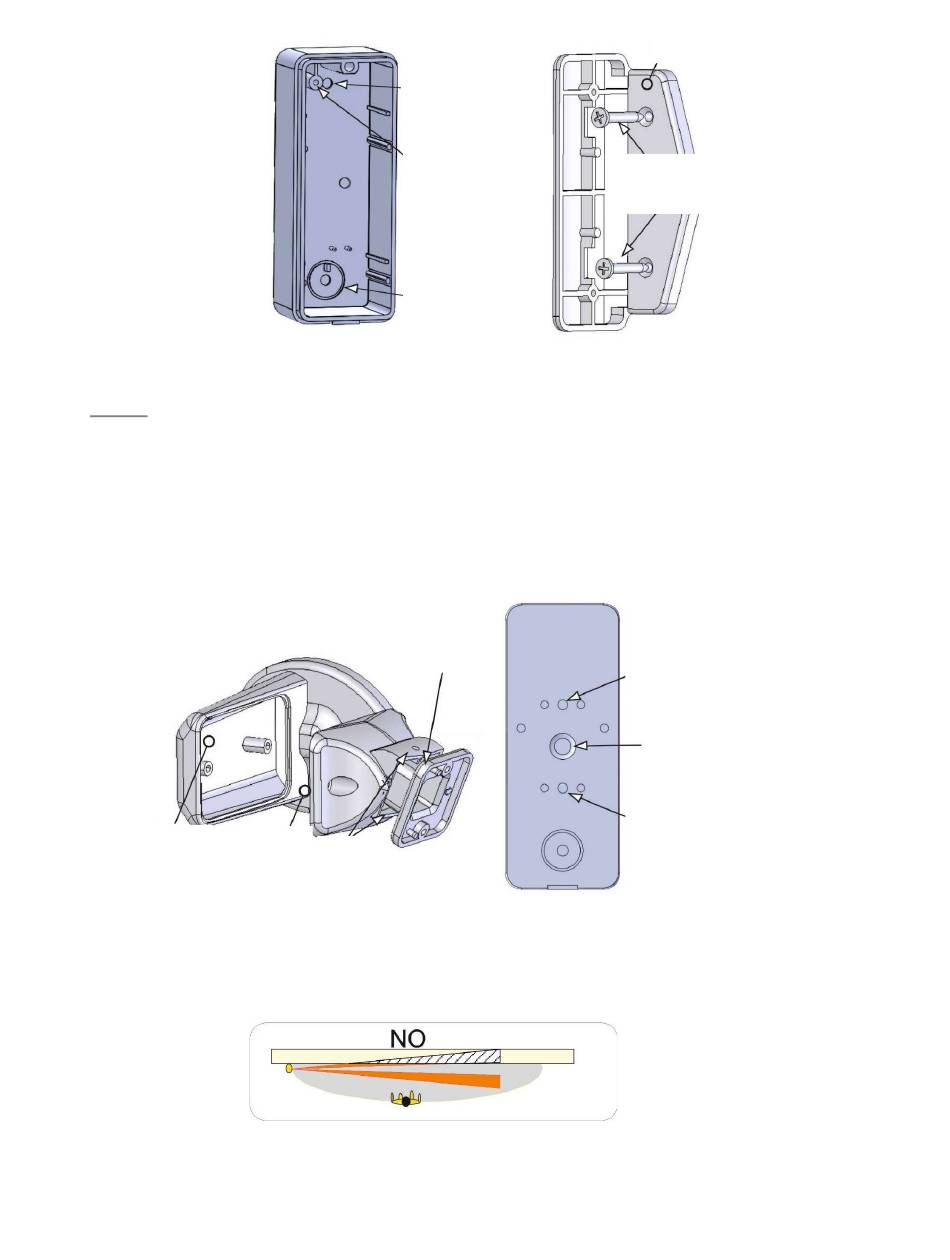

III. Fix the bottom using the special screws in seats A and B.
Installation with the 90° bracket (ref. 80SP4D00113)
First fix the 90° bracket to the wall with the special screws and then fix the base to the bracket using seats A and B with the
fastening screws. Re-screw the card to the base.
<
N
O
T
E
>
<
N
O
T
E
>
The 90° bracket can be assembled either to the right or left as desired.
Installation with articulation (ref. 80SP5D00113)
The articulation can be applied horizontally, or directly to the wall with the special screws and anchor bolts, or using the support.
It is possible to orient the base at +/- 45° on a vertical plane and +30°, on the side opposite the "Orientation Arrow", on the
horizontal plane.
I.
Puncture seats C and D on the base.
II.
Orient the articulation and tighten the articulation blocking screws.
III. Position the base on the articulation with the bracket fastening screws.
Support
Articulation
Installation precautions
The detector was designed to work within a detection field of 8 metres and is installed at a height of 2 metres above the ground.
To protect walls, ensure that a zone sensitive to the infra-red is not in contact with the wall so that the benefit of the two-
element infra-red sensor is not compromised.
DS80IM41-001C
Seat A
Card fastening screw
Seat B
Orientation arrows
Centering
elements
90° bracket
Wall fastening
screws
Seat C
Puncture to the very bottom to
access the articulation adjustment
screws.
Seat D
9
