EMERGENCY RELEASE
To be undertaken after disconnecting power supply.
In the case of power failure use the spanner provided and operate the emergency release
lever to lift the wheel.
In order to carry out the manual operation of the gate leaf the followings must be checked:
- That the gate is endowed with appropriate handles;
- That these appropriate handles are placed so to avoid safety risks for the operator;
- That the physical effort necessary to move the gate leaf should not be higher than 225
N, for doors/gates for private dwellings, and, 390 N for doors/gates for commercial and
industrial sites ( values indicated in 5.4.5 of the EN 12453 norm).

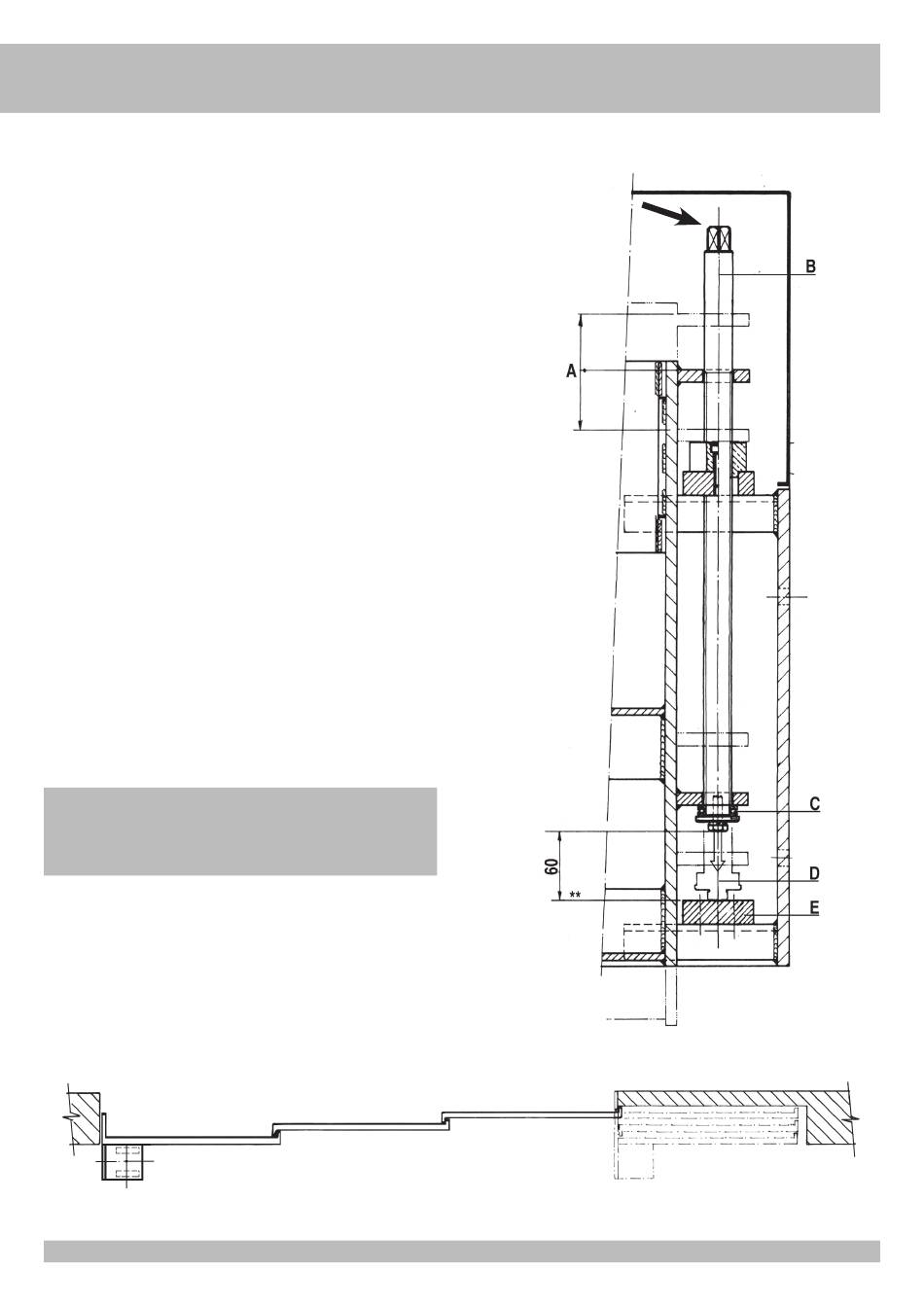

A: Maximum stroke 100 mm during movement (holes or uneven ground)
B: Rod
C: Position of rod (B) during installation
D: Position of rod (B) during movement
E: Block
ELECTRICAL SAFETY DEVICES
The installation must be installed according to the current regulations and laws.
We recommend the use of a B2/R2 control panel.
For connections and technical data of accessories refer to the appropriate booklets.
R60 APPLICATION ON MULTIPLE PANEL DOORS
In this case the R60 must be installed on the first leaf and will require two wheels with
tyres.
MAINTENANCE
To be undertaken by specialized staff after disconnecting power supply.
Clean the wheel contact surfaces carefully once a week.
Check wheel/ground pressure, V-belt tension, oil level and condition of motor every six
months.
The motor should be overhauled every two years and the oil and V-belts replaced.
ALWAYS USE AN OPEN/CLOSE PUSH BUTTON WHICH IS DESIGNED TO PREVENT THE
POSSIBILITY OF SIMULTANEOUSLY SENDING THE OPPOSITE COMMAND OF OPENING
AND CLOSING AND AVOID SO A DAMAGE TO THE MOTOR.
