R60 INSTALLATION
PRE-INSTALLATION CHECKS
The leaf must be fixed firmily on the hinges to the pillars, must not be flexible during the
movement and must move without frictions.
The ground on which the R60 wheel runs must be solid and compact with minimum gradient.
Gate features must be uniformed with the standards and laws in force. The door/gate can be
automated only if it is in a good condition and its conditions comply with the EN 12604 norm.
- The door/gate leaf does not have to have a pedestrian opening. In the opposite case it is
necessary to take the appropriate steps, in accordance with EN 12453 norm point 6.5.1 (for
instance; by preventing the operation of the motor when the pedestrian opening is opened,
by installing a safety microswitch connected with the control panel).
- No mechanical stop shall be on top of the gate, since mechanical stops are not safe enough.
R60 INSTALLATION

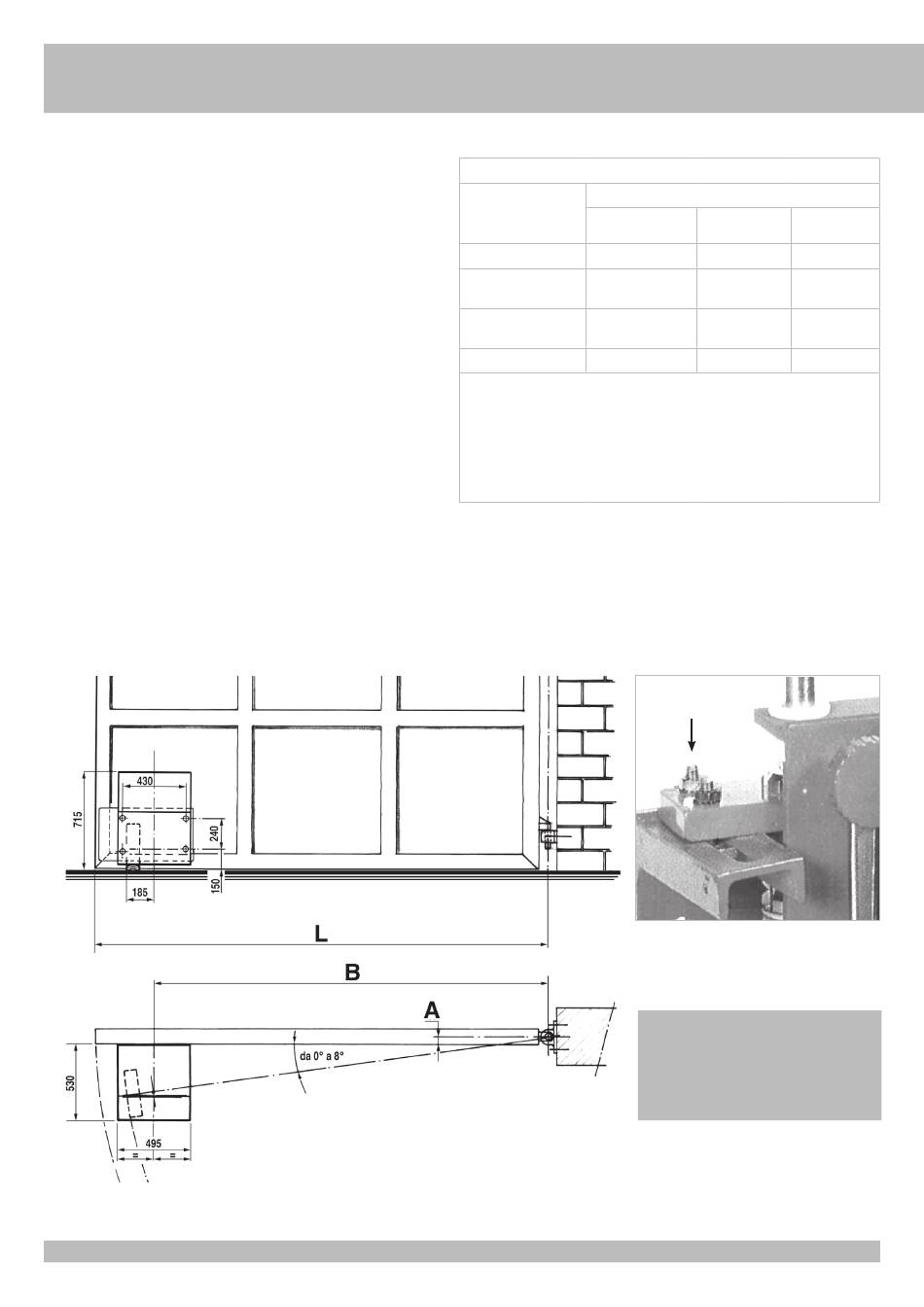

The ground must be solid and even, at least over the wheel travel area.
Fix the gearmotor base plate onto the corner of the leaf so that the wheel touches the ground.
Fix base plate by drilling four ø 10 mm holes.
Thread holes with a M12 tap, fit 4 screws and tighten with a no. 19 wrench (pic. 3).
Using the ratchet spanner provided, slide the rod down to the block.
Parts to install according to EN 12453 standard
COMMAND TYPE
Skilled persons
(out of public area*)
Hold-to-run operation
Impulsive - in sight
(e.g. push-button)
impulsive - out of sight
(e.g. remote)
automatic C and D, or E
* a typical example are those doors which do not have access to any public way
A: Hold-to-run operation made by push-button ex: code ACG2013
B: Hold-to-run operation made by key selector ex: code ACG1010
C: Adjustable power of the motor or photocells to respect impact forces as indicated in
Annex A
D: Safety strips and/or other additional devices to reduce the probability of contact with
the door.
E: Devices installed in such a way that a person can not be touched by the door.
If the wheel slips on the ground, adjust the ring nut for the springs by turning it clockwise to
increase wheel/ground pressure.
To avoid excessive wheel wear during movement loosen the nuts (D) with a no. 13 spanner and
angle the wheel so that its axis is aligned with the pivot of the door hinge.
Wheel angle may vary from 0˚ to 8˚.
15
USE OF THE SHUTTER
Skilled persons
(public area)
A B
C or E C or E
C or E C and D, or E
C and D, or E
D
B min = (0,31+A) / 0,14 [m]
B = 0,81 x L [m]
Opening time = 7,77 x L [sec]
G
B
Not skilled
persons
Not possible
C and D, or E
C and D, or E
C and D, or E
3
