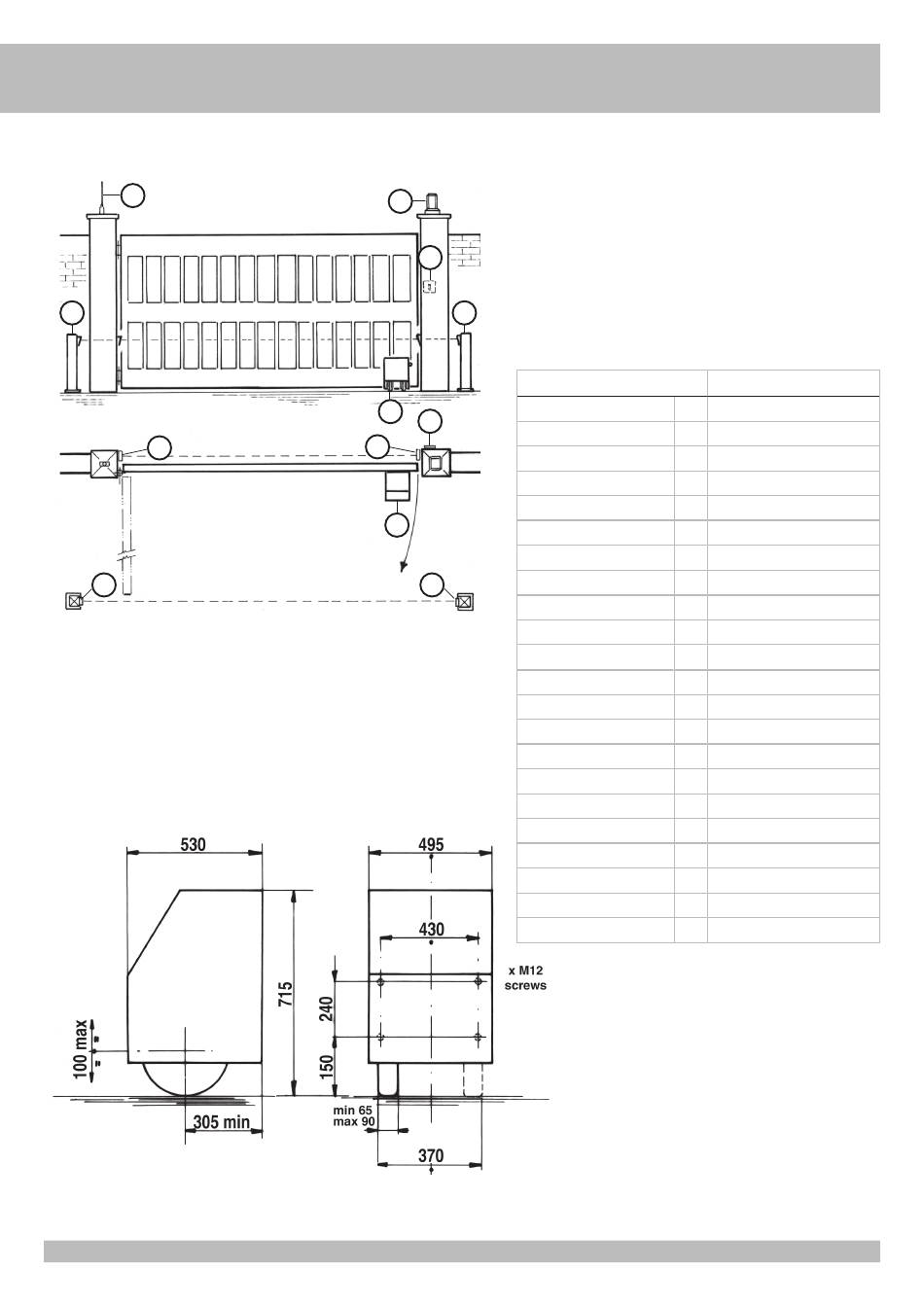

SYSTEM LAY-OUT
2
5
4
5
1 - R60 operator
2 - Radio antenna
3 - Blinker
4 - Photoelectric cells (external)
5 - Photoelectric cells (internal)
6 - Key selector
3
6
1
6
4
1
5
Measurements in mm
TECHNICAL FEATURES
Gearmotor for moving industrial leaf-gates (not opening onto public roads) with
maximum weight of 12.000 kg.
The R60 is an irreversible gearmotor with a driving power which can be varied in
accordance with the pressure exerted by the drive wheel on the ground.
Drive transmission between motor and gearmotor is by means of V-belts to avoid
mechanical damage due to recoil shock transmitted from the gate at travel start,
travel end, and during direction change. The drive wheel tolerates approx. 10 cm
level difference as the gearmotor unit runs on vertical chromed ways.
5
Wheel/ground pressure is variable from 150 to 600 kg and is maintained by special
adjustable springs.
TECHNICAL DATA
Max. leaf length
Max. leaf weight
Average opening time 90°
Max torque
Operating speed
Power supply
Motor capacity
Power absorbed
Power supply
Motor capacity
Power absorbed
Power supply
Motor capacity
Power absorbed
1
230/50-60 Normative cycles
Daily cycles suggested
Service
Consecutive cycles guaranteed
Lubrification
Poids du moteur
Temperature de travail
Indìce de protection
2
14
R60
m
15
kg
12.000
s
116,5
Nm
235
m/s
0,164 (50Hz) - 0,196 (60Hz)
400V 3~ 50Hz
W
1.100
A
2,7
380V 3~ 60Hz
W
1.200
A
2,7
220V 3~ 60Hz
W
1.200
A
4,57
50 - 100s/2s
300
%
100
300
IP MELLANA 100
kg
156
°C
-10 ÷ +55
IP
55
