USER'S MANUAL. RP-250
4.2

Operating instructions

The RP-250 has three independent operating functions:
1. CONFIG FUNCTION:
2. GENERATOR FUNCTION: It sets the characteristics of the signals generated by the
3. MEMORY FUNCTION: It allows to save and to load in the instrument internal
In order to access to the next field in the lower selection frame from the main
menu (see fig 3) press the programmable key [F5] or the selection button [8]. So, the
field selected to modify will appear highlighted.

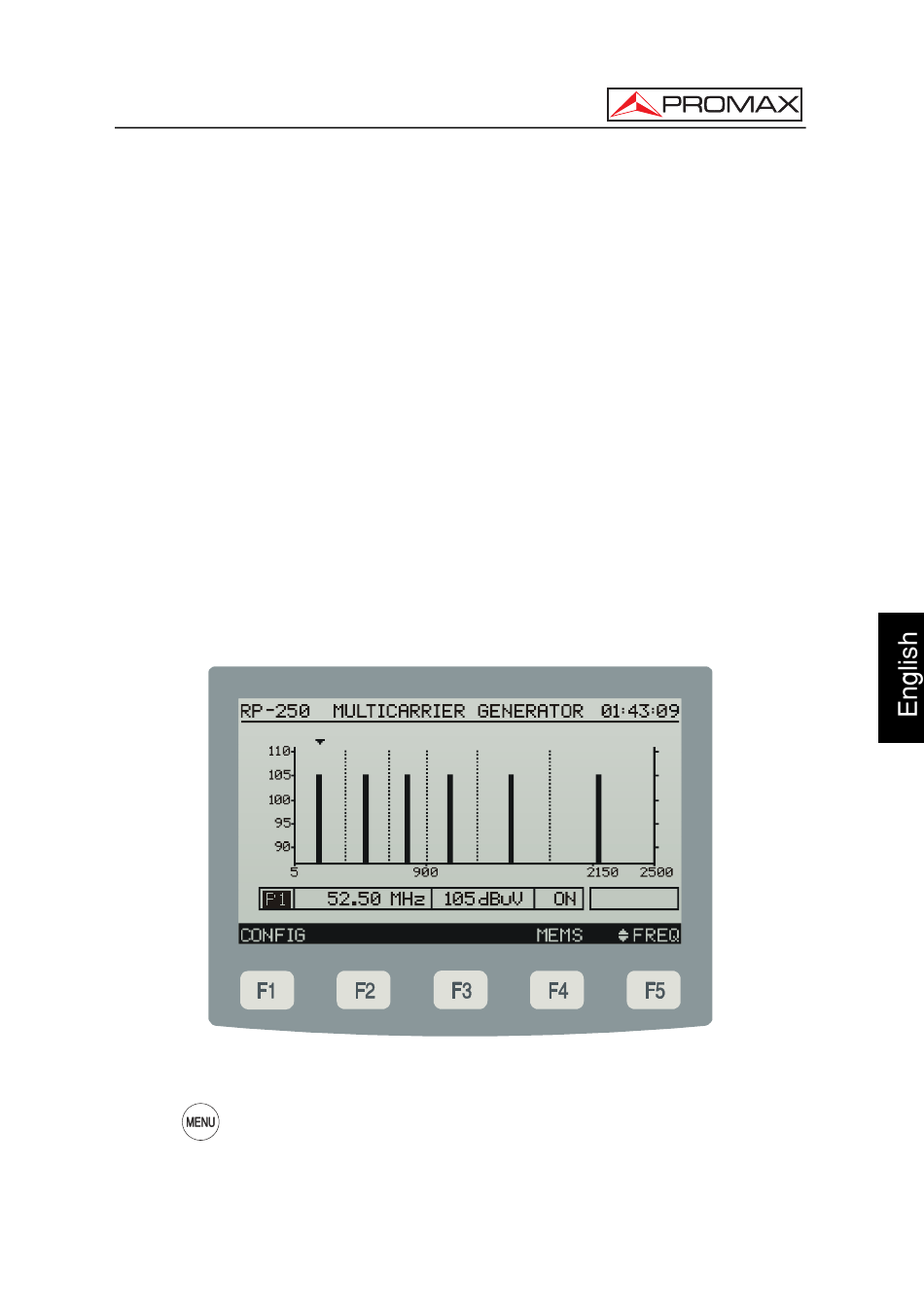

Figure 3. - Main menu, lower selection box and programmable keys. (SOFTKEYS).
In order to access to the main menu from any screen, simply press the direct
access key [13]. Some modes feature more than a page of information. Back to
the previous page pressing the BACK key.
Page 13
It allows to set the initial instrument configuration, entering
basic data into the system such as the time, date or
language. Also, it sets the number of carriers and reports
about the battery charge status and the firmware version
installed.
instrument and it activates or deactivates them in order to
verify the transmission channel. This is the function
selected by default after the instrument starting up.
memory the signal configurations previously defined by
users.
03-2007
