4. OPERATING INSTRUCTIONS

4.1 Description of the Controls and Components

Front panel
P1
P2
P3
P4
[1] Rotary selector-button. Functions:
Instrument ON/OFF
Activation/deactivation of the pilot signal.
Frequency selection.
Level selection.
[2] CHARGE indicator. It lights when the mains adapter is connected.
[3] Light-level sensor, to control screen backlight.
08/2006
15.00 50
47.00 48
678.25 50
895.75 50

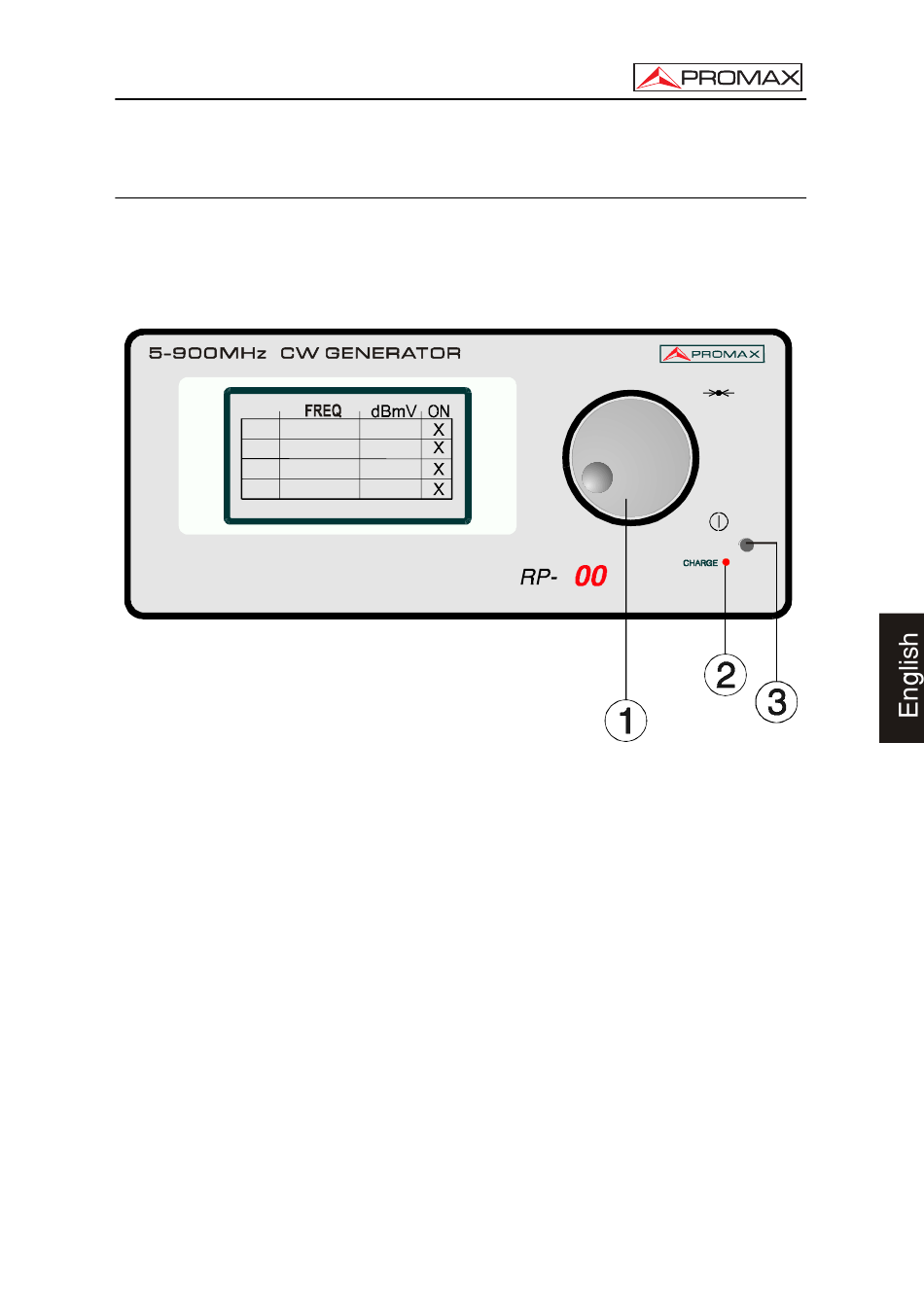

Figure 1.- Front view.
