MULTI JOG dial
!
This dial functions as a dial when turned and as a button
when pressed.
Dial functions
i Turn when the Home Screen is open to move the file play-
back position. (See "Locate function" on page 40)
i When a MENU Screen is open, turn to select items and
change setting values. (See "Basic MENU screen operations"
on page 27)
Button function
i Press when the Home Screen is open to designate a locate
point. (See "Locate function" on page 40)
i When a Menu Screen is open, press to confirm selections
and settings (ENTER button function).
Output level indicators
@
These are output level indicators for the MAIN OUTPUT jacks.
m/, buttons
#
i When stopped and during playback, press and hold these
buttons to search backward/forward.
i When the Home Screen is open, press the m button to
locate to the beginning of the current song (00:00:00,
which is the zero point).
i When the Home Screen is open, press the , button to
locate to the end of the current song.
i If the current song has auto punch in or out points set, you
can also locate to those points.
i If the current song has marks set, these can also be used to
locate to them.
i While pressing the 8 button, press the m button to
locate to the point where recording last started.
i While pressing the 8 button, press the , button to
locate to the point where recording last stopped.
i When the SD PLAY Screen is in playback state, press to skip
a file. (See "Playing WAV files on SD cards (SD PLAY mode)"
on page 48)

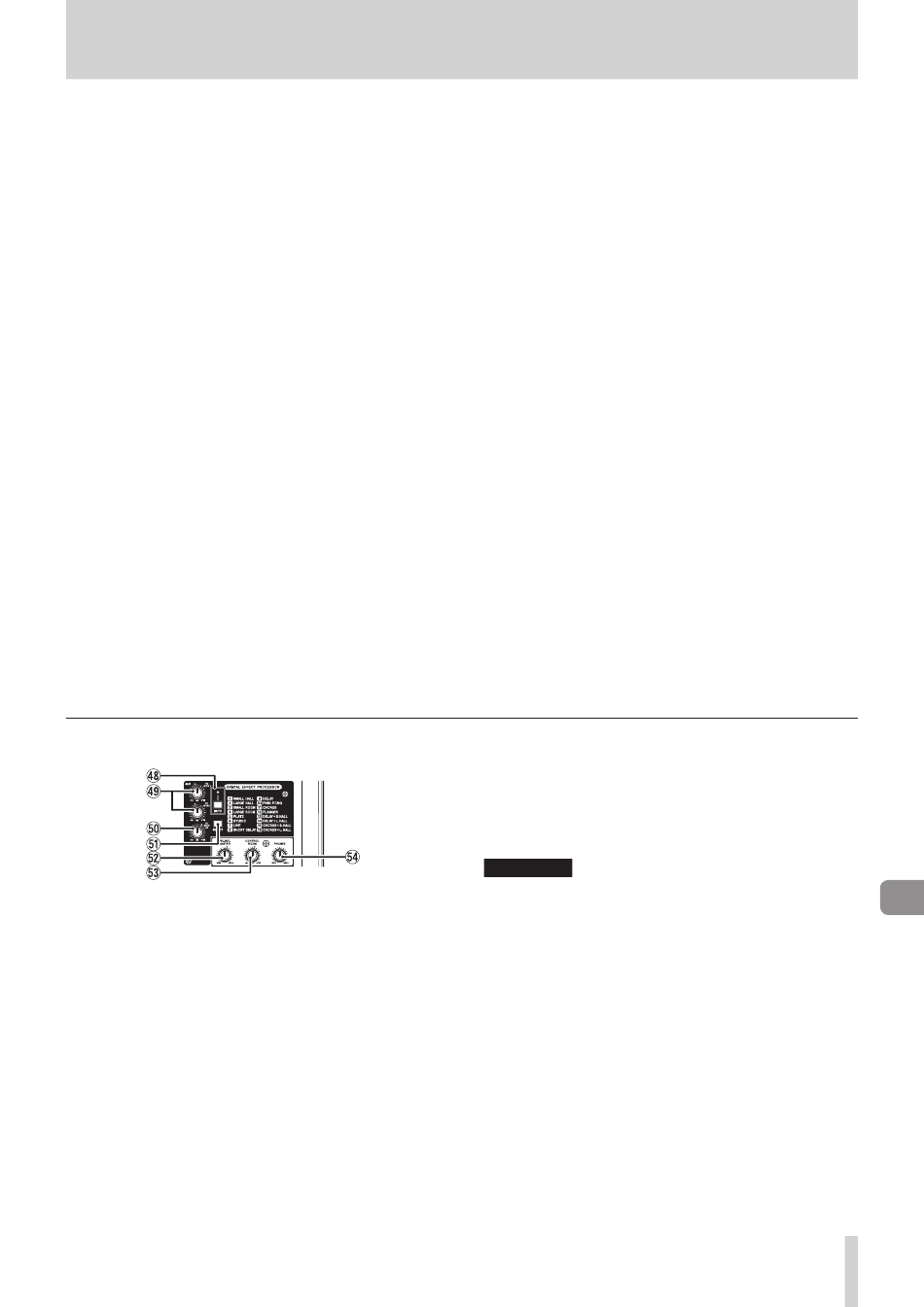

Built-in effects operation section

MUTE switch/indicator
*
When the MUTE switch is on (pushed in, MUTE indicator lit),
the signal from the built-in effect is muted.
TO MON 1/TO MON 2 knobs
(
Use these to adjust the levels of signals sent from the built-in
effects to the MONITOR OUT 1/2 buses.
TO MAIN LR knob
)
Use this to adjust the levels of signals sent from the built-in
effects to the MAIN MIX L/R buses.
SELECT button
Q
Open the EFFECT Screen and make built-in effect settings.
(See "Using the built-in effects" on page 38)
The built-in effect return signal is return to the MAIN MIX L/R
bus and MONITOR OUT 1/2 buses.
PFL/AFL MASTER knob
W
Use this to adjust the send level from the PFL/AFL L/R bus.
2 – Names and Functions of Parts
MENU button
$
i When the Meter Screen is open, press to open the Home
Screen.
i When the MENU Screen or a menu item settings screen is
open, press to return to the Home Screen.
i When the Home Screen is open, press to open the MENU
Screen. (See "Menu structure" on page 27) and (See
"Basic MENU screen operations" on page 27)
8 button/indicator
%
Press to stop playback or recording.
This button lights when stopped.
Press this button when paused to return to the beginning of
the song or file.
7/9 button/indicator
^
Press this button to start playback.
This button lights during playback and recording.
This button blinks when paused.
0 button/indicator
&
Press this button to start recording.
This button lights during recording.
Press this button during playback to start recording (Manual
punch in).
CONTROL ROOM knob
E
Use to adjust the output levels of the CONTROL ROOM L/R
jacks.
PHONES knob
R
Use this to adjust the headphone output level.
V CAUTION
Before connecting headphones, minimize the volume with
the PHONES knob. Failure to do so could result in a sudden
loud noise that could harm hearing, for example.
23
TASCAM Model 24
