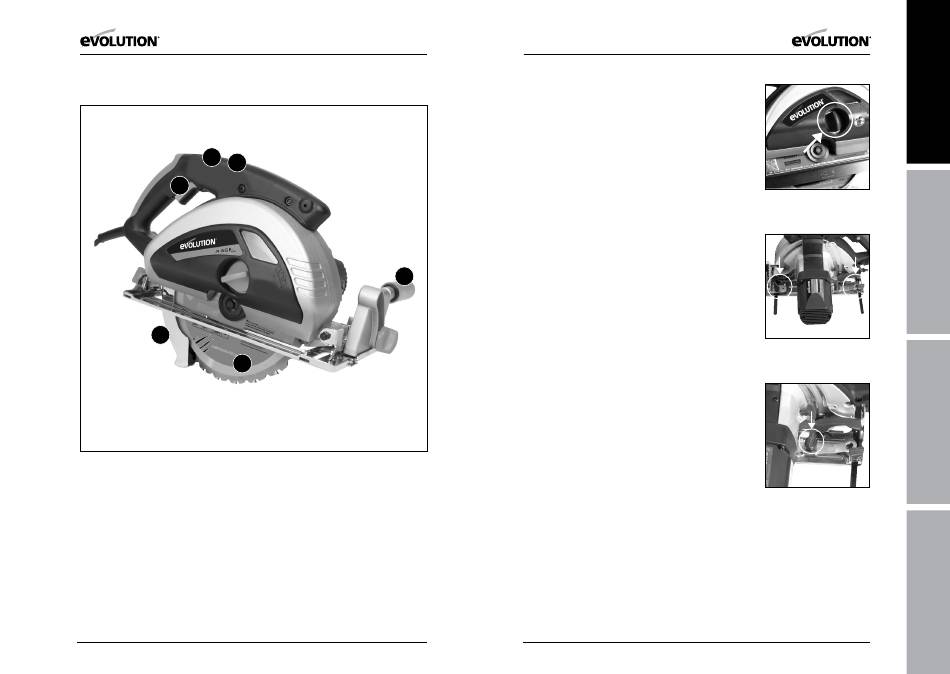

MAChiNE OVERViEw
4
3
1
5
6
1. ON/OFF TRiGGER SwiTCh
2. AuXiLiARy FRONT hANDLE
3. LASER ON/OFF SwiTCh
4. LASER BATTERy COMPARTMENT
5. LOwER BLADE GuARD
6. FiTTED BLADE iN SiTu
14
www.evolutionpowertools.com
2
www.evolutionpowertools.com
GETTiNG STARTED - PREPARATiON
wARNiNG: Always disconnect the saw from the power source
before making any adjustments.
This saw is equipped with an approved mains lead and plug for its
intended country of use. Do not alter or modify the mains lead.
iNSTALLiNG/REMOViNG A BLADE
wARNiNG: Only use genuine Evolution blades which are
designed for this machine. Ensure that the maximum speed
of the blade is compatible with the machine. Only perform
this operation with the machine disconnected from the
power supply.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the machine's blade.
• Place saw on a level, secure surface.
• Remove the chip collector from the machine by undoing the
large thumb screw. (Fig. 1)
Note: The chip collector thumb screw is 'captive' and cannot be
removed from the machine.
• If the Parallel Edge guide is fitted, remove it by loosening the
two (2) thumb screws and slide the guide from the machines
base plate. (Fig. 2)
• Remove the wrench from the base plate by removing the
thumb screw and sliding the wrench from the machine.
(Fig. 3)
15
EN
Fig. 1
ES
Fig. 2
FR
Fig. 3
NL
