4.5 RESETTING yOUR HEADSET

If your SRC‑System™ fails to respond despite repeated attempts,
you can reset your headset by charging it. After approximately 10
seconds, remove the headset from the charger and turn it on again. It
should now respond as expected.

5. GETTING STARTED

5.1 REPLACING THE EXISTING ACOUSTIC COLLAR WITH THE

SRC‑SySTEM

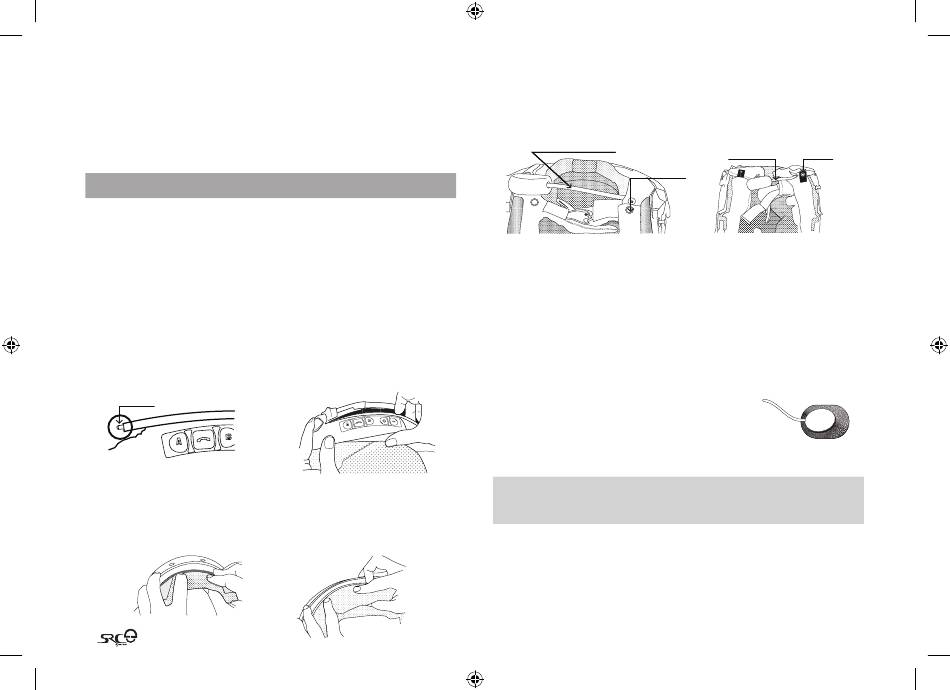

First, remove the existing Acoustic Collar from your helmet as follows:
1. Open both snap buttons.
2. Pull out the Acoustic Collar from the rear at its bended center.
3. Release the collar's pins from their corresponding indentations
inside the helmets rim.
4. Now proceed and replace the existing collar with the new
SRC‑System™ Acoustic Collar. As you secure the SRC‑System™
into place, be sure to have the speaker cords inside the helmet.
5. Slide and insert the pin located at the edge of the control panel into it's
corresponding indentation on the helmet and close the snap button.
Pin
6. Insert the other pin on the opposite side of the Acoustic Collar into
place and close the second snap button.
7. Push and insert the Acoustic Collar starting from the center area to
the back of the helmet area. Do the same for the remaining parts
to secure the Acoustic Collar into place.
26
QG SRC 207 - MAN00015.indd 26
8. Make sure that both snap buttons remain fastened, and that the
microphone boom is located on the inner side of your helmet
(between the SRC‑System™ and the inner padding of the helmet).
Microphone Boom
Snap
Button
C3 helmet
9. Make sure to close the cover of the USB connector, and then tuck
it away into the folds of the Acoustic Collar (into the back of the
Acoustic Collar on the control panel side).

5.2 POSITIONING THE SPEAKERS

For best audio results, make sure that both of your speakers are placed
as closely as possible just opposite your ears.
C2 & Concept helmets:
If you have purchased an SRC‑System™ version
that fits C2 and Concept helmets, simply attach
the speakers opposite your ears onto the internal
lining by using the supplied Velcro pads.
C3 helmet:
Note: while you can attach the speakers in the same manner as explained
above (for C2 and concept helmets), we recommend that you use the
following procedure.
the following applies to both sides of the C3 Acoustic Collar:
1. Release the snap buttons on both sides of the Acoustic Collar (the
same buttons that you just fastened earlier).
Microphone
Snap
Boom
Button
C2/Concept helmet
