Connecting
3.1 Transmitter Wiring
3.1.2

Connecting Sensor Cables to Transmitter

1. Open the transmitter top cover. Using a flat blade screwdriver, remove the Cable Strain
2. Observing the upstream to downstream orientation, pull Sensor cables through
3. Attach the Sensor cables to Channel 1 and Channel 2 UP and DN Input Module F-
4. Replace the Cable Strain Relief bracket. Close transmitter top cover.
5. If not installing a Temperature Sensor, proceed to Sensor Wiring.
26
Relief bracket.
①
Transmitter Input Module
②
Transducer Cables Connected to
Transmitter
③
Cable Strain Relief Bracket
④
To CH-2 DN

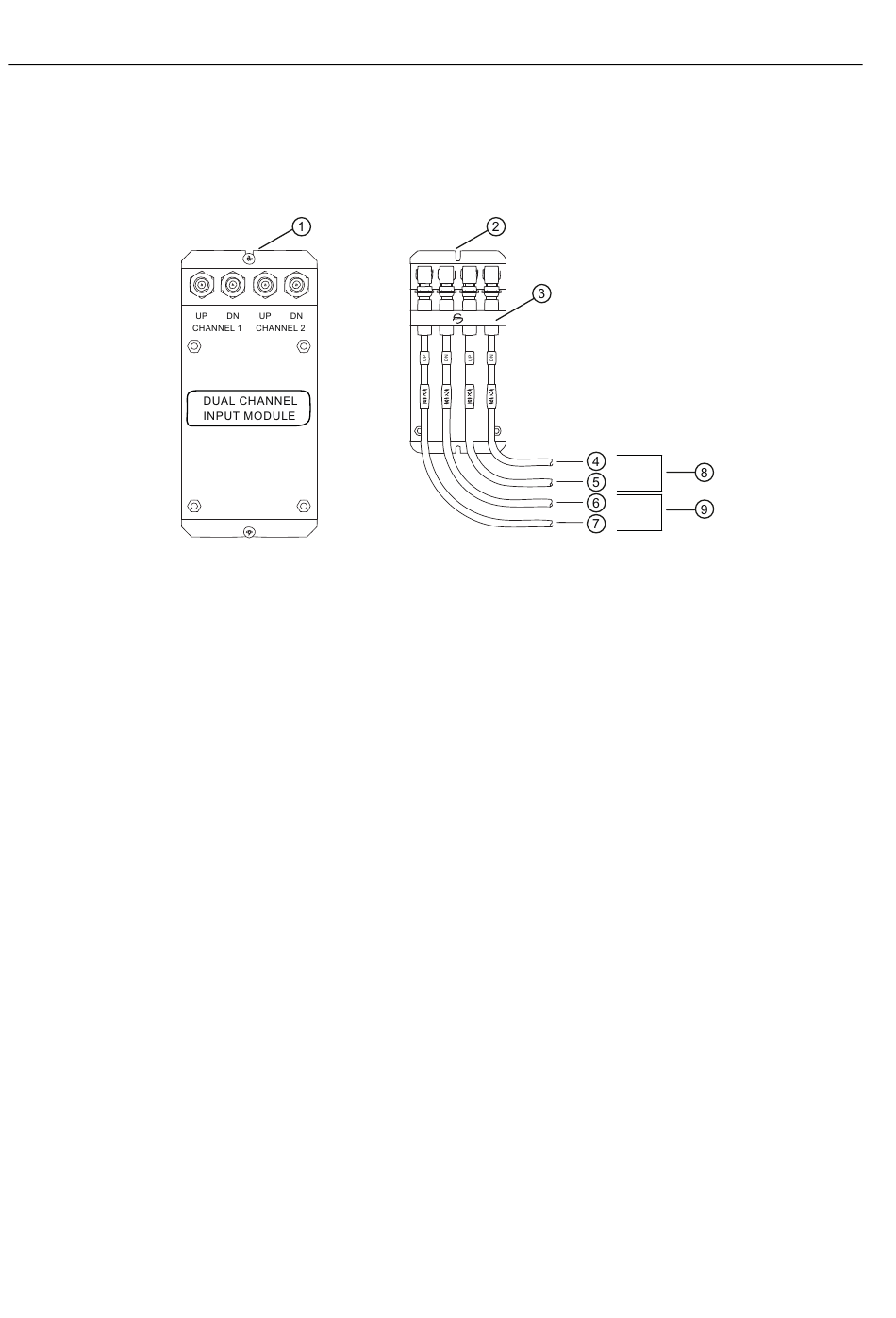

Figure 3-2 Sensor Cable Connections
transmitter cable glands.
connectors. Repeat for additional paths as necessary.
⑤
To CH-2 UP
⑥
To CH-1 DN
⑦
To CH-1 UP
⑧
Channel 2 to Junction Box
⑨
Channel 1 to Junction Box
FUT1010 IP65 NEMA 4X & IP66 NEMA 7 Gas Quick Start
Operating Instructions, 1/2013, A5E02639183-AC
