PAUSE key to silence alarm and place pump in pause mode again.
Program and use pump or press the
SHUT DOOR (Figure 3-8)
Pump will sound a dual tone beep repeatedly and display will read SHUT DOOR.
Why: This alarm has occurred because the pump door
was opened while pump was running.
To correct the problem: Press the
to silence alarm and place pump in pause mode
then shut the door. Check door is latched securely.
If door will not stay closed, check door latch and
latch pocket on pump are not broken or cracked.
Messages
DOSE DONE (Figure 3-9)
This message indicates a feeding
dose has been delivered.
To clear pump: Either press the
pump off, or press the
in pause mode before starting another feeding.
ON/OFF
RUN/PAUSE
ON/OFF
RUN/PAUSE
key to put pump
23
3. ALARMS, MESSAGES, AND INDICATIONS
key to turn it off.
key
key to turn

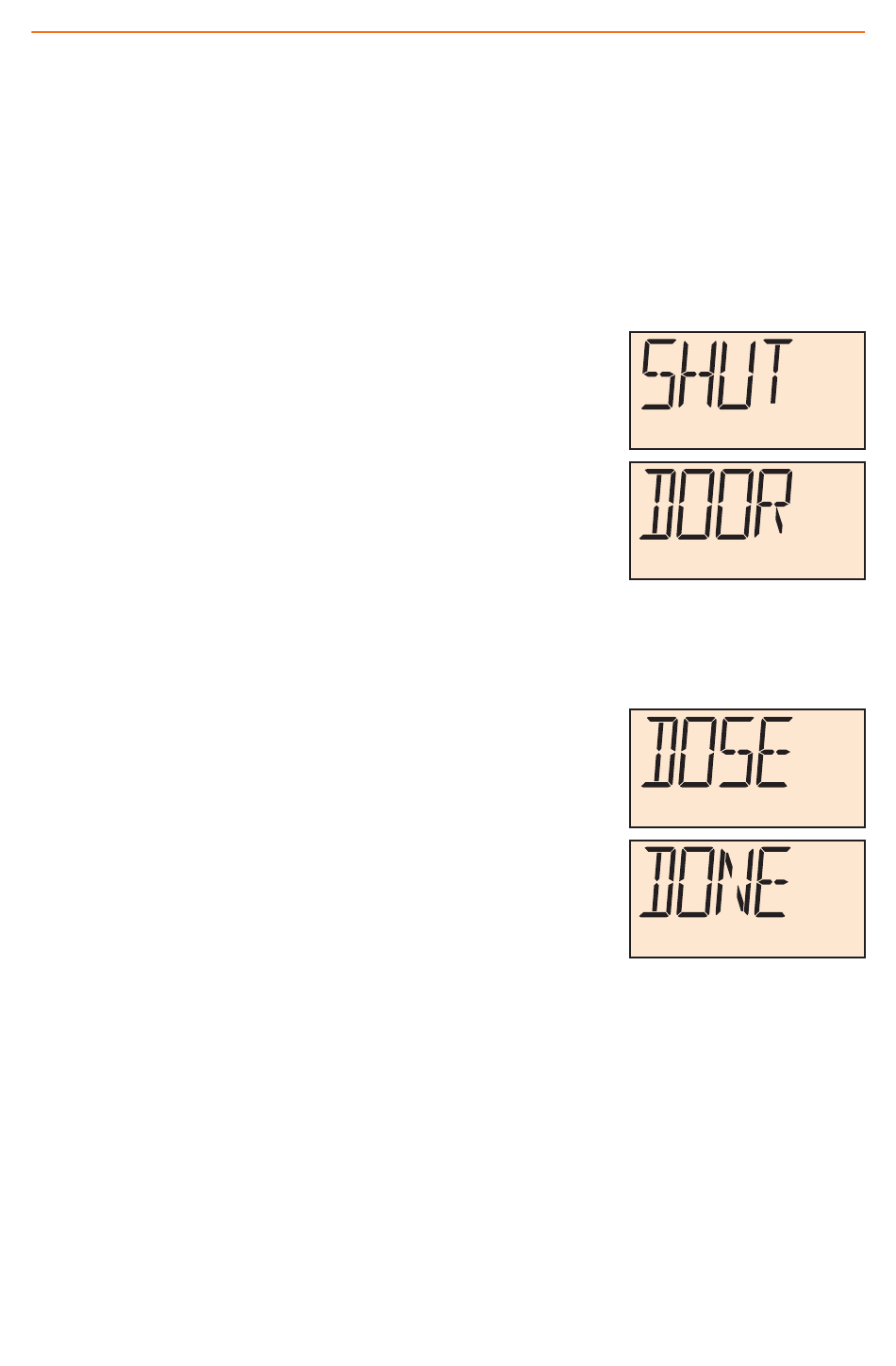

Figure 3-8 SHUT DOOR Alarm

Figure 3-9 DOSE
DONE Message
