2. DIRECTIONS FOR USE

User Preference Settings

six
There are user preference settings. These
settings can be changed to fit the user's needs.
Alarm Volume:
The alarm has two volumes, high or low.
Pump default is low (Figure 2-21).
Settings Lock:

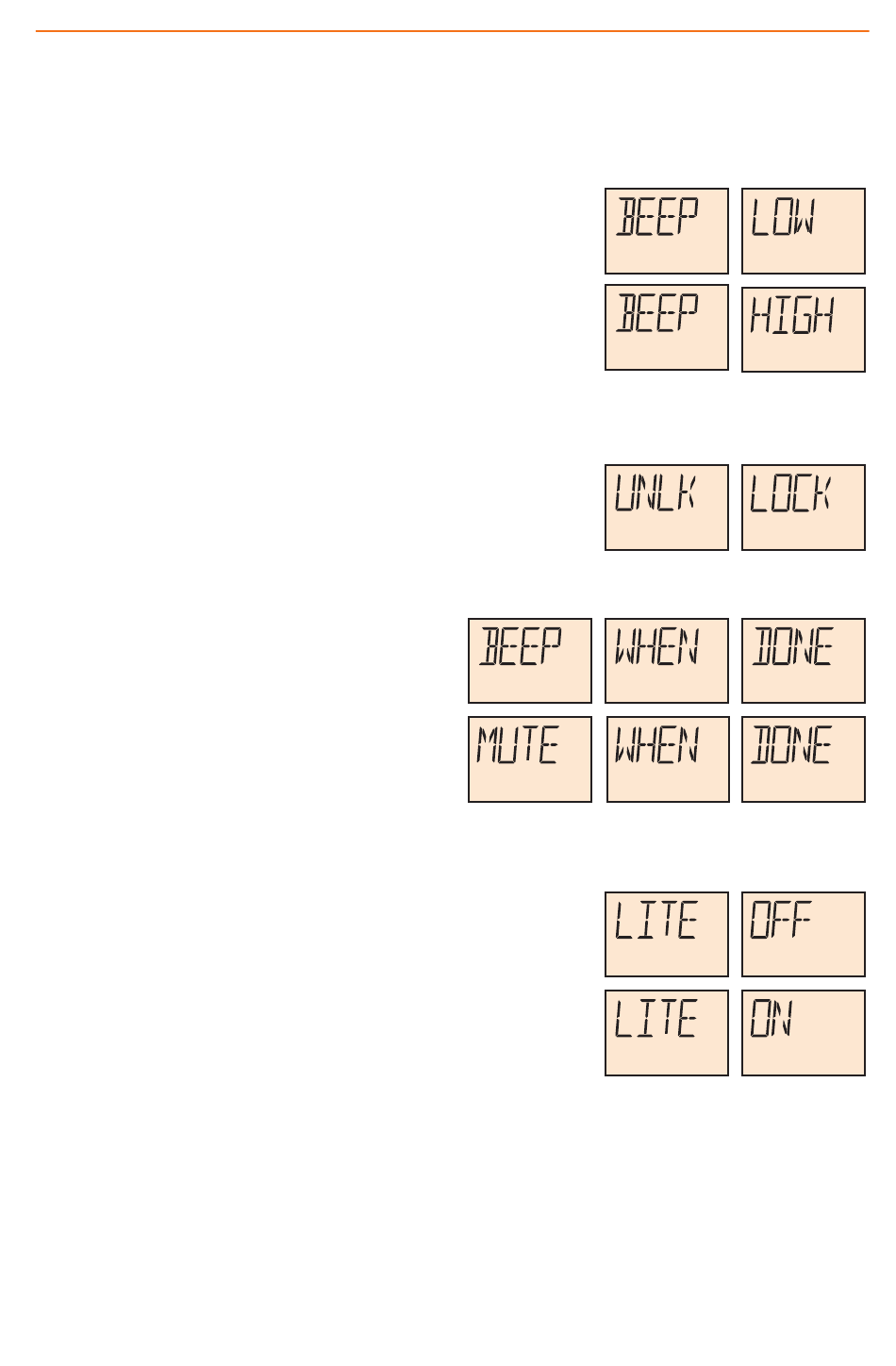

Figure 2-21 Alarm Volume
This allows user to set a rate, dose, and food type
Settings BEEP LOW and BEEP HIGH
and then lock those settings so they cannot be
changed unintentionally. This will also lock the
volume counters from being unintentionally
cleared. Pump default is unlocked (Figure 2-22).
Dose Done:
Figure 2-22 Settings Lock
There are two settings for the DOSE DONE alarm:
UNLK and LOCK
MUTE WHEN DONE or BEEP WHEN
DONE. Pump default is MUTE
WHEN DONE (Figure 2-23).
Backlight:
To conserve battery life, the backlight
will turn off automatically 10 seconds
after the last key has been pressed.
Figure 2-23 Dose Done Settings BEEP
However, while pump is connected
WHEN DONE and MUTE WHEN DONE
to an A/C current, the backlight
settings can be adjusted. The light
can be set to ON or OFF. With the ON setting the
backlight will remain on the entire time pump is
plugged in to a live power outlet. With the OFF
setting, the backlight will turn on when a key is
pressed and turn off 10 seconds after the last key
has been pressed. Pump default is ON (Figure 2-24).
NOTE: Regardless of setting, the backlight will always Figure 2-24 Backlight Settings
LITE OFF and LITE ON
turn off 10 seconds after pump is turned off.
16
Infinity Orange Operator's Manual
® ®
