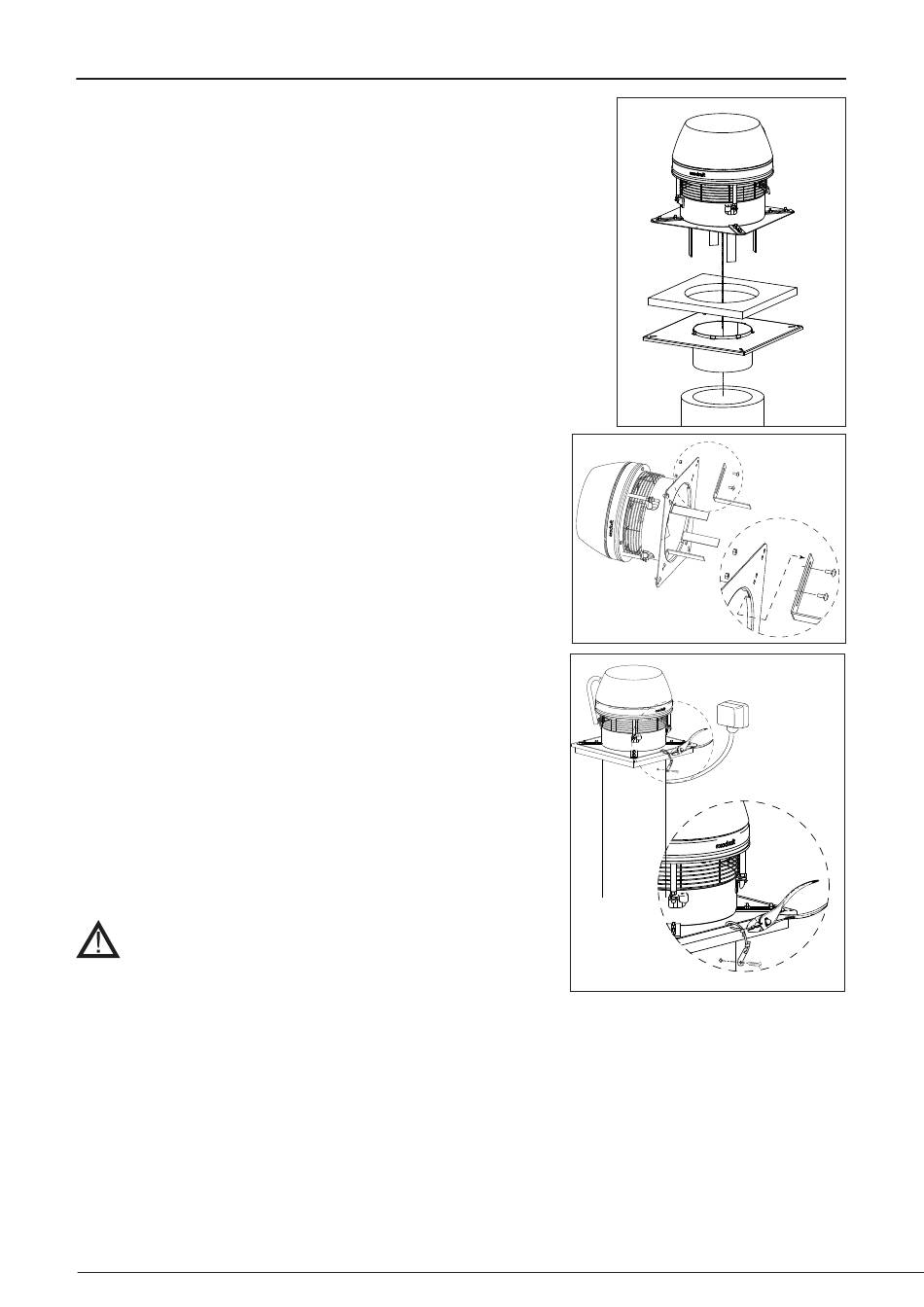

1.4.3 Single fan on steel chimney
Step 1: Prepare fan location
y If a chimney terminal is installed, it must be removed. The lange plate
slides into the chimney, where the long collar ensures safe anchoring of
the fan.
The vibration dampers delivered with the chimney adapter should not be
used to an RSHT chimney fan.
y Measure the inside diameter of the lue and cut a corresponding hole in
the middle of the mineral wool mat. If the chimney is so big that the throat
in the adapter has been reduced to it the throat of the fan, the hole in the
mineral wool mat should correspond to the throat.
The aluminium foil on the mineral wool mat must face upward (against fan base).
Step 2: Preparation of exodraft fan
y Locate the installation brackets in the slots going through the fan
base part, using the bolts and nuts supplied to secure the brackets.
If the lue diameter is larger than the chimney fan inlet, the bracket
can be installed underneath the base part. Note that the bolts must
be installed from the bottom side.
y
Adjust the inal position of the installation brackets ensuring that
there is a small gap between the brackets and the lue wall/adapter
throat. Approximately 5-10 mm.
y Tighten the nuts. Ensure the brackets do not touch the lue wall,
otherwise direct contact may generate vibration noise.
Step 3: Attaching the fan
y
The chimney fan is now ready for installation on the top of the
chimney.
y
Place the mineral wool mat with the aluminium foil facing upwards
on the top of the adapter, and place the fan on top of the mat.
y Mount the safety wire in the chimney. Use the supplied self-tapping
screw in the steel chimney. Then mount the wire through the hole
in the base plate and into the wire lock.
y Tighten the safety wire slightly and tighten the wire lock , so that
the chimney fan is secured when opened for service and cleaning
purposes.
NOTICE
The supplied steel wire should always be secured to the
chimney. The armoured cable must hang straight down
from the fan. When closing the fan, support the upper
part by hand.
