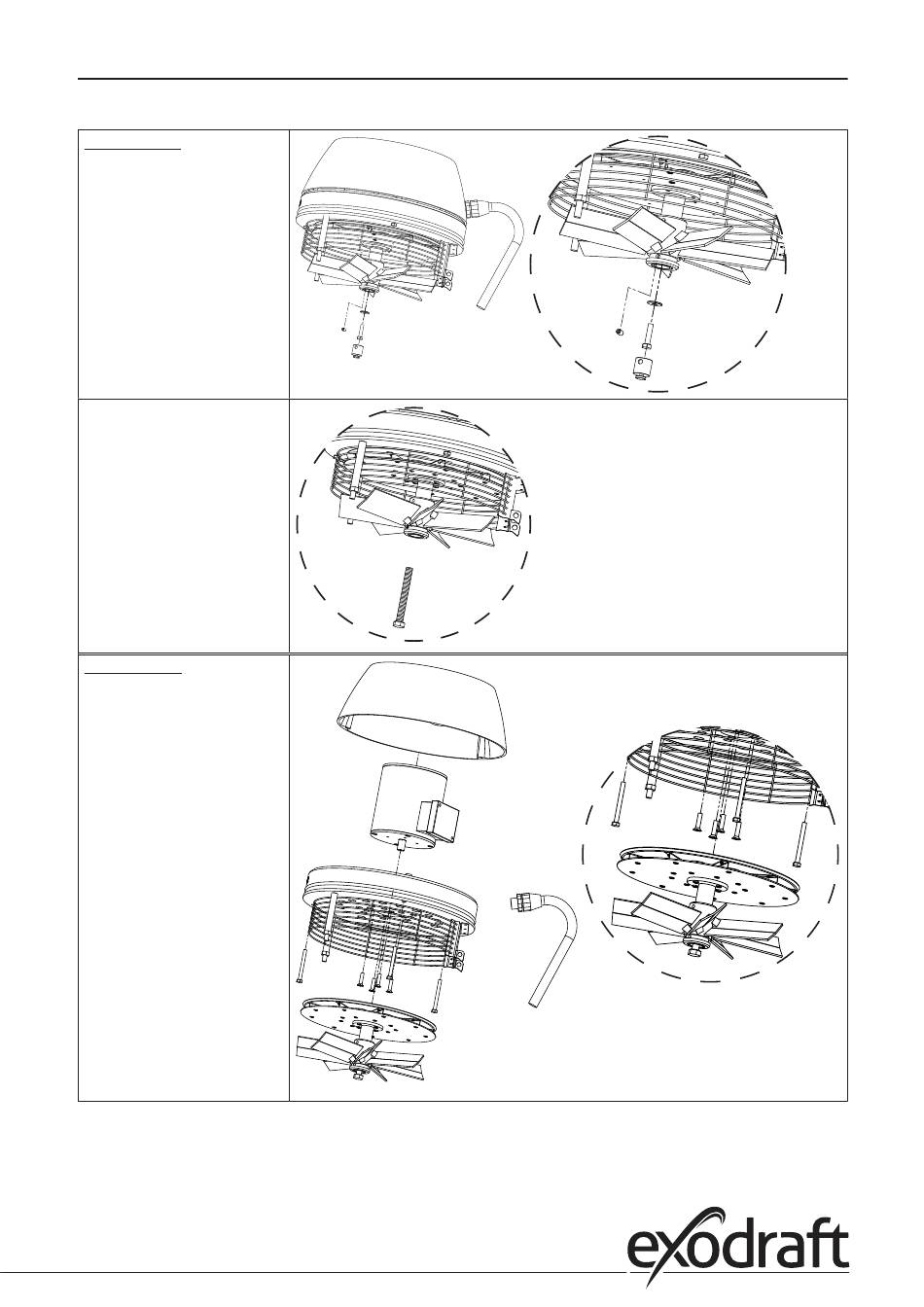

1.7.5 Replacing wheel and motor
Replace wheel
A. Loosen the insert hex screw
B. Pull the vane plug out
C. Unscrew and remove the
M6 bolt at the end of the
vane pipe axle
D. Use a M10 bolt min. length
140 mm. Thread length
minimum 40 mm.
Prevent the wheel from
turning.
As the bolt is screwed in the
wheel is pulled of the motor
axle.
Replace Motor
E. Loosen the cable gland
F. Remove the three screws
securing the top part
G. Remove the four screws
securing the motor
A
D
E
C
B
F
G
