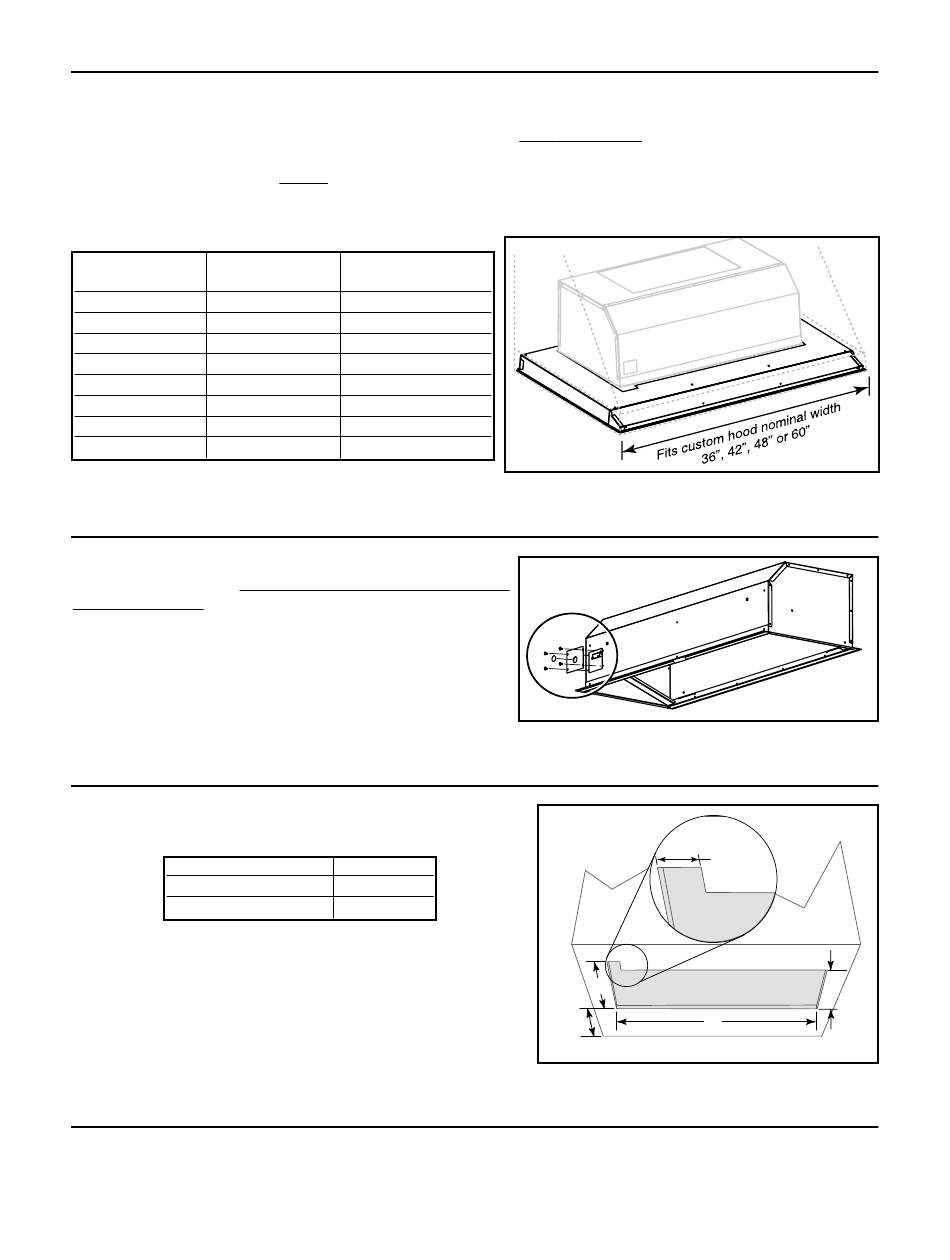

6. INSTALL CUSTOM HOOD LINER (OPTIONAL)
The liners are specially designed to protect the exterior base of the custom hood. To order, refer to the table
below to find the right liner model number for your insert and width of custom hood. To view specific model
information, including depths for each liner model, visit www.broan.com or contact Technical Support
Phone numbers listed on front cover). To install, see instruction packed with custom hood liner.
The liner must be installed before the insert.
NOTE: On some liners models, front liner piece may overlap front insert flange. If so, remove the front liner
piece, assemble insert, and reassemble front liner piece.
LINER MODEL INSERT MODEL
RML3336 RMIP33
RML3336S RMIP33
RML3342 RMIP33
RML3342S RMIP33
RML4548 RMIP45
RML4548S RMIP45
RML4560 RMIP45
RML4560S RMIP45
7. INSTALL THE RMIPWC REMOTE CONTROL (OPTIONAL)
The electrical connection for the remote control is located
in front of the insert. Perform this connection before the
insert installation. For installation details, see installation
instructions included with the RMIPWC remote control.
8. CUT THE HOLE IN CUSTOM HOOD BASE
If it is not done yet, cut a hole in the bottom of the cabinet,
using the dimensions shown beside.
INSERT MODEL NUMBER
RMIP33
RMIP45
NOTES: 1. The notch shown in the inset must be cut only if
the RMIPWC optional remote control will be
installed.
2.The recommended distance from the back to
the rearmost cutout edge is 2 1/4'' minimum.
9. INSTALL BLOWER (EXTERIOR OR INTERIOR)
INTERIOR BLOWER: Follow all subsequent steps of this manual.
EXTERIOR BLOWER: Refer to instructions packed with exterior blower and follow steps 13, 14, 16, 17,
19 and up of this manual.
CUSTOM HOOD
NOMINAL WIDTH
36''
36''
42''
42''
48''
48''
60''
60''
HA0038A
HL0044
A
32 1/2''
44 1/2''
- 6 -
3 1/2''
17 1/16''
2 1/4''
A
min.
HD0084
16 3/8''
