Orbit Merret OM 653UQC Mode D'emploi page 53

6.
3.1B
z

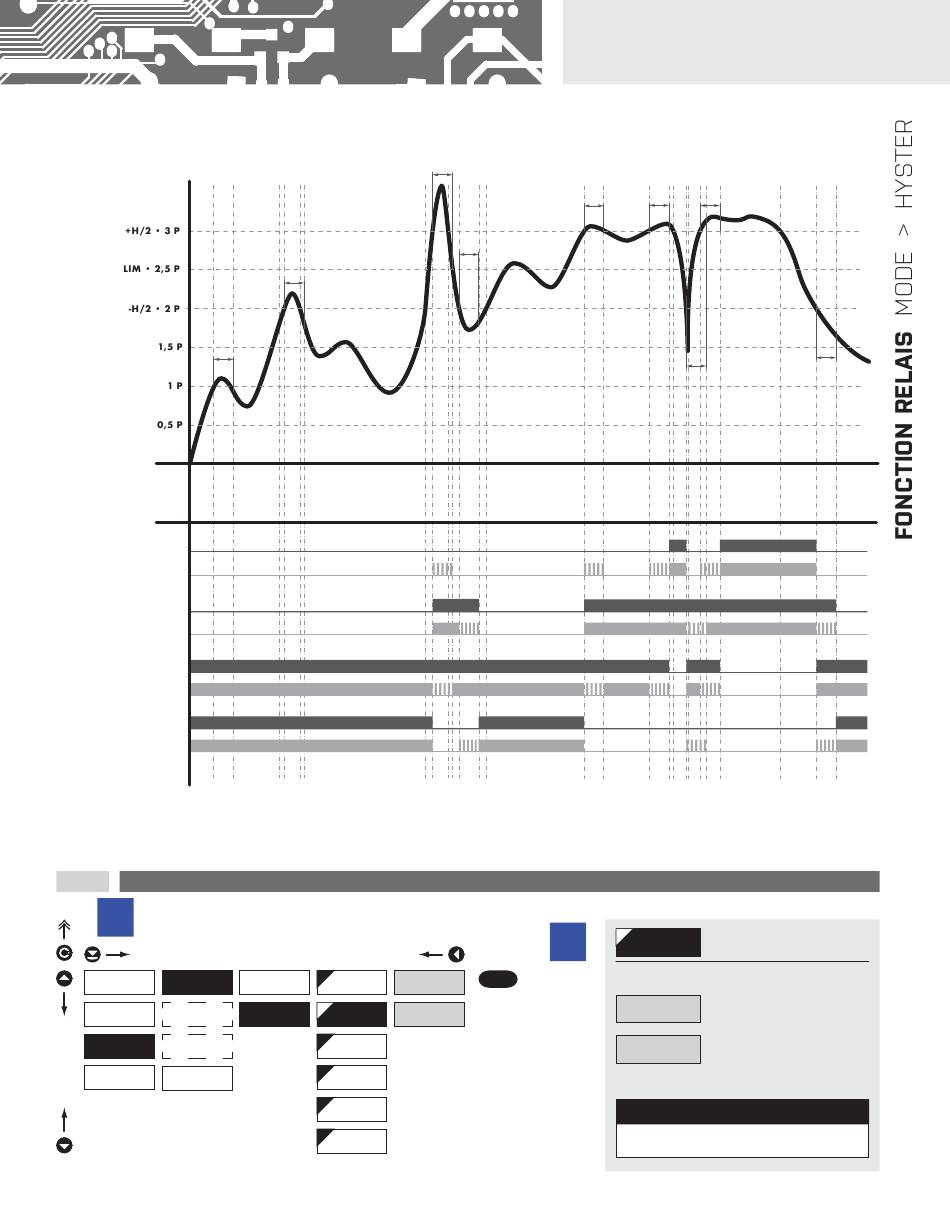

Limite/hystérésis/délais
Z > 0 - Relais type SWITH-ON
TYPE > SWITCH-ON
Indication de la LED
Z < 0 - Relais type SWITH-ON
TYPE > SWITCH-OFF
Indication de la LED
Z > 0 - Relais type SWITH OFF
TYPE > SWITCH-ON
Indication de la LED
Z < 0 - Relais type SWITH OFF
TYPE > SWITCH-OFF
Indication de la LED
6.3.1c SELECTION OF MODE OF OUTPUT L 2
INPUT LIMITS
CHANNE. DATA
OUTPUT AN. OUT.
SERVIC. DISP.
z
z
: MODE L. > "HYSTER"
LIM. 1 INP. L. 2 HYSTER.
LIM. 2 MOD. L. 2 ON RUN
TYP. L. 2
LIM. L. 2
HYS. L. 2
TIM. L. 2
CONFIGURATION PROFI
z
z
MOD. L. 2
DEF
HYSTER.
ON RUN
!
Setting is available only for LIM 2
z z
z
z
z - délais "TIM. L."
axe x > "LIM. L." limit, "H/2" hysteresis
Mode of limit 2
Standard mode - limit,
hysteresis and delay
Relay is switched on/off if
the stopwatch is running
MODE D'EMPLOI OM 653UQC | 53
6.
t
