SETTIN.
SETTIN.

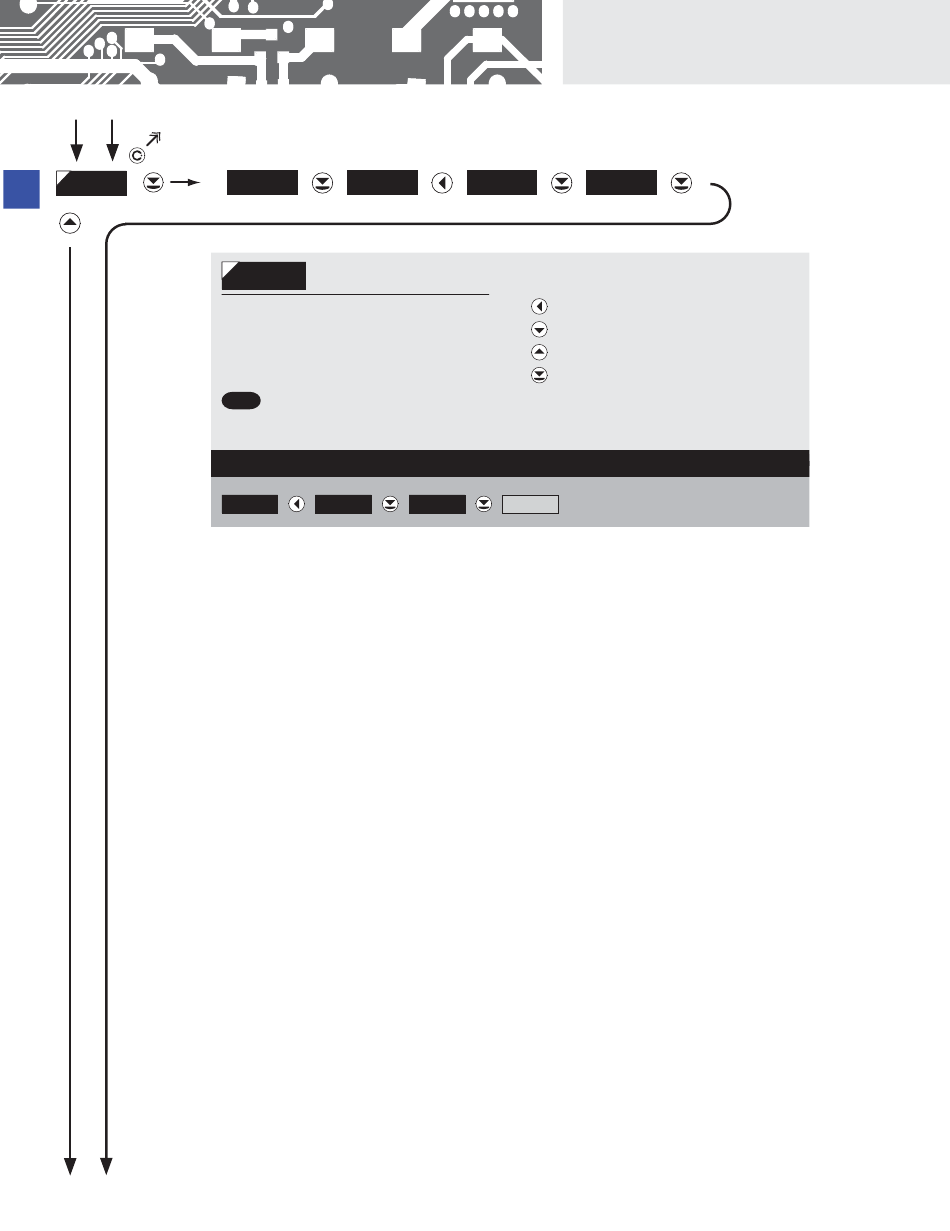

- it is posible to choose in the menu between
automatic or manual setting for input A and B
- for automatic detection the minimum frequency
required is 10 Hz
DEF
In this example application we are using encoder Wenglor, model IB040BM37VB, type PNP powered by
the instrument's own excitation of 24 V, reset on contact. Settin. > Automatic setting (button „LEFT")
A= NPN
YES A= NPN
Automatic setting of the
inputs
= NPN.CON.
A= 24_ B= NPN
CONFIGURATION LIGHT
A= 24_ B= 24_
start of automatic input setting
manual input setting - down
manual input setting - up
confirm the setting and proceed to second
input (short key stroke)
to copy the setting of Input A to Input B
(long key stroke)
SCAL. C
Example
