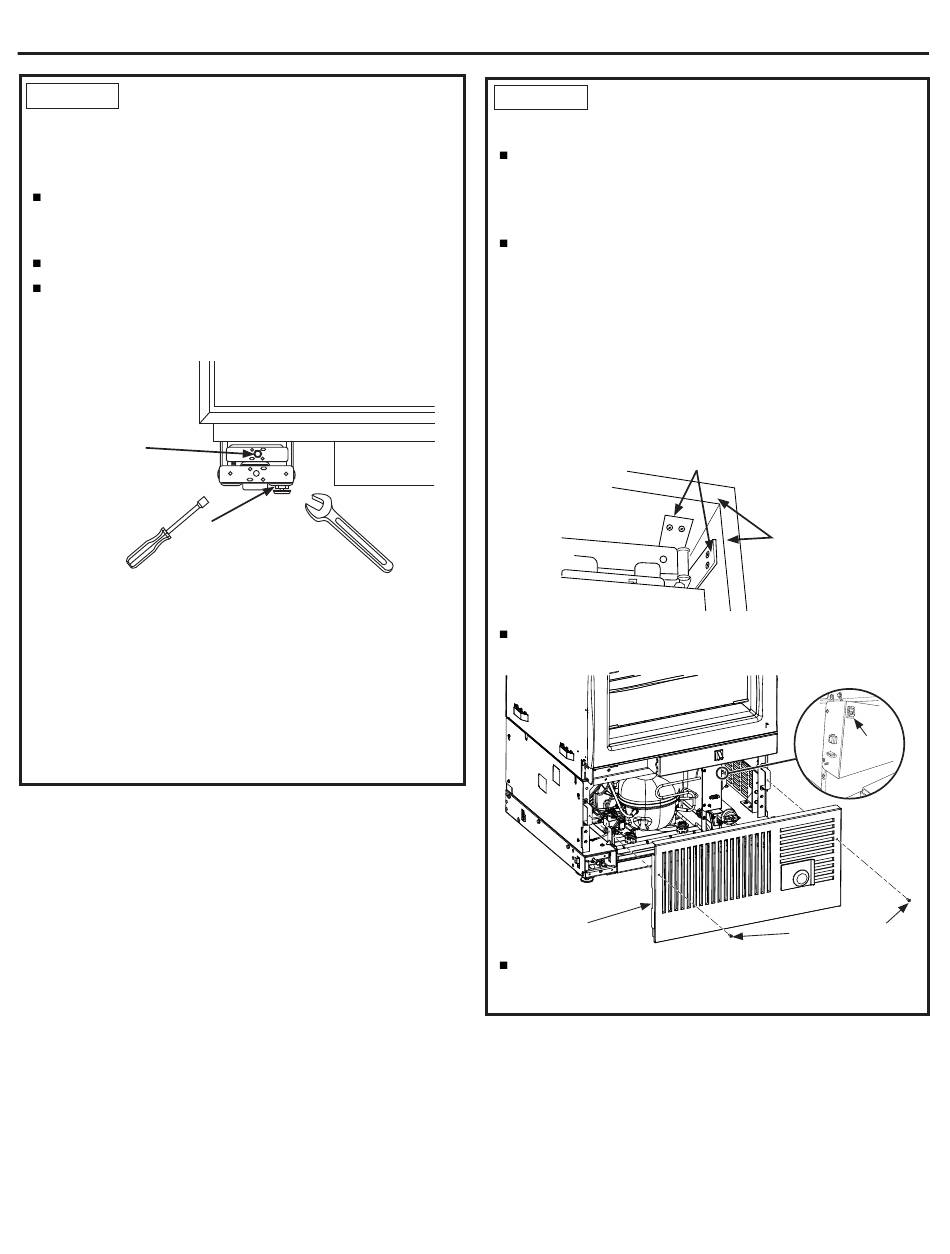

STEP 8 LEVEL UNIT

All models have 4-point leveling. The front is supported
by leveling legs; the rear is supported by adjustable
wheels. Both are accessible from the front of the unit.
To level the back of the unit, turn the 7/16" hex nut
located above the front wheels. Turn clockwise to
raise or counterclockwise to lower the unit.
For front leveling, use a 7/16" open-end wrench.
Adjust height of unit to match installation cutout
opening 84". The unit should be level and plumb with
cabinetry.
Hex nut adjusts
rear wheels
Open-end wrench
adjusts front
leveling legs
NOTICE: The rear leveling wheels and front leveling
legs are limited to a maximum height adjustment of 1".
If the installation requires more than 84" height, the
installer should elevate the unit on a sheet of plywood
or runners. Cabinetry trim could also be added across
the top of the opening to shorten the opening. If you
attempt to raise the unit more than 1", you will damage
the front leveling legs and the rear leveling wheels.
31-49133-1
STEP 9 FINAL EXTERNAL UNIT
PREPARATION
FOR FLUSH INSTALLATION:
surface of the door is 7/8" behind front face of
surrounding cabinets BEFORE securing brackets to
the surrounding cabinetry.
Secure stabilization brackets by predrilling 1/16"
holes in both the side and top surround 1/2" deep
through holes in the bracket. Drive 4 No. 6 Phillips
head screws to secure the unit stabilization bracket
to surrounding cabinetry. NOTE: This step does NOT
replace the anti-tip safety hardware. Refer to Step
4 Installing Anti-Tip Bracket and Step 7 Inserting/
Securing into Cabinet Surround for details on
installing the anti-tip hardware. Repeat for the second
unit.
Stabilization Bracket already
installed to unit
Open doors to make sure lights are on. If they are
not on, check to make sure the master switch is on.
Front Access
Cover
Install front access covers by replacing 2 T20 Torx
screws on each cover.
15
Make sure front
Cabinet
surround
Master
Switch
T20 Torx Screws
