Parts and their functions

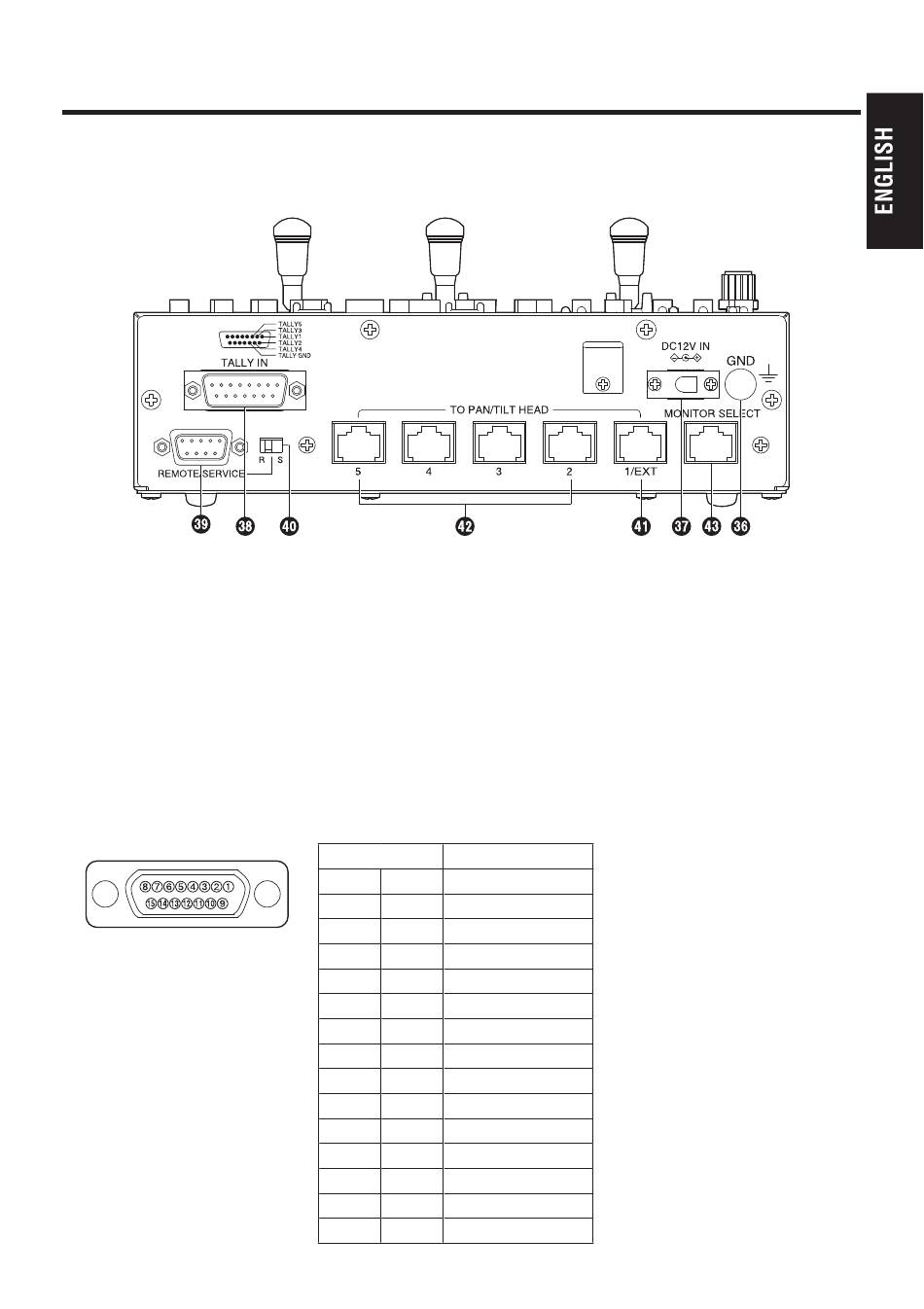

wRear connector panel
) GND terminal
Use to ground the unit.
* DC 12 V IN terminal
Connects the AW-PS505A AC adapter (sold separately).
+ TALLY IN connector
Connect this to the TALLY connector on the video switcher or other units.
When the TALLY connector is set to the GND level, the TALLY lamp () lights. Do not
apply a voltage in excess of 5 V to this connector.
Pin layout as seen from the
back of AW-RP555
Pin No. Signal Name
1 TALLY1
9 TALLY2
2 TALLY3
10 TALLY4
3 TALLY5
11 TALLY GND
4 –––
12 –––
5 –––
13 –––
6 –––
14 –––
7 –––
15 –––
8 –––
16 (E)
