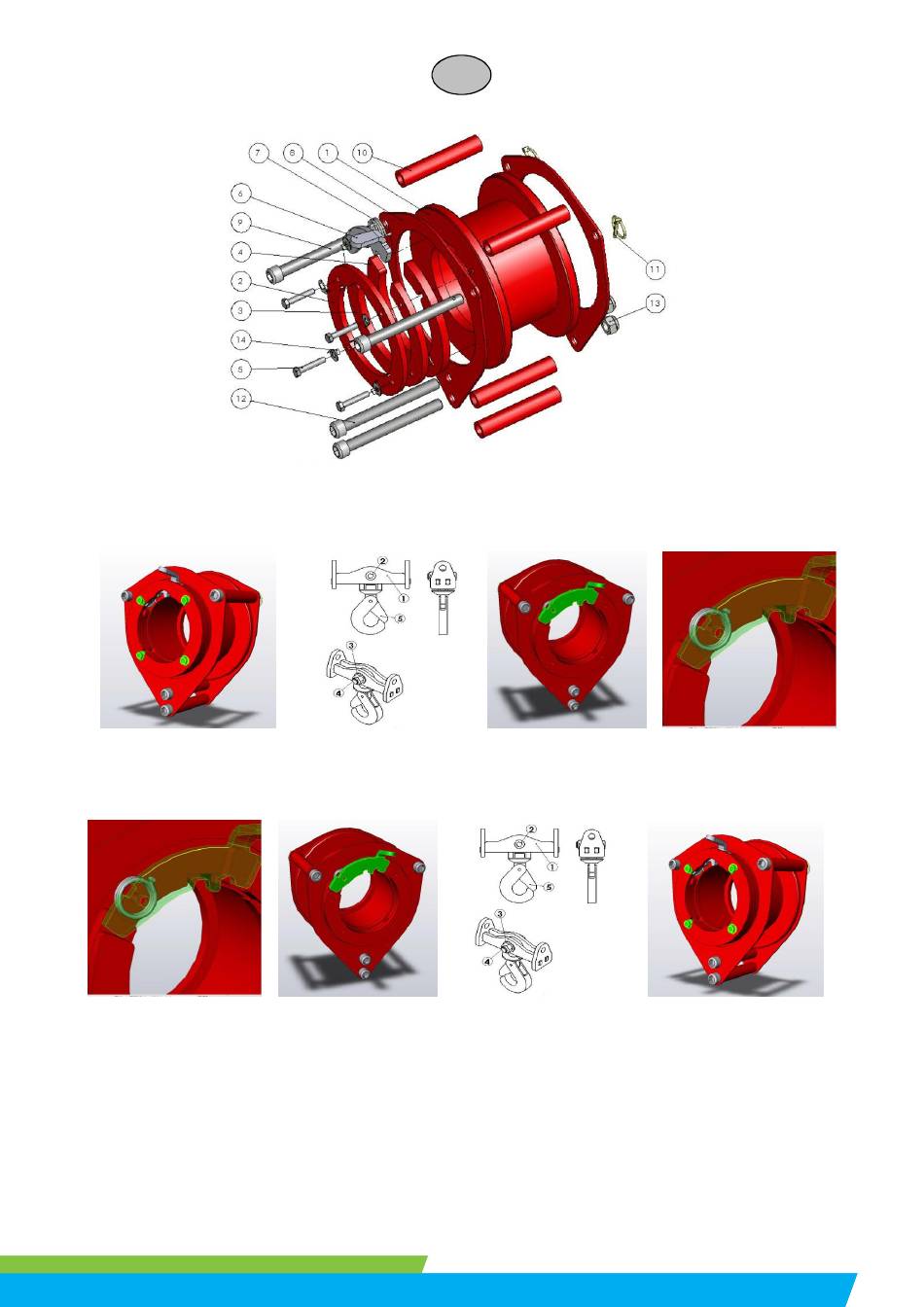

REPLACEMENT OF THE INDEXING LEVER OF THE PULLEY

To remove the indexing lever & spring.
Unscrew the 4 screws (5)
Remove the FTE
et FTE washers (14), Remove the lever (6) Remove the spring (7)
washer (14)
remove the ring (2)
To install the new lever, proceed as follows.
Positions the ring (2) and
Position the FTE
screw the 4 screws (5) with
Position the spring (7) Position the lever (6)
washer (14)
FTE washers (14)
M 6067 M
