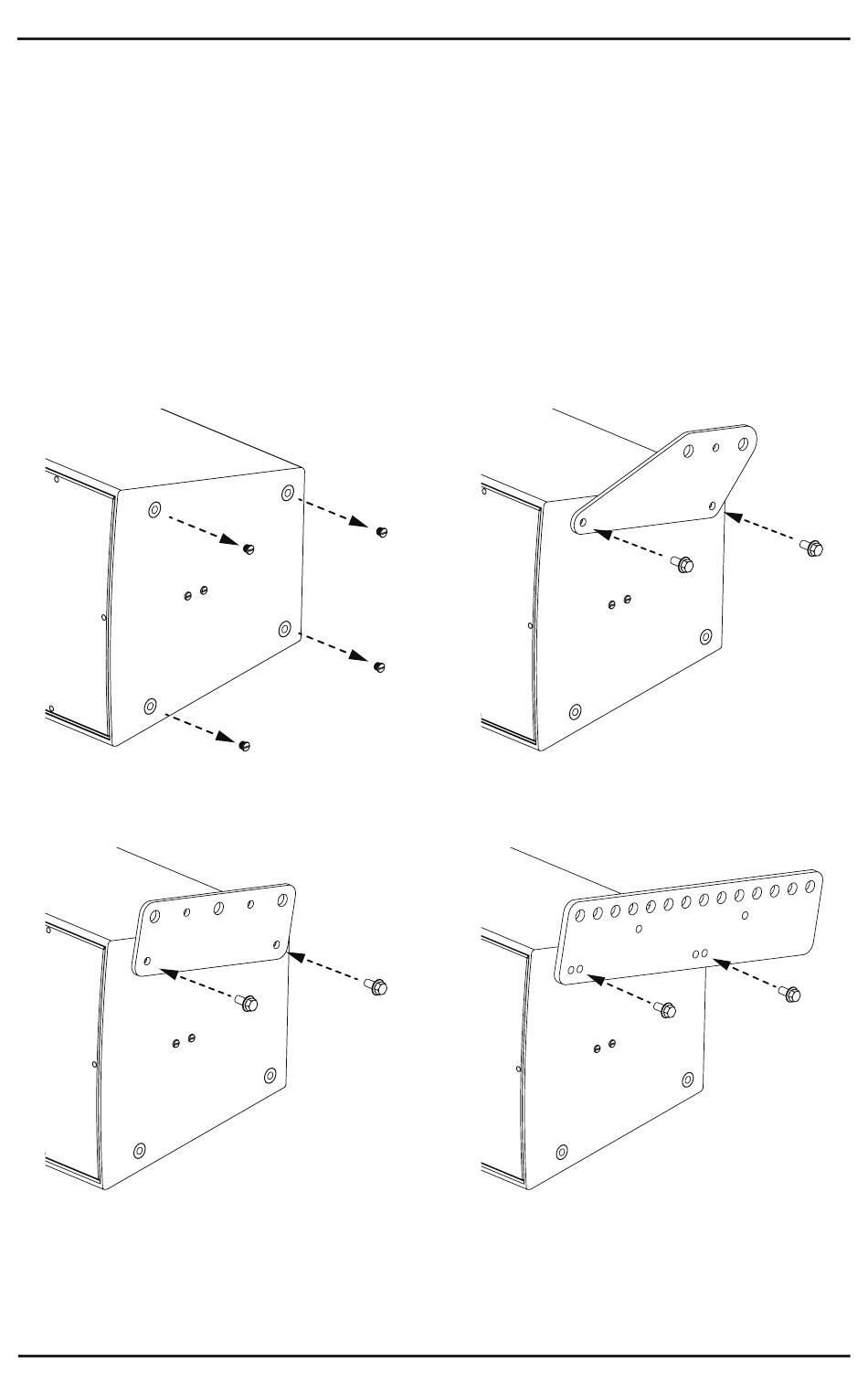

Connecting Array Plates to a Loudspeaker Module
1.
Remove the plastic plugs from the loudspeaker module on either side of the
module.
2.
Line up your array plate with the open inserts on either side of the module.
Note: If using a long array plate, determine which attachment holes and orientation
to use based on your array design.
Note: If using a pullback bracket as an array plate, determine which orientation to
use based on your array design.
3.
Using the included M12 screws and washers, secure the array plate to the module.
Note: Torque screws to 40.7 newton·meters (30 pound·feet).
w
14 • English
q
e
ArenaMatch Rigging Accessories • Installation Guide
