ENGLISH

Installation

NOTE: Installation must be performed by competent personnel in accordance with the authorities involved and
in compliance with all applicable regulations and standards.

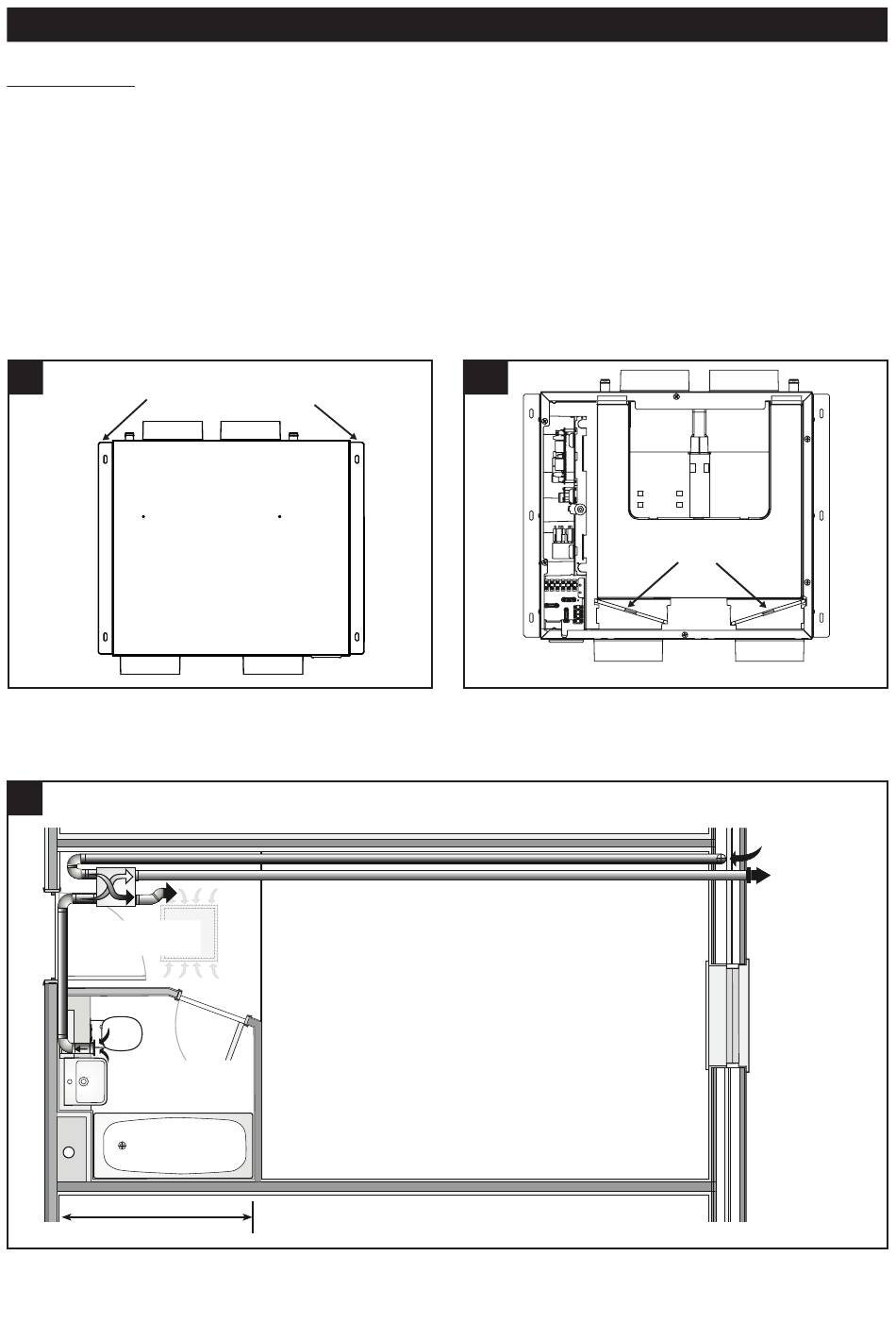

When the unit position has been decided, secure it with the 2 fixing brackets levelled . Use screws suitable for
the surface on which it is fixed.
NOTE: For better air distribution on the surface of the filters, insert them as shown in fig. 2A.
NOTE: During installation, do not place the product with the side of the electronic card facing the wall, as it
could create problems during maintenance.
2
FIXING BRACKETS
Installation example:
3
AIR TOWARDS
IMMISSIONE ARIA
INDOOR
ALL'INTERNO
DIRTY AIR EX-
ESTRAZIONE ARIA
VIZIATA DAL BAGNO
TRACTED FROM
BATHROOM
2100mm
2A
FILTERS
FRESH AIR
ENTRATA
INLET
ARIA FRESCA
AIR EXHAUST
ESPULSIONE
ARIA VERSO L'ESTERNO
TOWARDS
OUTDOOR
