Motorised security lock

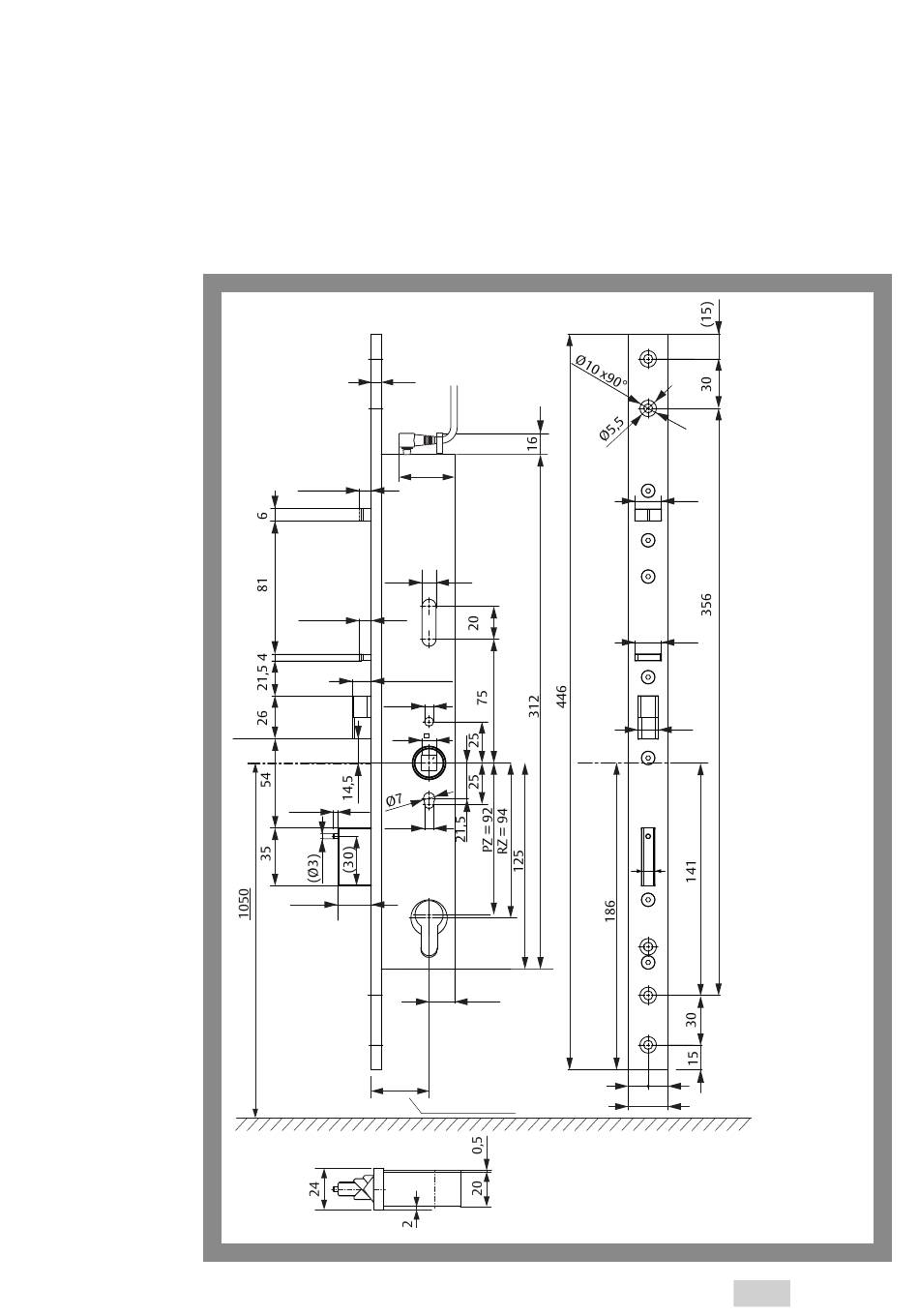

509N dimensions

Technical data

Technical data

Dimensions

(9,5)7,5
(9,5)7,5
(2,5)
20,5
6
40,5
8,5
11,5 (13,5)
Ø5,5
9
5,5
15,5
Backset
() Values in parentheses only apply to "two-leaf"
versions with protruding keep (2 mm).
16
16
12
8
= =
24
