Electrical
connection,
fig. page 6
11
Install the relay with the
connection terminals facing
downwards and splash-proof.
If required and permitted
by legal regulations, install
a switch (see accessories) on
the dashboard or one specially
designed for your vehicle.
Disconnect the battery earth
cable (-) for safety reasons.
Lay the cables in accordance
with one of the 4 circuit
diagrams and connect.

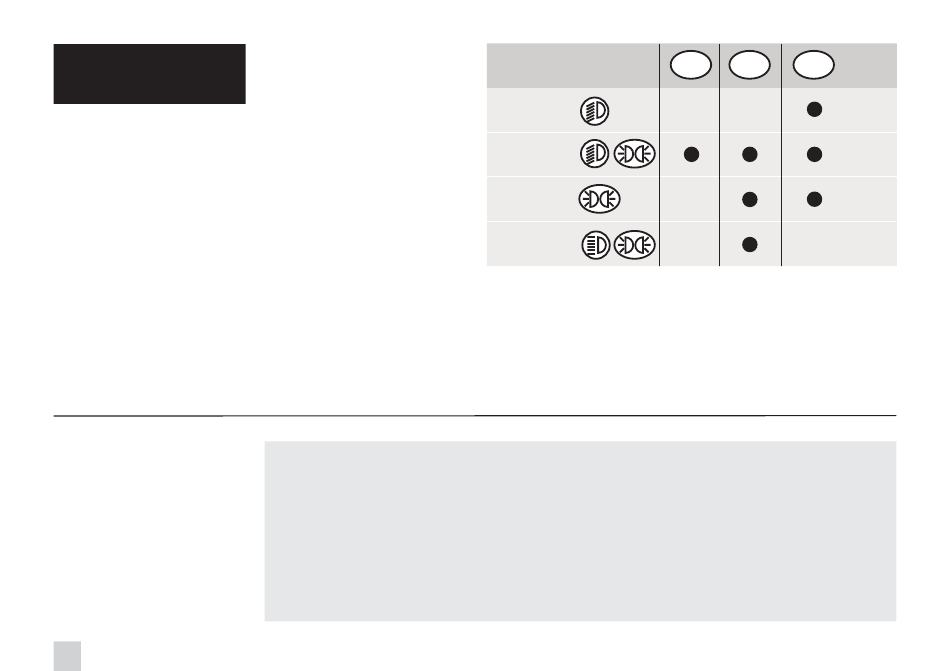

Which light functions fog
lights can be combined with
can be seen in the adjacent
table, which shows examples
for Austria, Switzerland and
Germany.
National laws must always
be observed, however.
Another tip:
• Always keep headlight lenses
clean. Dirt can swallow up to
80% of light power. You drive
safely when you can see and
be seen well.
Do you carry spare bulbs and
fuses in your vehicle?
Dipped beam
Dipped beam
and
position light
Position light
Main beam
and
position light
Reconnect the battery earth
cables (-). Check the lighting
system.
Attach the connection cables
securely.
• If you have any questions
or installation problems:
Call Hella Customer Services:
• Outside normal working hours
an answering machine will
record your inquiries and
requests and Hella Customer
Services will then get back to
you.
A
CH
D
C max.
400 mm
C max.
400 mm
Have the fog lights set by
a specialist garage.
Only correctly set headlights
ensure optimum light.
Ask your dealer for the
complete Hella brochure
or write to:
Hella KGaA Hueck & Co.
59552 Lippstadt/Germany
