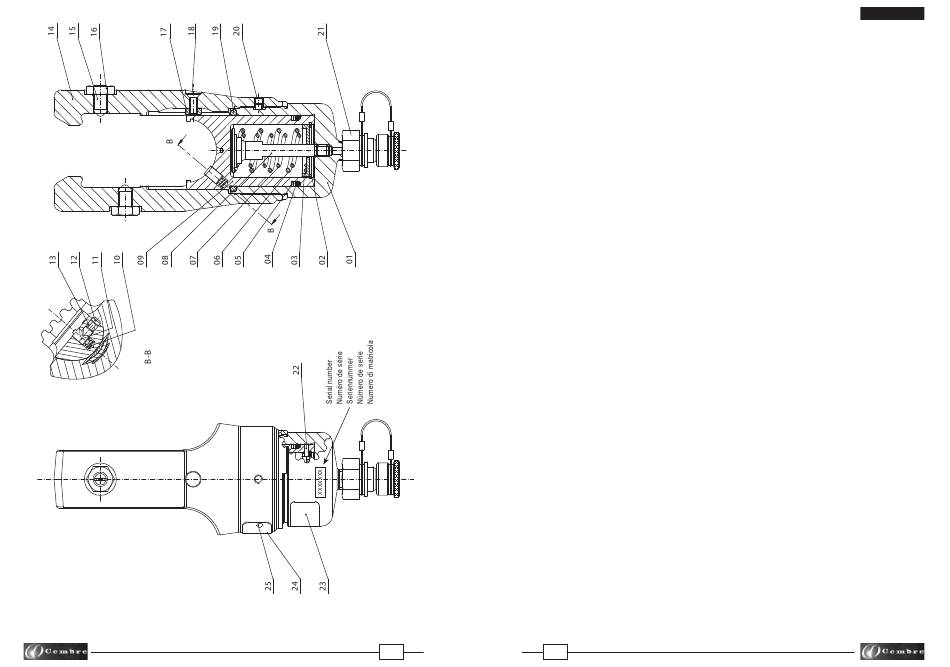

FIG. 6
LONGITUDINAL SECTION - COUPE LONGITUDINALE - SCHNITTZEICHNUNG -
SECCION LONGITUDINAL - SEZIONE LONGITUDINALE

1. GENERAL CHARACTERISTICS

Suitable for compression of electrical connectors on conductors up to 400 mm
aluminium conductors up to 300 mm
– Crimping force: ................................................................................................................. 130 kN
– Max operating pressure: .............................................................................................. 700 bar (10,000 psi)
– Oil necessary (displacement): ..................................................................................... 47 cm
– Dimensions: length ........................................................................................................ 245 mm (9.65 in.)
– Weight: ................................................................................................................................. 3,7 kg

2. APPLICATION RANGE

2.1)
The RHU131-C head is supplied with the AU130-C adaptor, which will accept semicircular
slotted dies common to Cembre 130 kN (14.6 sh ton) tooling suitable for:
– Indentation on copper conductors.
– Circular compression on copper conductors.
– Hexagonal compression on copper, almelec or aluminium conductors.
2.2)
With the upper adaptor AU130-... and lower adaptor AC130-P, the RHU131 or RHU131-C head
will accept:
– Pre-rounding dies UP130-... (used for converting aluminium sectoral conductor to a compact,
round section).
– Containing dies (MV, MVC, MVM, MUA series) and the indentors PS130-.../E
(to crimp connectors on aluminium cables using the deep indent crimping system).
3. INSTRUCTIONS FOR USE
These instructions generally refer to the RHU131-C head, but are also suitable for the RHU131 head,
fi tted with AU130-... and AC130-P adaptors (regardless of die selected).
3.1) Setting
The head is equipped with a "self-lock" quick male coupler suitable for connection to a hydraulic,
pneumatic or electrical pump from the Cembre range.
*
The RHU131-C head is the RHU131 head fi tted with adaptor AU130-C (Ref. to Fig. 2).
30 3
HYDRAULIC PRESSHEAD
RHU131 and RHU131-C *
2 (600 MCM).
width .......................................................................................................... 89 mm
(Ref. to Fig. 2 and 3)
ENGLISH
2
(800 MCM) and
(14.6 sh ton)
3 (2.9 cu. in.)
(3.5 in.)
(8.16 lbs)
