Connections

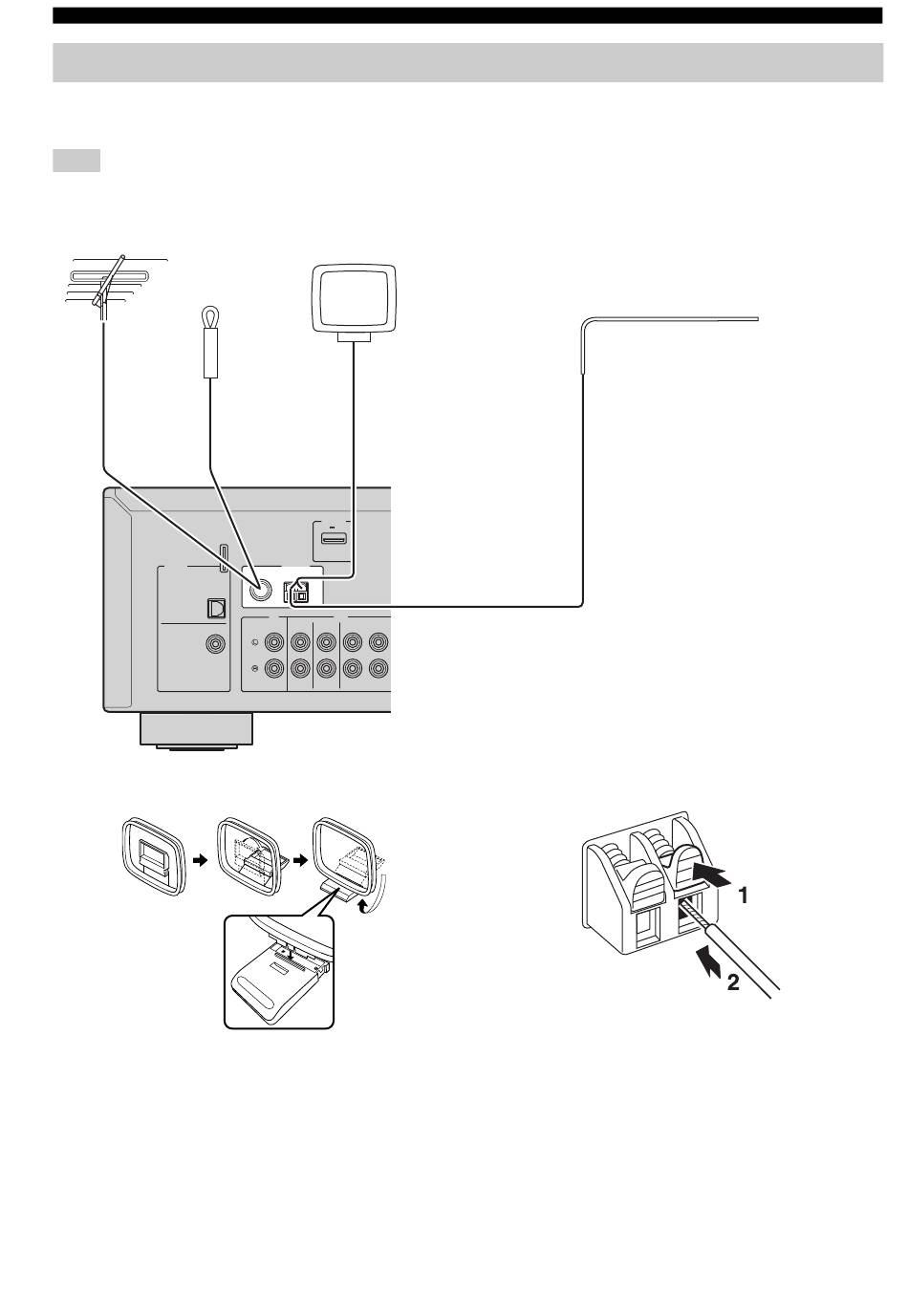

Connecting the FM and AM antennas

The antennas for receiving FM and AM broadcasts are included with this unit. In general, these antennas should provide
sufficient signal strength. Connect each antenna correctly to the designated terminals.
Note
If you experience poor reception quality, install an outdoor antenna. Consult the nearest authorized Yamaha dealer or service center
about outdoor antennas.
Outdoor FM antenna
FM antenna
(included)
DIGITAL
OPTICAL
COAXIAL
■ Assembling the supplied AM antenna
12
En
AM antenna
(included)
• The AM antenna should
always be connected, even if
an outdoor AM antenna is
connected to this unit.
• The AM antenna should be
placed away from this unit.
DC OUT
5V
0.5A
ANTENNA
FM
AM
75 Ω
CD
LINE
PB
REC
1
2
3
Outdoor AM antenna
Use 5 to 10 m of vinyl-covered wire
extended outdoors from a window.
■ Connecting the wires of the AM antenna
