Controls And Functions; Front Panel - Yamaha R-N301 Mode D'emploi

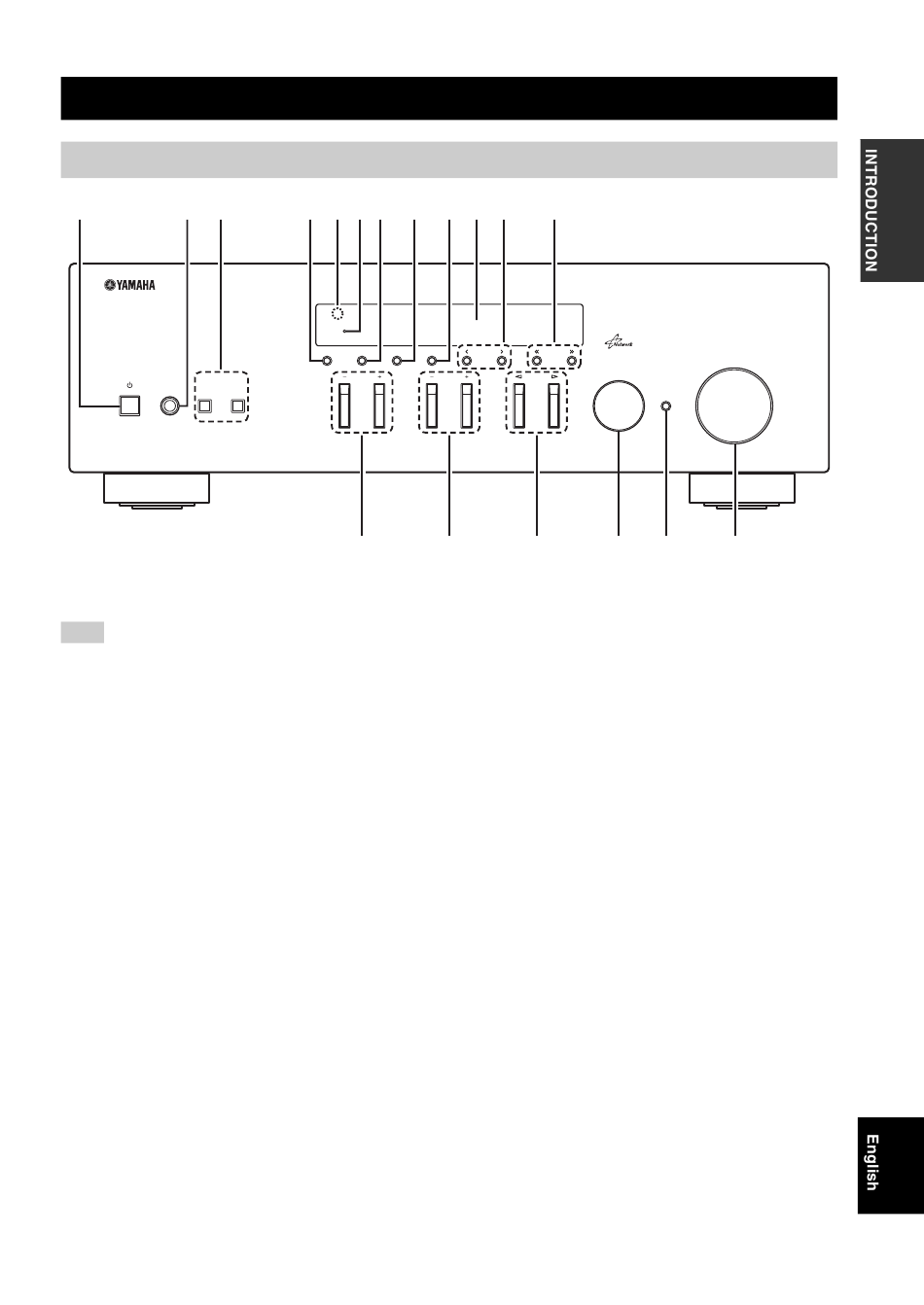

Front panel

1 2 3
PHONES SPEAKERS
A
1 A (power)
Turns on/off (standby) the unit.
Note
In standby mode, this unit consumes a small amount of power to
receive infrared signals from the remote control.
2 PHONES jack
Outputs audio to your headphones for private listening.
3 SPEAKERS A/B
Turns on or off the speaker set connected to the
SPEAKERS A and/or SPEAKERS B terminals on the rear
panel each time the corresponding button is pressed.
4 DISPLAY
Selects the information displayed on the front display
(p.29).
5 Remote control sensor
Receives infrared signals from the remote control.
6 STANDBY/ON indicator
Lights up as follows:
Brightly lit: Power is on
Dimly lit: Standby mode
7 FM MODE
Set the FM band reception mode to automatic stereo or
monaural (p.17).
8 MEMORY
Stores the current FM/AM station as a preset when
TUNER is selected as the input source (p.18).

Controls and functions

4 5 6 7 8 9 : A
STANDBY/ON
DISPLAY FM MODE MEMORY
BASS
B
C
B
FM/AM PRESET TUNING
TREBLE INPUT
D E
9 FM/AM
Switch between FM and AM (p.17).
0 Front display
Shows information about the operational status of this
unit.
A PRESET j / i
Selects a preset FM/AM station when TUNER is selected
as the input source (p.19).
B TUNING jj / ii
Selects the tuning frequency when TUNER is selected as
the input source (p.17).
C BASS +/–
Increases or decreases the low frequency response. The
center position produces a flat response (p.16).
D TREBLE +/–
Increases or decreases the high frequency response. The
center position produces a flat response (p.16).
E INPUT l / h
Selects the input source you want to listen to.
F SELECT/ENTER (jog dial)
Turn the dial to select a numeric value or setting, and press
the dial to confirm.
G RETURN
Returns to the previous indication of the front display.
H VOLUME control
Increases or decreases the sound output level.
Controls and functions
VOLUME
SELECT
PUSH - ENTER
RETURN
F G H
