For more information about battery charger configuration, consult the User's manual for the battery charger
used.
INSTRUMENT OPERATION
Before attempting to turn on the instrument, make certain the dip - switch is set to the correct position. After
hooking up the instrument to the power supply, the display screen and all the leds come on for two seconds. If
the connections are correct, led LINK will stay on and the instrument will show information about the battery
charger.

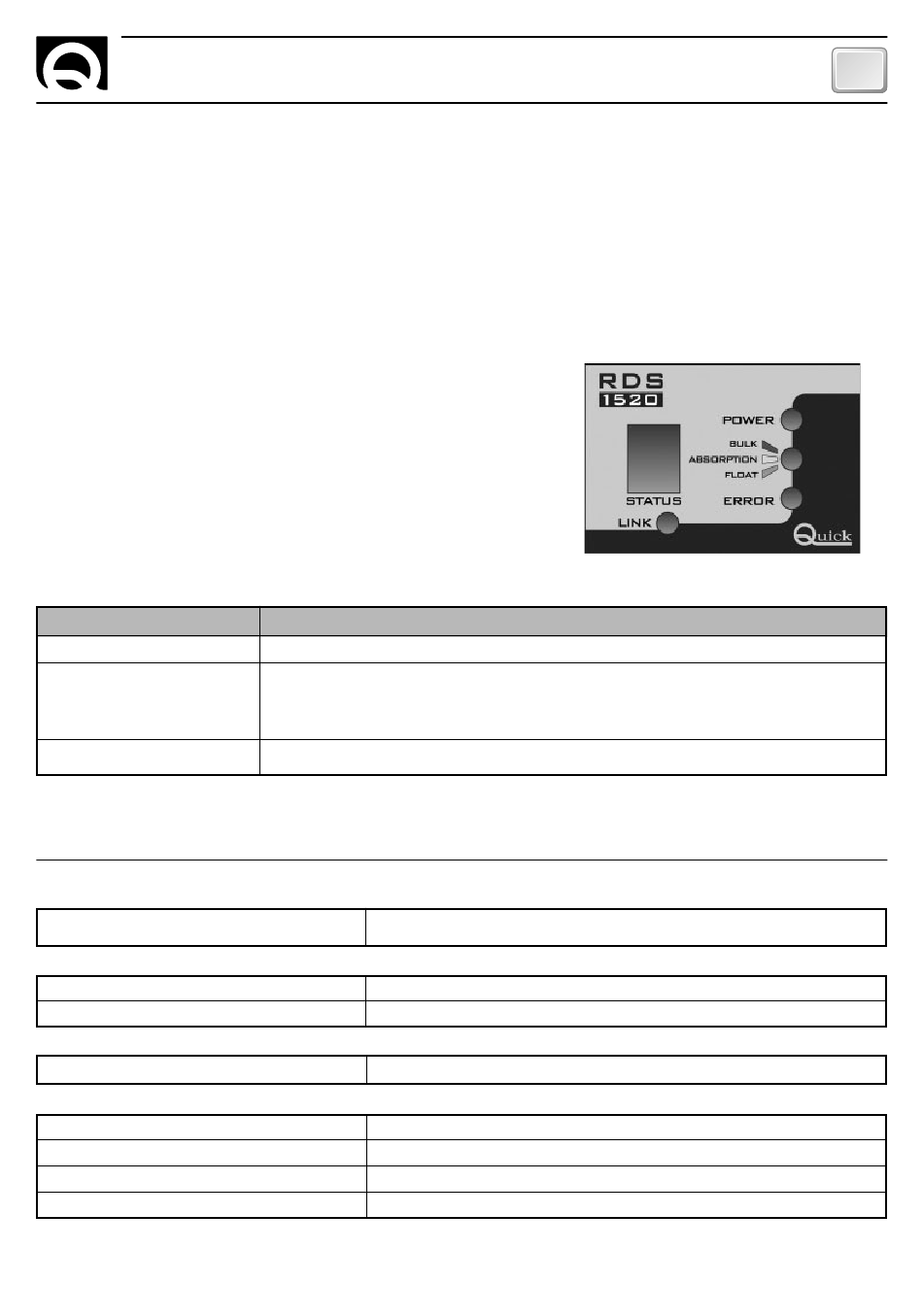

CONTROL PANEL
The control panel consists of 4 leds and a 7 digit value:
led POWER,
led CHARGE PHASE (bulk, absorption, float),
led ERROR,
led and digit value
LINK
LED LINK
LED STATUS
On (yellow)
Led flashes slowly
Led flashes quickly
• For a detailed description of the POWER, CHARGE PHASE and ERROR leds, consult the User's manual for
the battery charger.
TECHNICAL DATA
MODEL
INPUT CHARACTERISTICS
Supply voltage
(1)
Maximum absorption
AMBIENT CHARACTERISTICS
Operating temperature
GENERAL
Dimensions (W x H x D)
Weight
Communication interface
Classe EMC
(1) The instrument can reset itself at a voltage less than 8 Vdc.
®
QUICK RESERVES THE RIGHT TO MODIFY THE TECHNICAL CHARACTERISTICS OF THE EQUIPMENT AND THE CONTENTS OF THIS MANUAL WITHOUT PRIOR NOTICE.
RDS 1520 - REV003A
OPERATING - TECHNICAL DATA
.
STATUS
DESCRIPTION
Link present.
If the battery charger is turned off, the led should be in this state.
If the battery charger is turned on, try switching the instrument off and on, check the data
transmission cable connection, the group configuration, the priority and CAN termination.
Dip-switch in wrong position
RDS 1520
from 8 to 30 Vdc
100 mA
from -20 to + 70° C
60 mm x 65 mm x 20 mm
60 g
CAN BUS with differential transceiver
EN 61326-1 - EN 55011-B - FCC part 15 rules 47
