Aquatec® R / F / XL

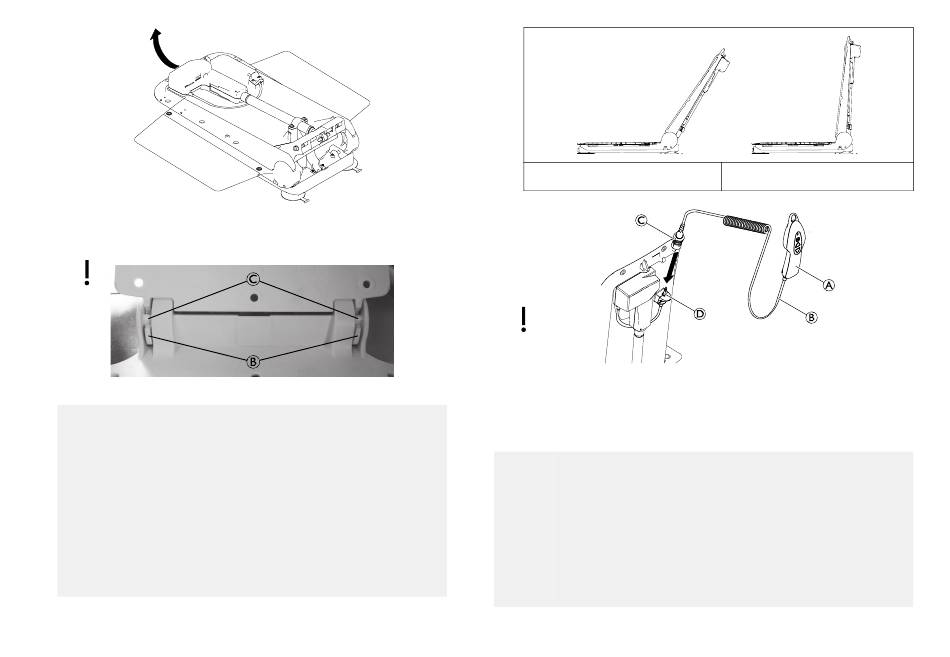

Hold the backrest at the center of the head end and
carefully fold the backrest up to the end position.
Risk of Damage
Damage to the product due to incorrect
assembly of the backrest.
– Make sure that both hooks B of the
backrest engage into the hinges C of the
seat plate.
– Make sure that the backrest is folded up to
the end position without exerting force and
noticeable resistance. The end position is
indicated in the following graphic.
14
Fig. 4-7
Fig. 4-8
R / XL
7.
To connect the hand control A with the bath lift, plug
the jack socket with the unlocking sleeve C to the jack
plug D until the locking mechanism engages noticeably.
Risk of Damage
– Make sure that the backrest doesn't touch the
bathtub edge.
– Place the bath lift further forwards in the
bathtub, if necessary. To place the bath lift
further forwards in the bathtub lower the bath
lift to the bottom, loosen the suction cups and
then move the bath lift.
F
Fig. 4-9
