3.

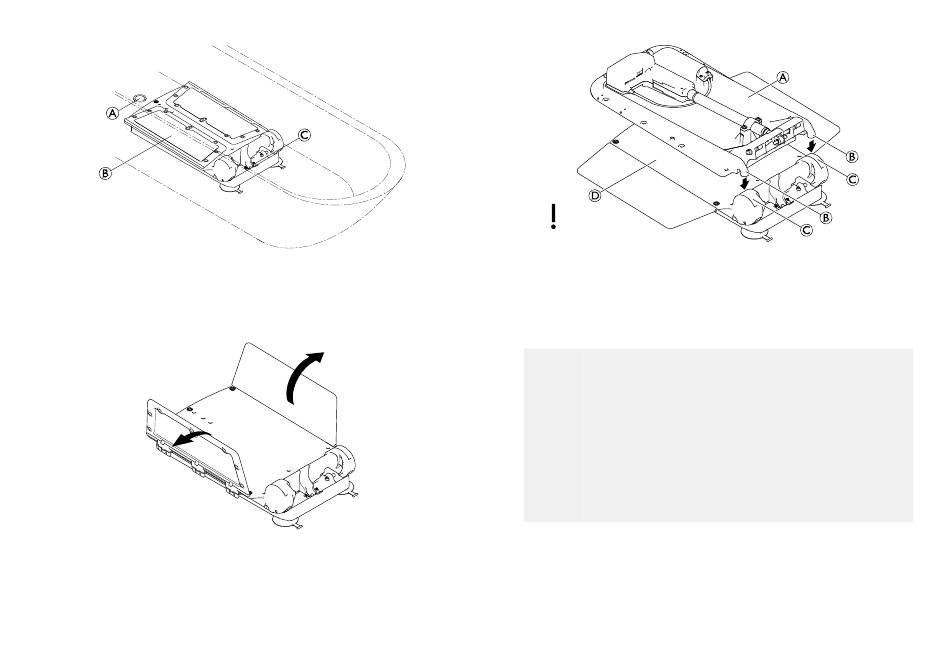

Place the seat B on the bottom of the empty bathtub.
Ensure that the spindle foot retainer C is pointing
towards the end of the bathtub opposite the drain A.
4.
Fold the side flaps of the seat outwards.
1574470-E
Fig. 4-4
Fig. 4-5
5.
Place the backrest A (without the hand control) onto
the seat so that the hooks B of the backrest fit into the
hinges C of the seat plate D.
6.
Risk of Damage
Damage to the product caused by the spindle
foot slipping out.
– Make sure that the spindle is fully retracted
and the spindle foot is level and not
twisted, before folding up the backrest.
– Once the backrest is folded up, ensure
that the spindle foot is in the spindle foot
retainer.
