Aquatec® R / F / XL
Seat
A Side flap
B Seat plate
C Hinge for backrest
D Lifting scissors
E Spindle foot retainer
10

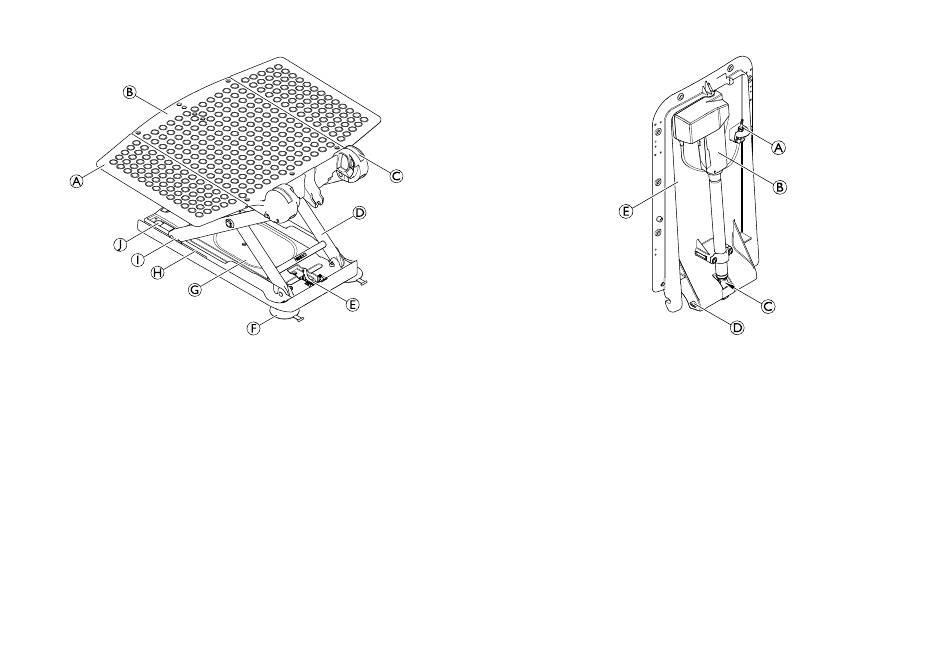

Fig. 3-2
F Rear suction cups (with
thread)
G Base plate
H Guide for the sliding shoe
I Sliding shoe
J Front suction cups (one
tab with head)
Backrest
A Jack plug
B Drive
C Spindle foot
Fig. 3-3
D Locking pin
E Plate, backrest
