D Tub width 580 - 690 mm (with special side flaps)
(outside)
700 - 740 mm (with standard side
flaps)
750 - 1000 mm (with special side
flaps)
E Tub height ≤ 420 mm
(inside) (with height adapter, max. + 60 mm)
Risk of Damage
– Ensure that the suction cups are mounted
properly.
– Ensure that the battery in the hand control is
charged.
– When lifting bath lift components, remember
to correctly assess the weights, refer to 10.1
Dimensions and weight, page 27.
– If a handrail is mounted at the inside of the
bathtub, use the side flap diverters (available
as an accessory).
– Fold the side flaps outwards before folding up
the backrest.
1.
12

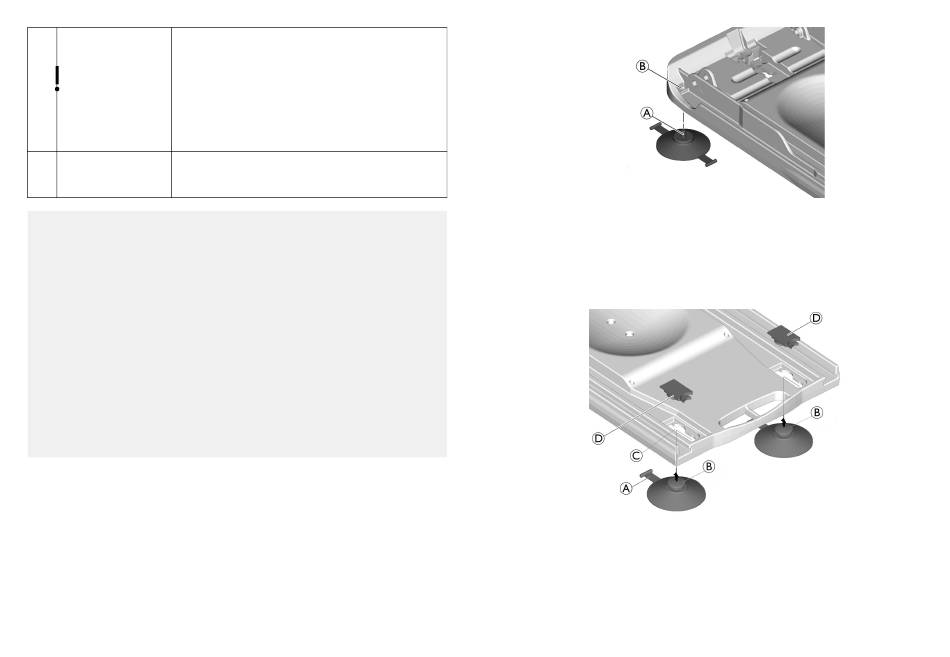

Put rear suction cup with threaded bolt A on sleeve
nut B and screw it in.
Screw as far as the suction cup fits the orientation on
the graphic.
2.
Put toggle A through keyhole bore C and place it in
the corresponding recess.
Feed head of suction cup B through bore C and pull
the suction cup forwards.
Fix suction cup with red lid D.
Fig. 4-2
Fig. 4-3
