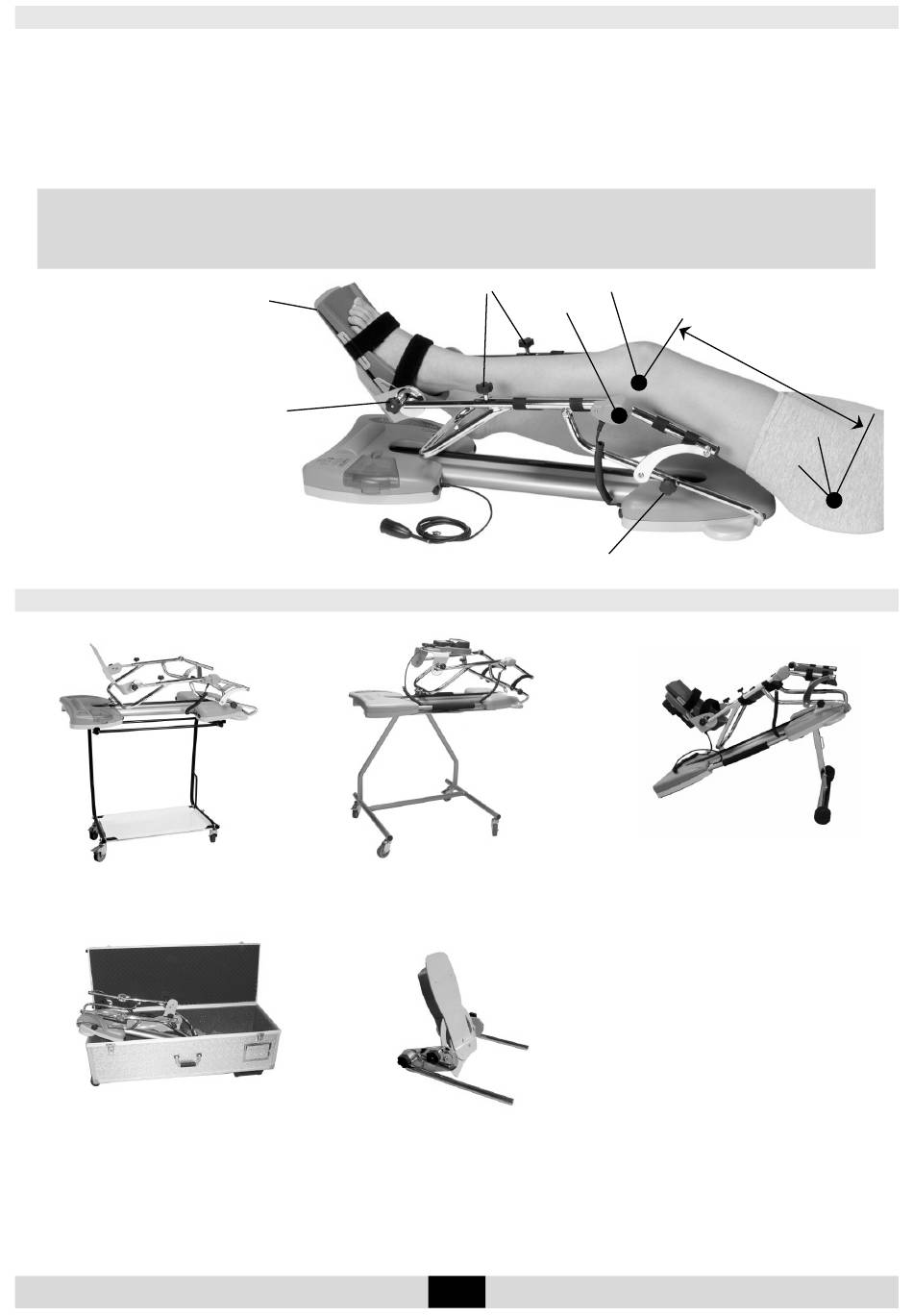

Setting up the patient

See page 3, installing the Device chapter, for the positioning conditions.
Place the unit in a position that will be comfortable for the patient.
- Measure the length of the patient's femur in cm or inches (L); adjust the thigh support to this
measurement using knobs (5).
- Install the patient on the machine.
- Bring the foot plate (3) into contact with the patient's foot, then tighten both buttons (6).
- Adjust the plantar flexion (40°) or the dorsal flexion (30°) of the foot, with the knobs (7).
and the axis of the patient's knee (18) with the axis of articulation (19) of the unit.

Options

Trolley for all CPM
Part number to order:
4655001053
Transport box
Part number to order:
4640001927
Kinetec Prima Advance™
CAUTION
Adjust the axis of the patient's hip (16) with the
"THEORETICAL" axis of rotation (17) of the unit,
3
7
Cart for bed use
Part number to order:
4665003297
Paediatric foot plate
Part number to order:
4670023777
18
6
19
5
EN
L
16
Seat adaptor
Part number to order:
4670024098
17
