Description

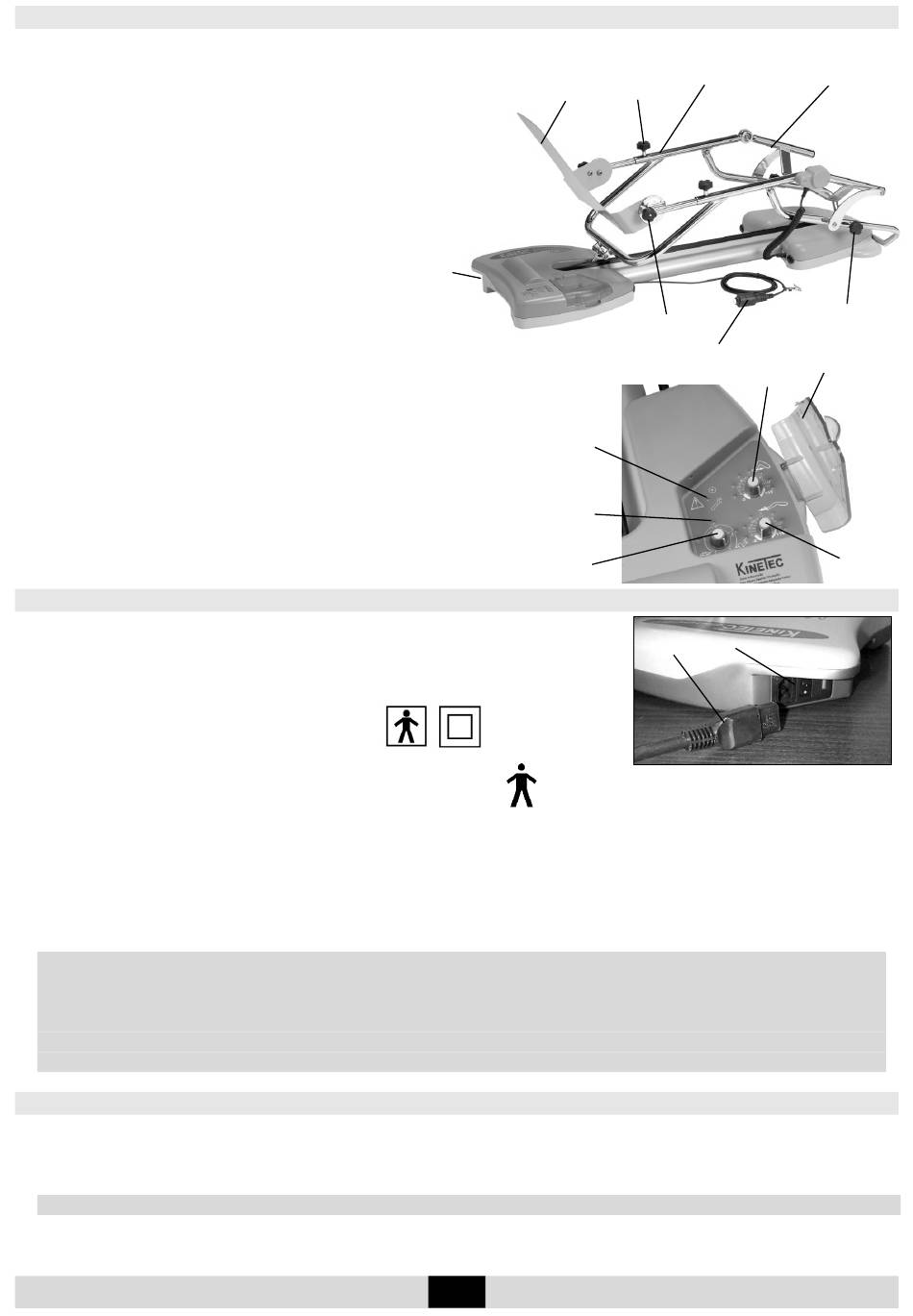

The device Kinetec Prima Advance™ consists of the following components:
1 • Lower limb support.
2 • Thigh support.
3 • Articulated foot plate.
4 • Hand control.
5 • Thigh support setting lock.
6 • Lower limb support setting lock.
7 • Foot plate position setting lock.
8 • ON/OFF switch and fuses.
Control panel
9 • Flexion setting knob.
10 • Extension setting knob.
11 • Speed setting knob.
12 • Fault or power-on indicator.
13 • Setting indicator for visually-impaired people.
14 • Control panel protective cover.
Electrical connection: safety first.
2 versions of electrical protection are available for the device Kinetec
Prima Advance™. The identification label shows which version a machine
is equipped with:
Type BF, Class II devices,
for home use, bear the following symbols:
Type B class I devices,
for use in a professional environment, bear the following symbol:
See page 9 for the meaning of the symbols.
Before connecting the device to the power supply, check that the mains
voltage matches that shown on the identification plate (100-240V~
50/60Hz).
Connect the power supply cable (15).
IMPORTANT
For Type B Class I devices, and to avoid all risks of electric shock, the machine should only be connected
to a power supply that has protective earthing.
To connect the power supply, only use the original cable supplied with the machine.
Check that the cables remain free around the device so that they do not get damaged.
Check that the machine is not damaged, in particular the protective housings.

Procedure to start the machine

Press the ON / OFF switch (8).
The yellow LED (12) on the control panel lights up.
Warning: Always check the motion parameters settings on the control panel before starting the device.
Kinetec Prima Advance™
3
8
12
13
11
EN
1
6
7
4
9
8
15
2
5
14
10
4/11
