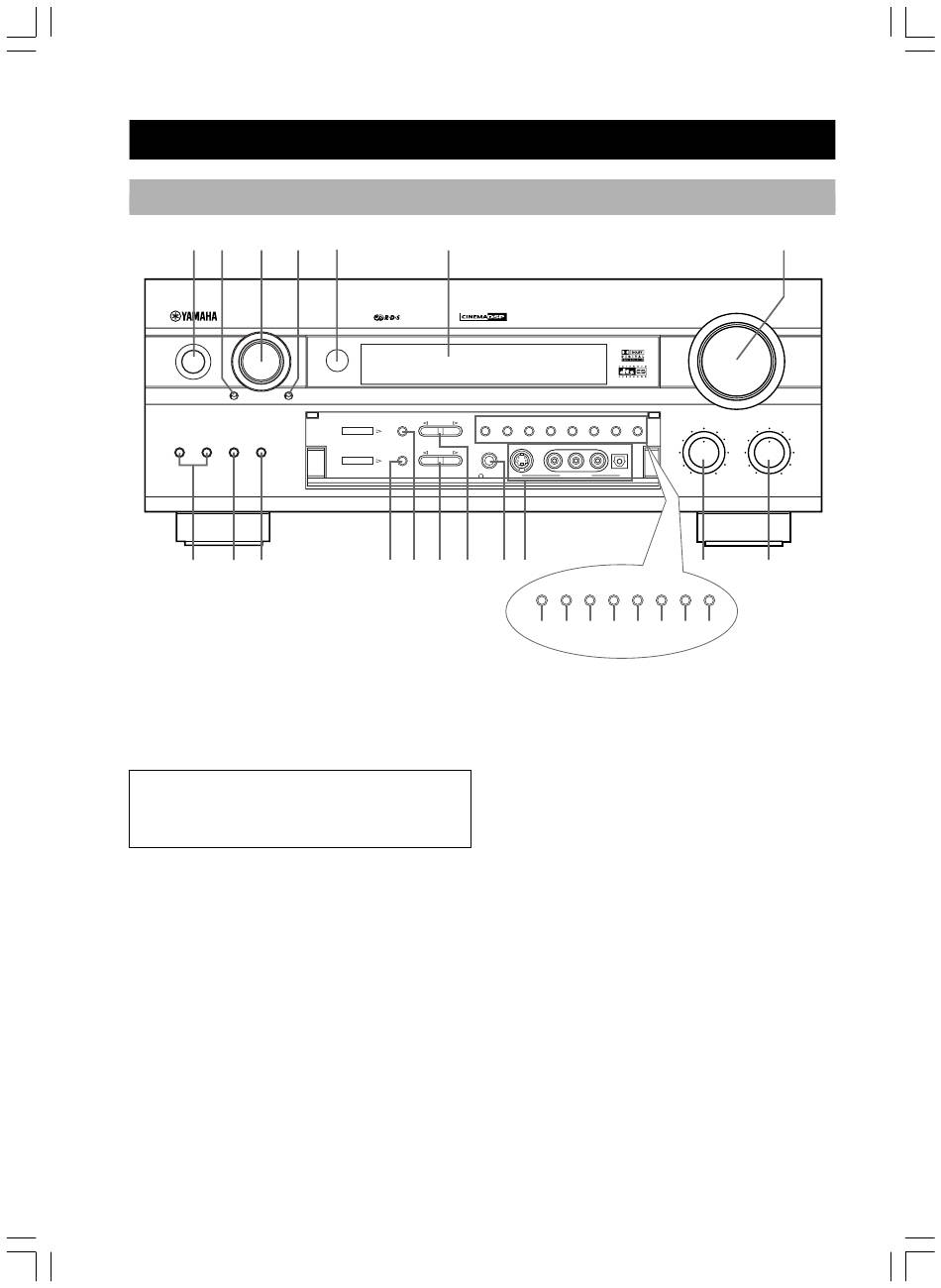

Front Panel

1 2
NATURAL SOUND AV RECEIVER RX-V1300RDS
STANDBY
/ON
6CH
SPEAKERS
BASS PROCESSOR
EXTENSION
A B
8 9 0
1
STANDBY/ON
Turns on and sets this unit in the standby mode. When
you turn on this unit, you will hear a click and there will
be a 4 to 5-second delay before this unit can reproduce
sound.
Standby mode
In this mode, this unit consumes a small amount of
power to receive infrared-signals from the remote
control.
2
6CH (INPUT)
Selects the source connected to the 6CH INPUT jacks.
The source selected by pressing 6CH (INPUT) takes
priority over the source selected with INPUT (or the input
selector buttons on the remote control).
3
INPUT selector
Selects the input source you want to listen to or watch.
4
(INPUT) MODE
Sets the priority for the types of input signals (AUTO,
DTS, ANALOG) to receive when one component is
connected to two or more input jacks of this unit (see
page 28). Priority cannot be set when 6CH INPUT is
selected as the input source.
5
Remote control sensor
Receives signals from the remote control.
4
