MAKING CUTS

This table saw can perform a variety of cuts that are not all
mentioned in this manual. DO NOT attempt to make any cuts
not covered here unless you are thoroughly familiar with the
proper procedures and necessary accessories. Your local
library has many books on table saw usage and specialized
woodworking procedures for your reference.
The blade provided with the saw is a high-quality combination
blade suitable for ripping and cross cut operations. Carefully
check all setups and rotate the blade one full revolution to
assure proper clearance before connecting saw to power
source. Stand slightly to the side of the blade path to reduce
the chance of injury should kickback occur.
WARNING:
Do not use blades rated less than the speed of
this tool. Failure to heed this warning could result
in personal injury.
Use the miter gauge when making cross, miter, bevel, and
compound miter cuts. To secure the angle, lock the miter
gauge in place by twisting the lock knob clockwise. Always
tighten the lock knob securely in place before use.
NOTE: It is recommended that you place the piece to be
saved on the left side of the blade and that you make a test
cut on scrap wood first.
MAKING A CROSS CUT
See Figures 48 - 49.
WARNING:
Using the rip fence as a cutoff gauge when cross
cutting will result in kickback which can cause
serious personal injury.
WARNING:
Make sure the blade guard assembly is installed
and working properly to avoid serious personal
injury.
 Remove the rip fence by lifting the locking lever.
 Set the blade to the correct depth for the workpiece.
 Set the miter gauge to 0° and tighten the lock knob.
 Make sure the wood is clear of the blade before turning
on the saw.
 To turn the saw ON, lift the switch.
 To turn saw OFF, press the switch down.
NOTE: To prevent unauthorized use, remove the switch
key as shown in figure 49.
PLACE RIGHT HAND ON WORKPIECE
AND MITER GAUGE HERE
SWITCH IN LOCKED POSITION
SWITCH ON
 Let the blade build up to full speed before moving the
workpiece into the blade.
 Hold the workpiece firmly and feed the workpiece into
the blade.
NOTE: The hand closest to the blade should be placed
on the miter gauge lock knob and the hand farthest from
the blade should be placed on the workpiece.
 When the cut is made, turn the saw off. Wait for the blade
to come to a complete stop before removing any part of
the workpiece.
32 − English
CROSS CUT
SWITCH OFF
SWITCH
KEY

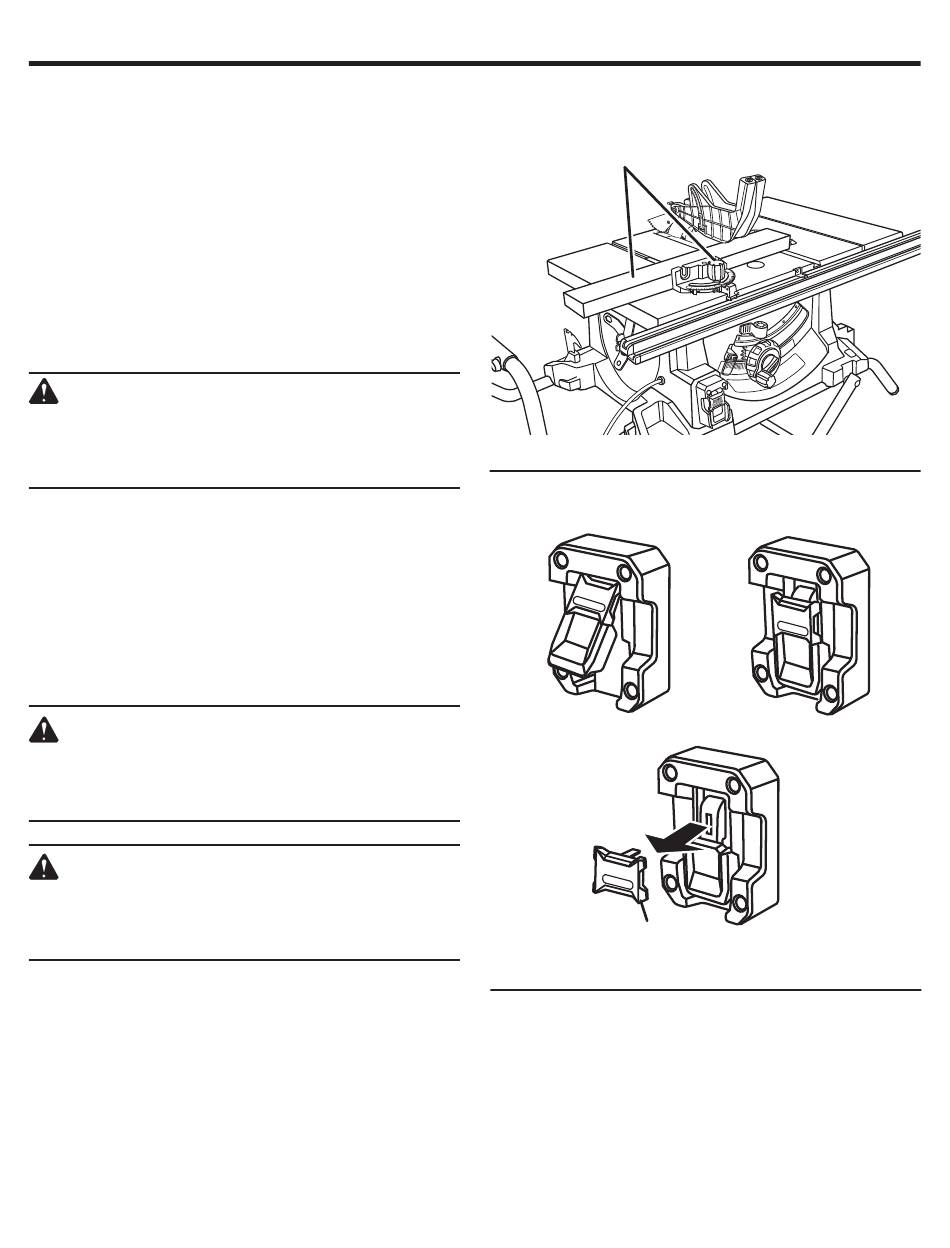

Fig. 48
Fig. 49
