Footplate Adjustment

Adjusting The Footrest
WARNING!
• Do not stand on the footboard! Even if the user is sitting in
the chair, there is still a risk of tipping over and injury.
• When transferring, do not stand on the footboard, there is a
risk of tipping over and injury.

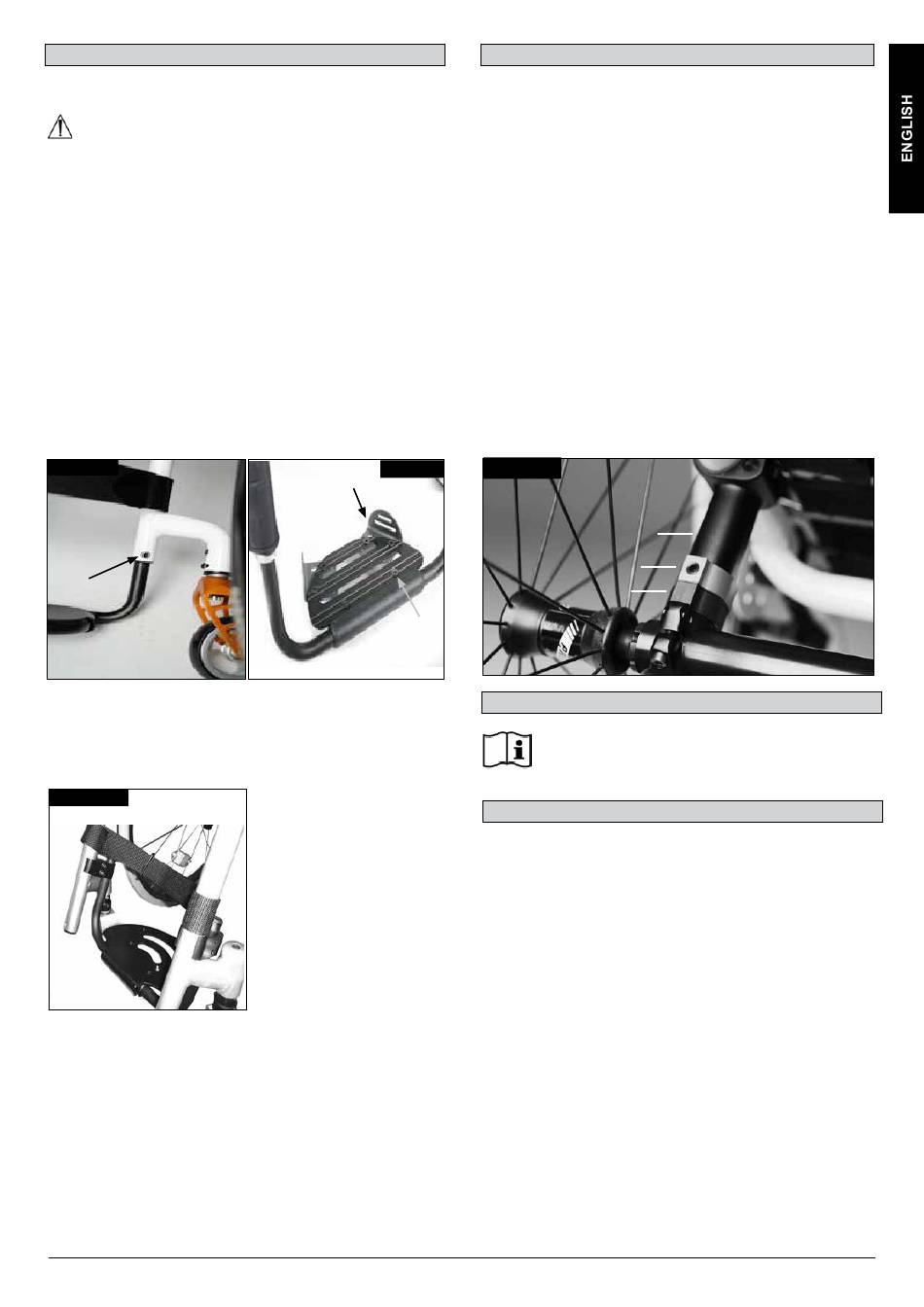

Releasing the screw (1) will allow you to adjust the footrest to
correspond to the length of your lower leg and re-attach the
footrest. The angle of the footrest may be individually adjusted
by loosening screws (2). The side protection (3) on the footrest
prevents the feet slipping off accidentally. Make sure that after
any adjustment work, all screws are tightened correctly (see the
page on torque) (Fig. 4.11 - 4.12).
Fig. 4.11
1
High-mount footrest
The high-mount footrest is fitted on the inner part of the frame
and permits a higher footrest position (Fig. 4.13).
Fig. 4.13
Helium Rev.6.0

Seat

Adjusting the seat height
To adjust the rear seat height release the Allen screws (1) (one
on each side), which fix the clamp to the axle stem (2).
Remove the spacer bracket (3), to adjust the seat height +/- 1
cm. For large adjustments, reduce the length of the axle stem
as required.
Tighten the 2 Allen screws to 7 Nm. (Fig. 4.14).
NOTE:
An adjustment to the castor angle may be necessary when
adjusting the rear seat height.
Seat Sling
To tighten the upholstery, please use the straps below the
upholstery.
Fig. 4.14
Fig. 4.12
3
2

Options - Snoll on

Castors

Castor, Castor adapter, Castor fork
From time to time the wheelchair may veer slightly to the right or
left or the castors may flutter. This may be caused by the
following:
• Forward and/or reverse wheel motion has not been set
properly.
• The castor angle has not been adjusted properly.
• Castor and/or rear wheel air pressure is incorrect; wheels do
not turn smoothly.
The optimum adjustment of the castors is required so that the
wheelchair runs in a straight line.
The castor plates must be re-adjusted, and the wheel locks must
be checked every time the rear wheel position has been altered.
2
1
3
Please see the separate Owners' Manual for details of
the Snoll On accessory.
