Overall View / Preliminary Checks - Key Automation 900CT-201 Manuel D'emploi

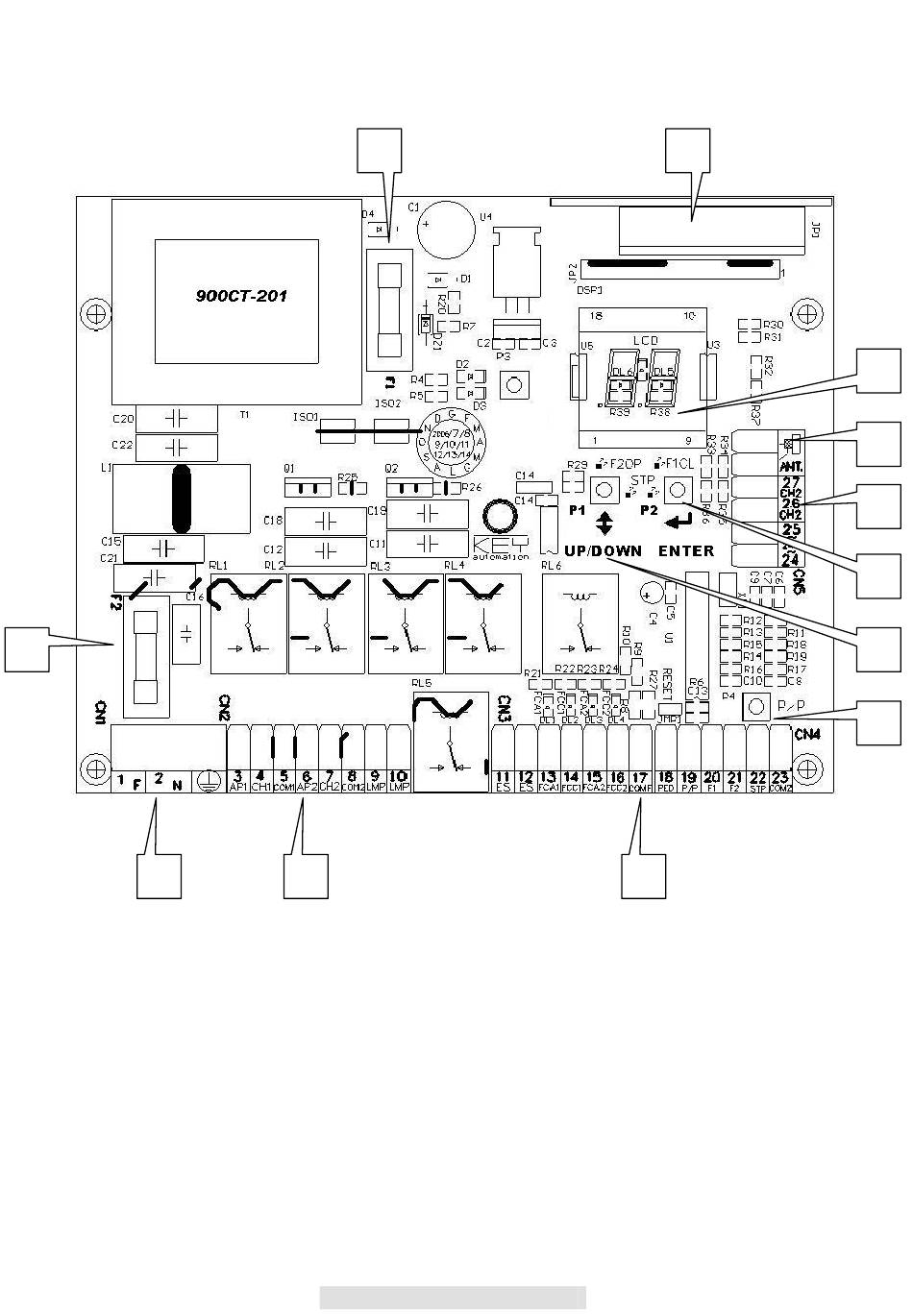

OVERALL VIEW / PRELIMINARY CHECKS

11
1
DESCRIPTION
1. Terminal board for connections of power supply and earth CN1
2. Terminal board for connection of motors / flasher CN2
3. Terminal board for connection of electric lock, limit switch, controls and safeties CN3+CN4
4. Terminal board for connection of 24 V AC accessories power supply and second radio channel CN5
5. Display for signalling functions and safety inputs
6. Connector for snap-in radio receiving card
7. Antenna connector
8. ENTER button for scrolling programming functions
9. UP/DOWN button for function settings (see table)
10. Step/step button P/P
11. Fuse F2 line protection 230V AC 5A delayed
12. Fuse F1 accessory line protection V AC 1.6A
12
2
14
6
3
5
7
4
8
9
10
