INSTALLATION

Specification

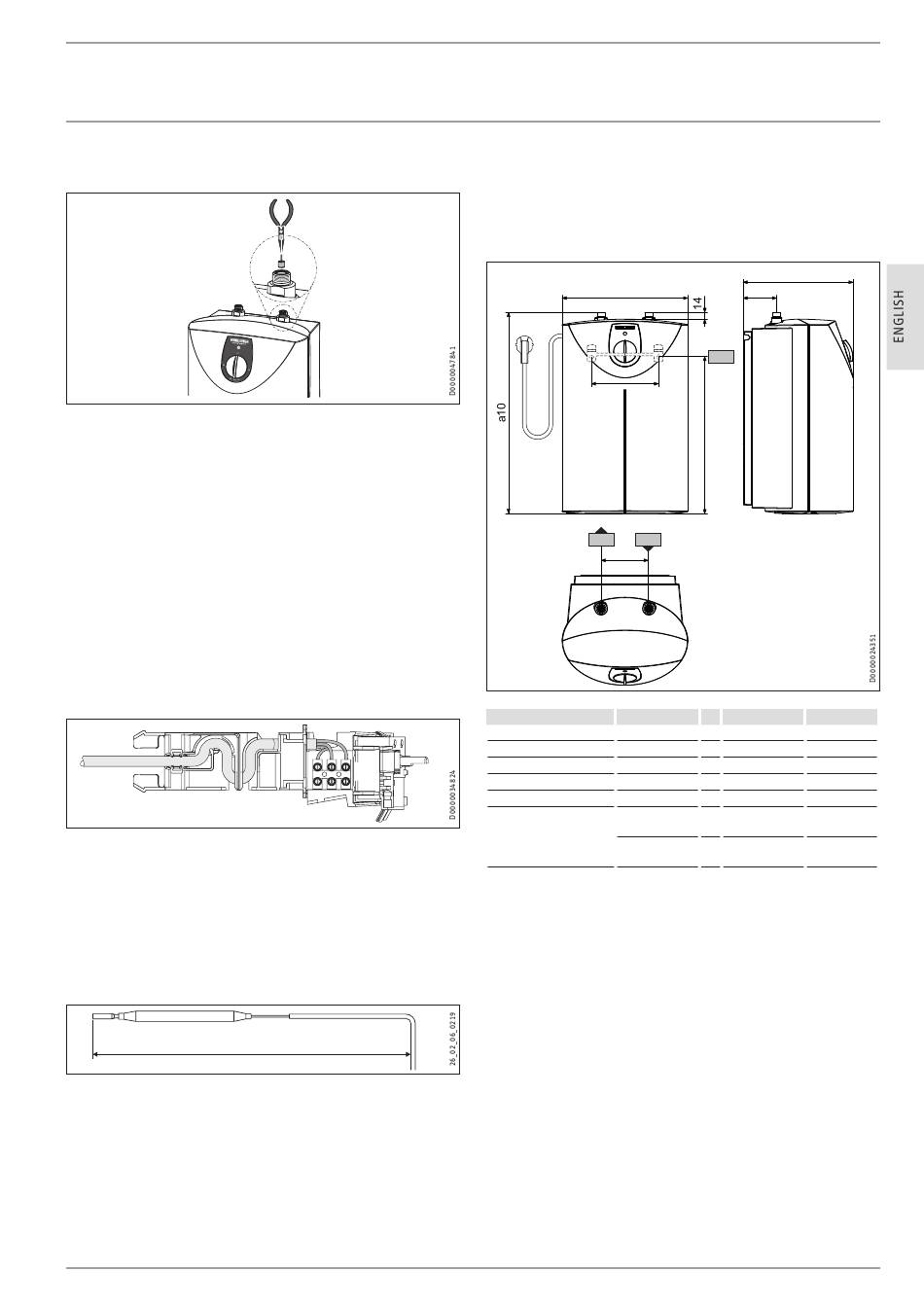

14.4 Cleaning the strainer

f Detach the "cold water inlet" connection. f
f Using pliers, remove the strainer from the "cold water inlet" f
connection.
f Descale or replace the strainer. f

14.5 Checking the earth conductor

f Pull off the temperature selector and the limiting ring. f
f Check the earth conductor (in Germany, e.g. BGV A3) across f
a temperature controller fixing screw and the earth conduc-
tor contact of the power cable.

14.6 Replacing the power cable

The power cable must only be replaced by a qualified contractor
with an original spare part. Alternatively, the H05VV-F3x1.0 cable
may be used.
f Route the power cable along the cable guide. f
14.7 Positioning the temperature sensor in its
protective pipe
f When replacing the temperature controller, guide the tem- f
perature sensor into its protective pipe.
f Secure the temperature sensor in place below the earthed f
plug.
www.stiebel-eltron.com
185
15. Specification

15.1 Dimensions and connections

SNU 5 SL 1 kW | SNU 5 SLi
a20
c06 c01
100
a10 Appliance Height
a20 Appliance Width
a30 Appliance Depth
c01 Cold water Inlet Male thread
c06 DHW outlet Male thread
i13 Wall mounting Height
bracket
Horizontal hole
spacing
a30
70
i13
SNU 5 SL 1 kW SNU 5 SLi
mm 421 421
mm 263 263
mm 230 230
G 3/8 A G 3/8 A
G 3/8 A G 3/8 A
mm 328 328
mm 140 140
SNU 5 | 21
